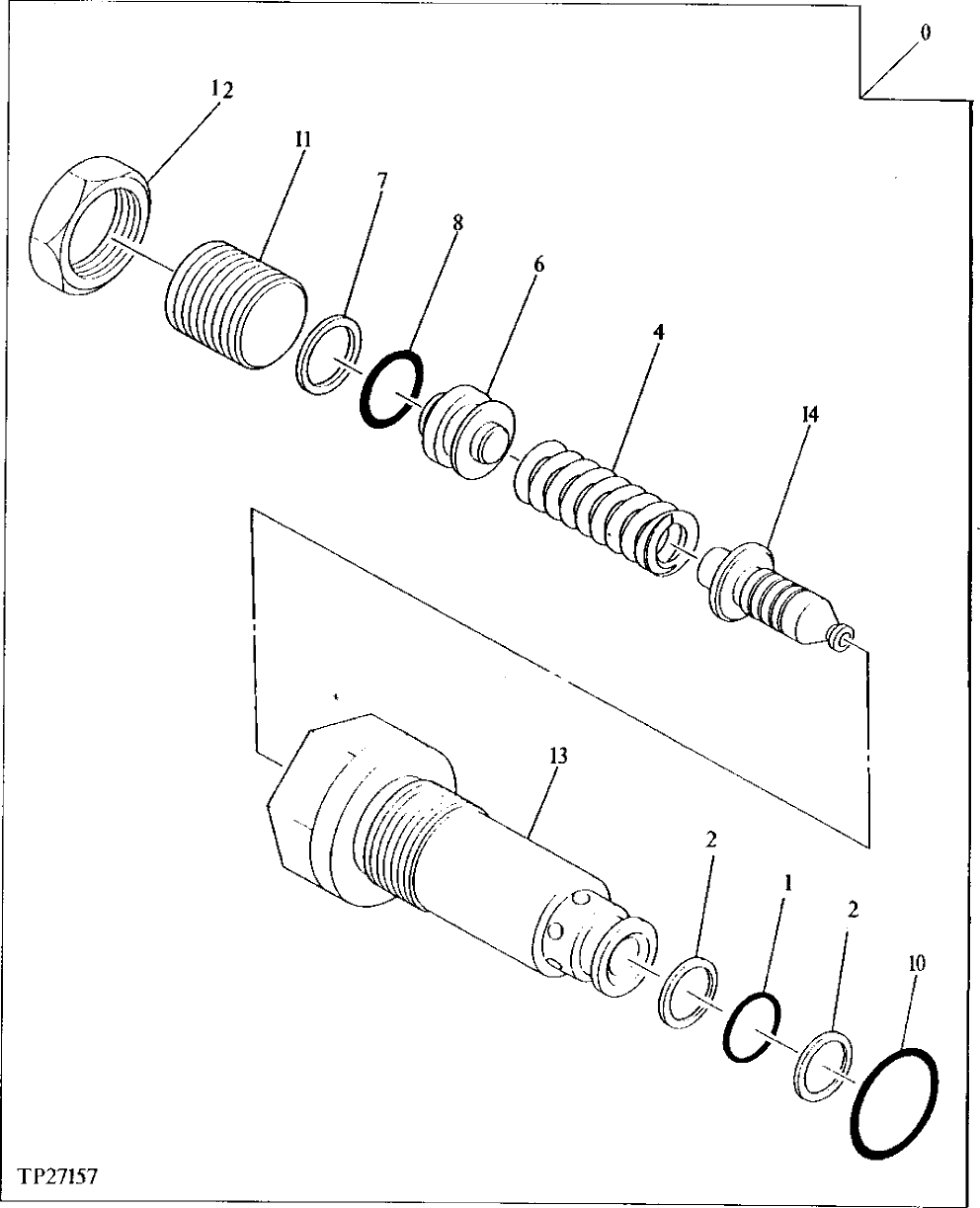

Запчасти John Deere 90D 24 - RELIEF VALVE 260 - AXLES AND SUSPENSION SYSTEMS 2

0

RELIEF VALVE

(USE TH109960 IF AVAILABLE)

2шт.

9080501

PRESSURE RELIEF VALVE

(SUB FOR TH111932)

2шт.

1

CH11570

O-RING

1шт.

2

4038533

BACK-UP RING

(SUB FOR TH100050)

2шт.

4

COMPRESSION SPRING

( T107797 NO LONGER AVAILABLE)

1шт.

6

PLUG

( T107798 NO LONGER AVAILABLE)

1шт.

7

4038533

BACK-UP RING

(SUB FOR TH100050)

1шт.

8

CH11570

O-RING

1шт.

10

AT318035

O-RING

(SUB FOR 4506424, TH100055)

1шт.

11

SET SCREW

( TH100056 NO LONGER AVAILABLE)

1шт.

12

NUT

( TH100057 NO LONGER AVAILABLE)

1шт.

13

RELIEF VALVE

(SUB TH109960 IF AVAILABLE, OR TH111932)

1шт.

14

PISTON

( T107800 NO LONGER AVAILABLE)

1шт.
