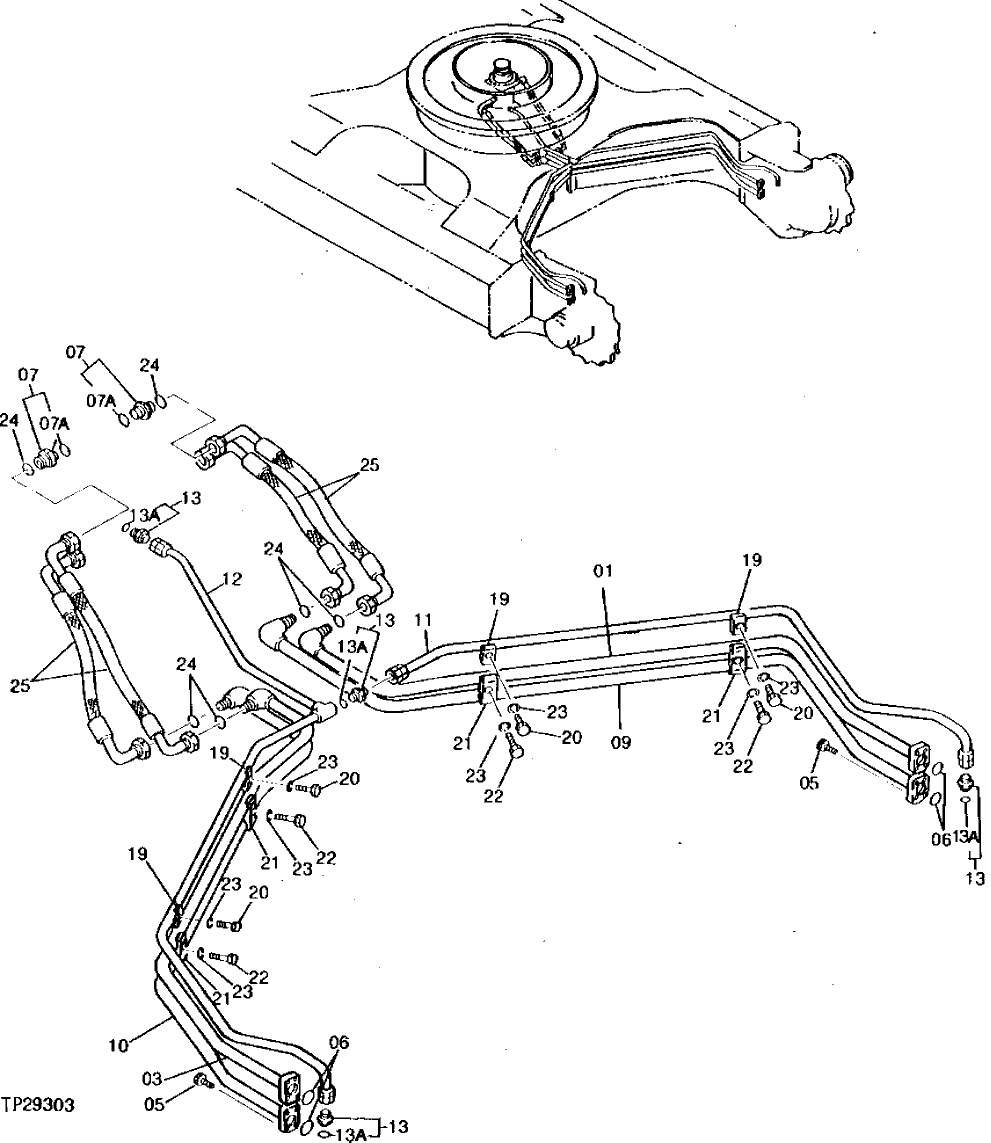

Запчасти John Deere 90D 20 - PROPEL PLUMBING 260 - AXLES AND SUSPENSION SYSTEMS 2

1

8039706

LINE

(SUB FOR TH109785) (RIGHT PROPEL MOTOR FORWARD)

1шт.

3

8039708

LINE

(SUB FOR TH109786) (LEFT PROPEL MOTOR FORWARD)

1шт.

5

M341032

SCREW

(SUB FOR TH101301)

16шт.

6

AT264324

O-RING

(SUB FOR TH100044) (USE IF AVAILABLE)

4шт.

AT264324

O-RING

(SUB FOR T32587, TH100044)

4шт.

7

A853166

ADAPTER FITTING

(SUB FOR AT107392 OR 4189619)

4шт.

7A

AT318035

O-RING

(SUB FOR 4506424, TH100055)

1шт.

9

8039705

LINE

(SUB FOR TH109787) (RIGHT PROPEL MOTOR REVERSE)

1шт.

10

8039707

LINE

(SUB FOR TH109788) (LEFT PROPEL MOTOR REVERSE)

1шт.

11

7017948

LINE

(SUB FOR TH109789) (DRAIN LINE)

1шт.

12

7017949

OIL LINE

(SUB FOR TH109790) (DRAIN LINE)

1шт.

13

4200466

ADAPTER FITTING

(SUB FOR TH108320)

4шт.

13A

CH11570

O-RING

1шт.

19

4190124

CLAMP

(SUB FOR TH108727)

4шт.

20

19M7493

CAP SCREW

M12 X 40

4шт.

21

4189859

CLAMP

(SUB FOR TH109071)

4шт.

22

19M7362

CAP SCREW

M12 X 55

4шт.

19M7361

CAP SCREW

M12 X 50

4шт.

23

12H301

LOCK WASHER

1/2"

8шт.

24

T77858

O-RING

(SUB FOR TH108349)

8шт.

25

TH109783

HYDRAULIC HOSE - FABRICATE

4шт.
