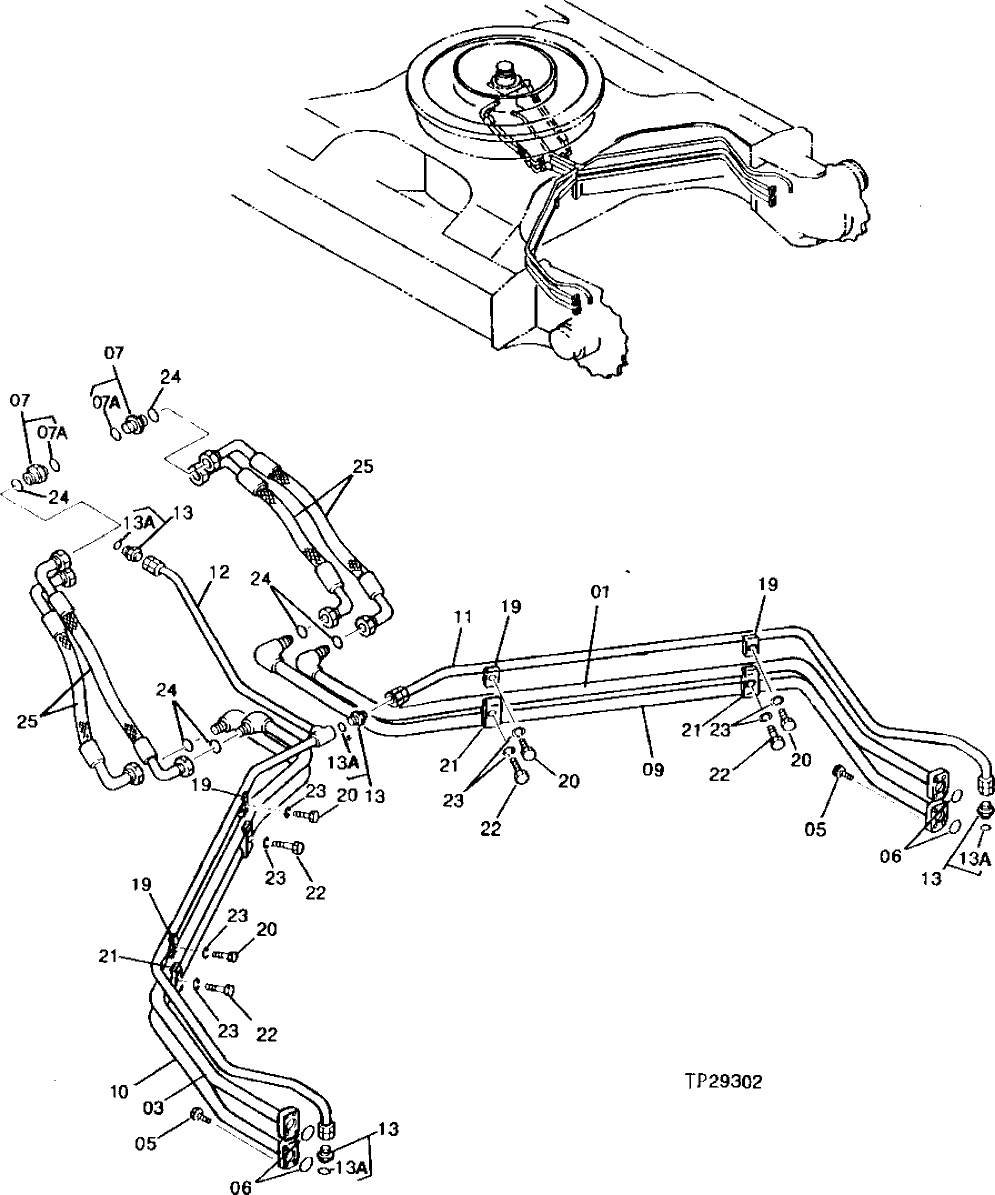

Запчасти John Deere 90D 18 - PROPEL PLUMBING 260 - AXLES AND SUSPENSION SYSTEMS 2

1

8039667

LINE

(SUB FOR TH109777) (RIGHT PROPEL MOTOR FORWARD)

1шт.

3

8039668

LINE

(SUB FOR TH109778) (LEFT PROPEL MOTOR FORWARD)

1шт.

5

M341032

SCREW

(SUB FOR TH101301)

16шт.

6

AT264324

O-RING

(SUB FOR TH100044) (USE IF AVAILABLE)

4шт.

AT264324

O-RING

(SUB FOR T32587, TH100044)

4шт.

7

A853166

ADAPTER FITTING

(SUB FOR AT107392 OR 4189619)

4шт.

7A

AT318035

O-RING

(SUB FOR 4506424, TH100055)

1шт.

9

8039665

LINE

(SUB FOR TH109779) (RIGHT PROPEL MOTOR REVERSE)

1шт.

10

8039666

LINE

(SUB FOR TH109780) (LEFT PROPEL MOTOR REVERSE)

1шт.

11

7016756

LINE

(SUB FOR TH109781) (DRAIN LINE)

1шт.

12

7016757

LINE

(SUB FOR TH109782) (DRAIN LINE)

1шт.

13

4200466

ADAPTER FITTING

(SUB FOR TH108320)

4шт.

13A

CH11570

O-RING

1шт.

19

4190124

CLAMP

(SUB FOR TH108727)

4шт.

20

19M7493

CAP SCREW

M12 X 40

4шт.

21

4189859

CLAMP

(SUB FOR TH109071)

4шт.

22

19M7362

CAP SCREW

M12 X 55

4шт.

19M7361

CAP SCREW

M12 X 50

4шт.

23

12H301

LOCK WASHER

1/2"

8шт.

24

T77858

O-RING

(SUB FOR TH108349)

8шт.

25

TH109783

HYDRAULIC HOSE - FABRICATE

4шт.
