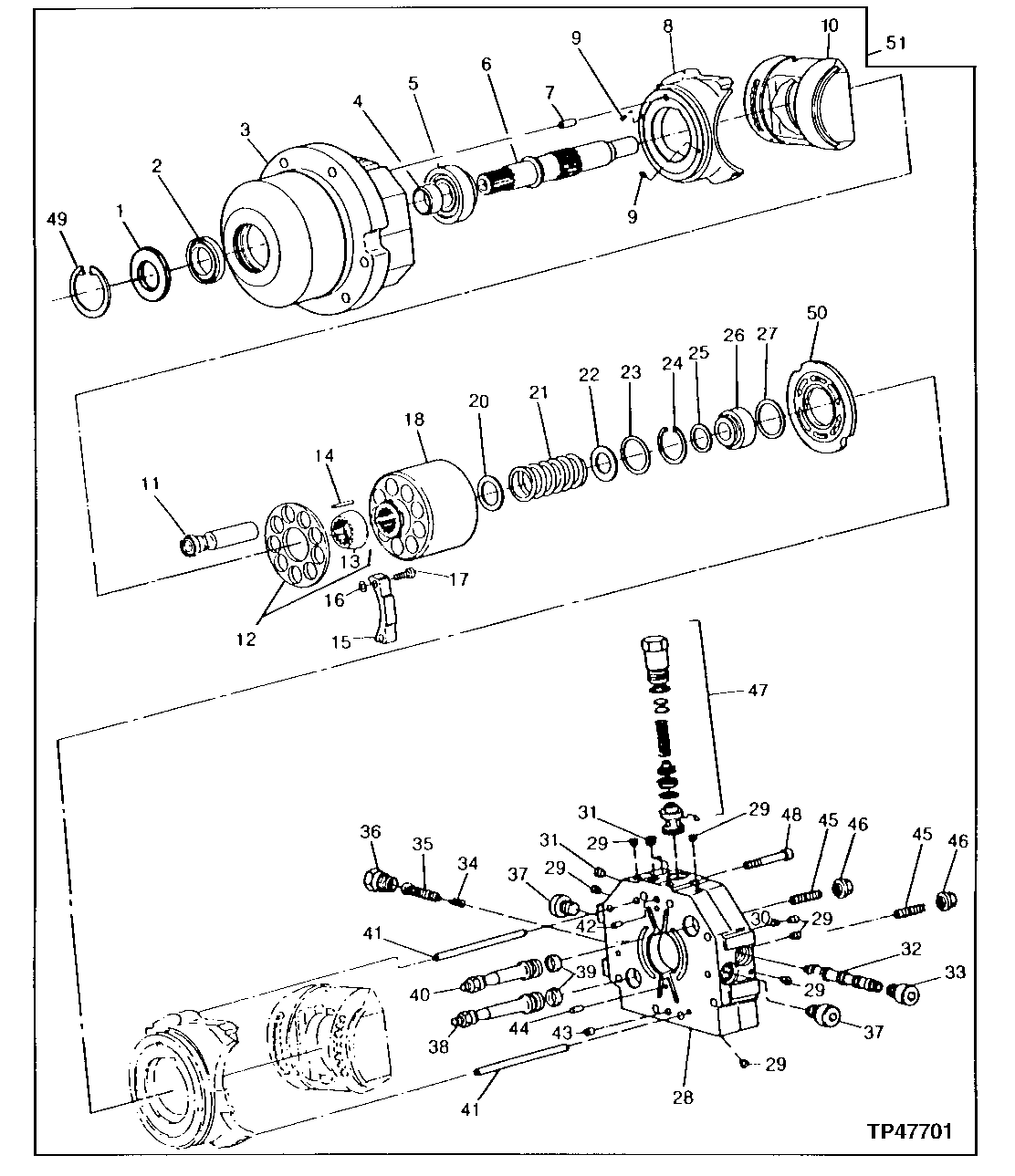

Запчасти John Deere 90D 16 - PROPEL MOTOR 260 - AXLES AND SUSPENSION SYSTEMS 2
№
Артикул
Название
Примечание
Количество
1
40M5099
SNAP RING
(SUB FOR AT108688)
1шт.
2
AT108575
SEAL
1шт.
3
AT108601
HOUSING
1шт.
4
AT108608
BEARING RACE
1шт.
5
AT108574
TAPERED ROLLER BEARING
1шт.
6
AT108607
SHAFT
1шт.
7
T158947
DOWEL PIN
(SUB FOR AT108686 AND T116740)
1шт.
8
AT108609
BEARING
1шт.
9
AT108680
PLUG
3шт.
10
AT108610
CRADLE
1шт.
11
AT108604
PISTON
17шт.
12
AT108606
PLATE
1шт.
13
HUB
(SUB AT108606)
1шт.
14
AT108690
PIN
5шт.
15
AT108625
PLATE
3шт.
16
AT108566
SHIM
ARшт.
AT108567
SHIM
ARшт.
AT108568
SHIM
ARшт.
17
19M7657
SCREW
M8 X 25, (SUB FOR AT108673)
7шт.
18
CYLINDER BLOCK
( T84564 NLA) (SUB FOR AT108605, ALONG WITH T84565)
1шт.
20
AT108564
DISK
1шт.
21
AT108572
SPRING
1шт.
22
AT108565
DISK
1шт.
23
24M7221
SHIM
0.300 MM (0.012") (SUB FOR AT108685)
1шт.
24
U14128
SNAP RING
(SUB FOR AT108687)
1шт.
25
AT108569
SNAP RING
1шт.
26
AT108573
TAPERED ROLLER BEARING
1шт.
27
AT128437
SHIM KIT
(INCLUDES VARIOUS SHIMS- COMBINE TO FIT)
1шт.
28
AT108602
HOUSING
1шт.
29
15M7032
PIPE PLUG
25шт.
30
AT108560
ORIFICE
1шт.
31
15M7022
DRAIN PLUG
(SUB FOR AT108682)
5шт.
32
AT108614
PISTON
1шт.
33
AT106386
FITTING PLUG
(SUB FOR AT108683)
5шт.
34
AT108570
SPRING
1шт.
35
AT108613
GUIDE
1шт.
36
AT108577
REDUCER
1шт.
37
AT106386
FITTING PLUG
(SUB FOR AT108683)
5шт.
38
AT108611
PISTON
1шт.
39
AT108579
SEAL
3шт.
40
AT108600
PISTON
1шт.
41
AT108603
TUBE
3шт.
42
44M7071
PIN
(SUB FOR AT108585)
1шт.
43
DOWEL PIN
( T74532 NLA)
1шт.
44
AT108691
PIN
10 X 14 MM (0.394" X 0.551")
1шт.
45
AT108679
BOLT
11.786 X 5.019 MM (0.464" X 0.198")
3шт.
46
T107964
NUT
M12
3шт.
47
AT108656
PRESSURE RELIEF VALVE
1шт.
48
AT108677
CAP SCREW
M14 X 80
15шт.
49
SNAP RING
( AT108745 NO LONGER REQUIRED)
1шт.
50
PORT PLATE
( T84565 NLA) (SUB FOR AT108605 ALONG WITH T84564)
1шт.
51
AT108557
HYDRAULIC MOTOR
2шт.
Выбрано товаров: 52
