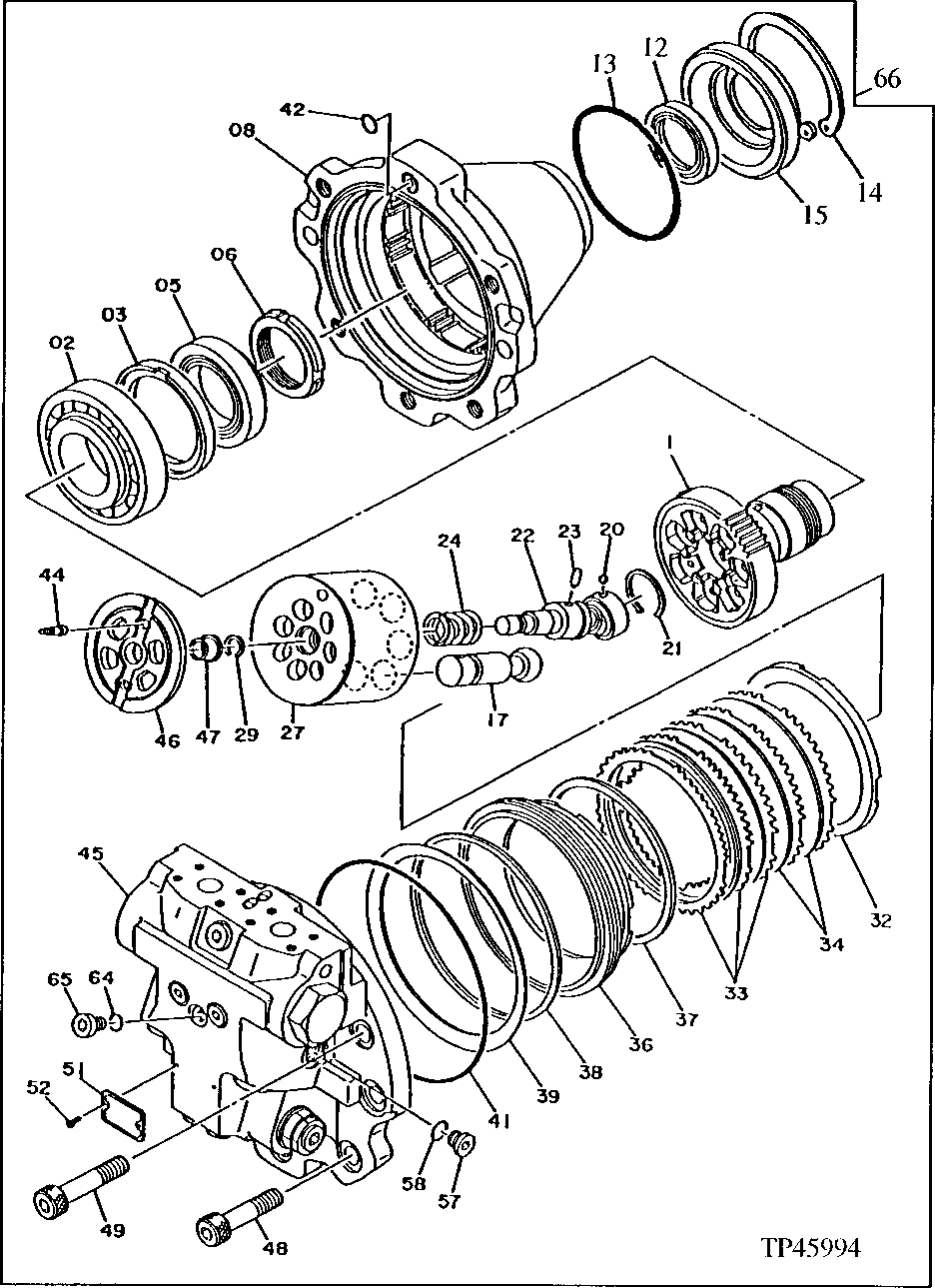

Запчасти John Deere 90D 14 - PROPEL MOTOR 260 - AXLES AND SUSPENSION SYSTEMS 2

1

2021605

DRIVE DISK

OUTPUT SHAFT, (SUB FOR T107752)

1шт.

2

JD10429

TAPERED ROLLER BEARING

1шт.

3

3037402

SPACER

(SUB FOR T107754)

1шт.

4222980

SPACER

(SUB FOR TH111930)

1шт.

5

JD10428

TAPERED ROLLER BEARING

1шт.

6

4178173

NUT

M60, (SUB FOR T107755)

1шт.

8

1010294

HOUSING

(SUB FOR T107757)

1шт.

1012429

HOUSING

(SUB FOR TH111928)

1шт.

12

T225266

SEAL

(SUB FOR T107759, TH112064, AT213847 OR 4333170)

1шт.

13

4178393

O-RING

129.400 X 3.100 MM (5.094" X 0.122") (SUB FOR T107760) (USE WITH TH109724 OR AT217331)

1шт.

14

40M7231

SNAP RING

(SUB FOR TH100030)

1шт.

4116290

SNAP RING

(SUB FOR TH111929)

1шт.

15

4173923

COVER

(SUB FOR T107758)

1шт.

17

PISTON

(SUB AT154837) ( T107762 NO LONGER AVAILABLE)

7шт.

8050658

PISTON

(SUB FOR AT131225 OR T107762) (SUB FOR AT154837)

7шт.

20

L38718

BALL

6 MM (0.236")

1шт.

21

4184778

SNAP RING

(SUB FOR T107764)

1шт.

22

8035127

SHAFT

(SUB FOR T107765)

1шт.

23

4198956

PIN FASTENER

5 X 10 MM (0.197" X 0.394") (SUB FOR T107766)

1шт.

24

4179181

COMPRESSION SPRING

(SUB FOR T107767)

1шт.

27

2021642

ROTOR

(SUB FOR T107768)

1шт.

29

4188857

SNAP RING

(SUB FOR T107769)

1шт.

32

4189657

SPACER

(SUB FOR T107770)

1шт.

33

3032432

PLATE

(SUB FOR T107771)

5шт.

34

3037401

PLATE

(SUB FOR T107776)

4шт.

36

3035563

PISTON

(SUB FOR T107772)

1шт.

37

4232766

RING

(SUB FOR T107773)

1шт.

38

4232767

RING

(SUB FOR T107774)

1шт.

39

3032487

DISK SPRING

169 X 198 X 2.500 MM (6.654" X 7.795" X 0.098") (SUB FOR T107775)

1шт.

41

4184698

O-RING

208.400 X 3.100 MM (8.205" X 0.122") (SUB FOR T107777)

1шт.

42

T111819

O-RING

14.800 X 2.400 MM (0.583" X 0.094") (SUB FOR TH106167)

1шт.

44

4177927

PIN

(SUB FOR T107780)

2шт.

45

9090261

FLOW CONTROL HYD. VALVE

(SUB FOR TH109725)

1шт.

9083456

FLOW CONTROL HYD. VALVE

(SUB FOR TH111917)

1шт.

46

3041792

PLATE

(SUB FOR TH111899)

1шт.

47

4177926

BUSHING

(SUB FOR T107779)

1шт.

48

19M8490

SCREW

M16 X 40, (SUB FOR T107778)

3шт.

49

19M8490

SCREW

M16 X 40

2шт.

19M8445

SCREW

M16 X 45

2шт.

51

3037602

IDENTIFICATION PLATE

(SUB FOR TH109961)

1шт.

52

37H99

SCREW

2.540 X 6.350 MM (0.100" X 1/4")

2шт.

57

PLUG

(SUB 15M7036) ( T107751 OR 0309805 NO LONGER AVAILABLE FOR SERVICE)

1шт.

15M7036

DRAIN PLUG

(SUB FOR 4092534, 4217653, TH109285 OR 0309805) (ALSO ORDER CH11570)

1шт.

58

CH11570

O-RING

1шт.

64

M800650

PACKING

1шт.

65

4208977

DRAIN PLUG

(SUB FOR TH111351)

1шт.

66

9073496EX

HYDRAULIC MOTOR

(SUB FOR TH109724) (SUB FOR AT217331) (REMANUFACTURED)

1шт.

9086379EX

HYDRAULIC MOTOR

(SUB FOR TH111998) (SUB FOR AT217332) (REMANUFACTURED)

1шт.
