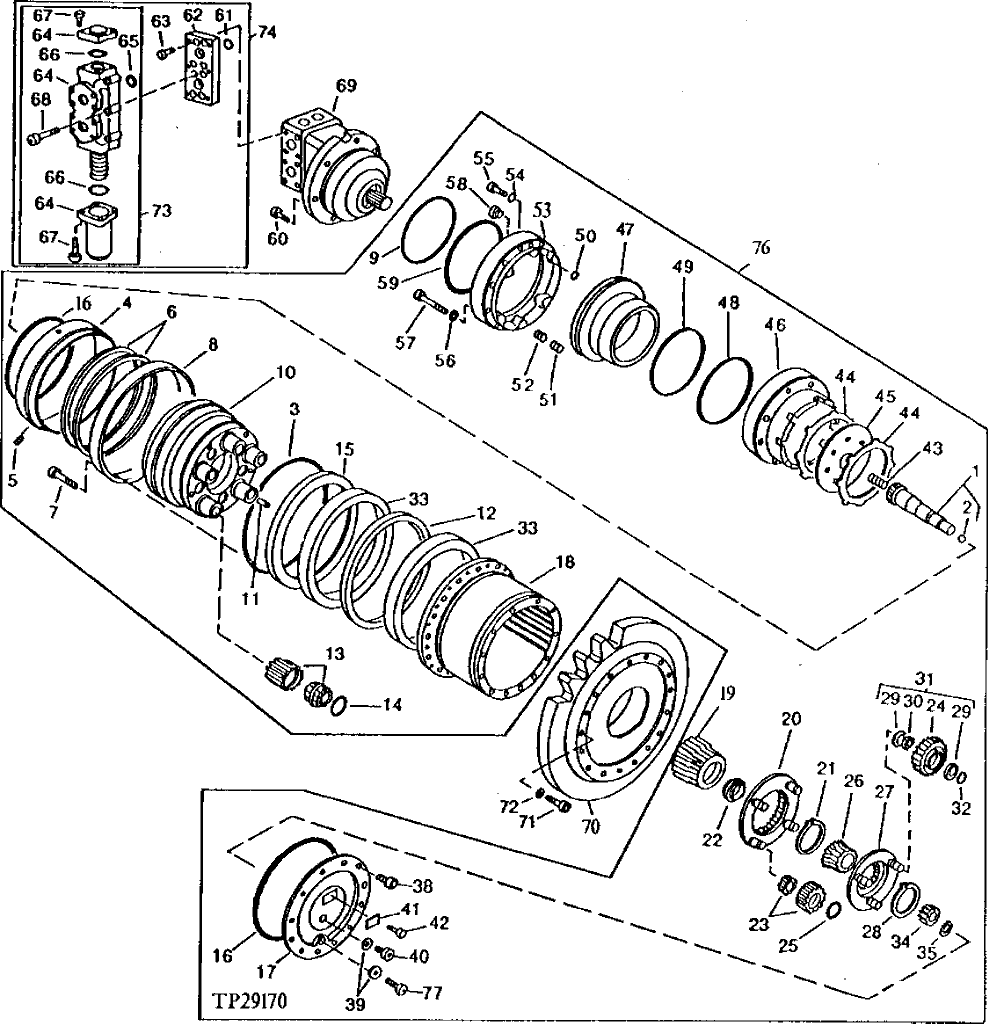

Запчасти John Deere 90D 12 - PROPEL DRIVE, COUNTERBALANCE VALVE AND MOTOR 260 - AXLES AND SUSPENSION SYSTEMS 2

38

SCREW

( 19M8338 NLA)

12шт.

39

51M4240

SEALING RING

(SUB FOR T132925)

2шт.

40

T132926

PLUG

1шт.

41

SERIAL NUMBER PLATE

1шт.

42

SCREW

2шт.

43

T108137

COMPRESSION SPRING

1шт.

44

T108138

BRAKE DISK

2шт.

45

T108139

BRAKE DISK

1шт.

46

T138868

CYLINDER

(SUB FOR T114366, ALONG WITH TWO 19M8127 SCREWS)

1шт.

47

T114367

PISTON

1шт.

48

AT130856

SEAL

(SUB FOR T108140)

1шт.

49

AT130855

SEAL

(SUB FOR T108141)

1шт.

50

T108142

O-RING

6 X 2 MM (0.236" X 0.079")

2шт.

51

T114368

SPRING

14шт.

52

T114369

SPRING

22шт.

53

T138869

FLANGE

(SUB FOR T114370)

1шт.

54

T24553

WASHER

8 X 12 X 1.500 MM (0.315" X 0.512" X 0.059")

4шт.

55

19M8123

SCREW

M8 X 45

4шт.

56

T24553

WASHER

8 X 12 X 1.500 MM (0.315" X 0.512" X 0.059")

8шт.

57

SCREW

( 19M8437 NLA)

8шт.

58

AT112799

FITTING PLUG

1шт.

59

T108121

O-RING

304.394 X 3.531 MM (11-63/64" X 0.139")

1шт.

60

19M8395

SCREW

M12 X 40

6шт.

61

T72216

O-RING

37.694 X 3.531 MM (1-31/64" X 0.139") (SUB FOR AT108583)

2шт.

62

AT108612

PLATE

1шт.

63

AT108676

BOLT

M14 X 40

8шт.

64

PLATE

(SUB AT125432)

1шт.

65

R77044

RING

28.169 X 3.531 MM (1-7/64" X 0.139") (SUB FOR AT108582)

2шт.

66

T72221

O-RING

47.219 X 3.531 MM (1-55/64" X 0.139") (SUB FOR AT108584)

2шт.

67

19M8448

SCREW

M12 X 35, (SUB FOR AT108674)

8шт.

68

19M8395

SCREW

M12 X 40, (SUB FOR AT108675)

6шт.

69

AT108557

HYDRAULIC MOTOR

1шт.

70

AT108678

CHAIN SPROCKET

2шт.

71

T125046

BOLT

M20 X 150

16шт.

72

12M7070

LOCK WASHER

20 MM (0.787")

16шт.

73

AT125432

HYD ACTUATED CONTROL VALVE

1шт.

74

AT108772

HYD ACTUATED CONTROL VALVE

COUNTERBALANCE

2шт.

76

DRIVE

(SUB FOR AT108757) ( AT139760 NLA, SUB COMPONENTS)

2шт.

77

PLUG

( AT108740 NLA)

1шт.
