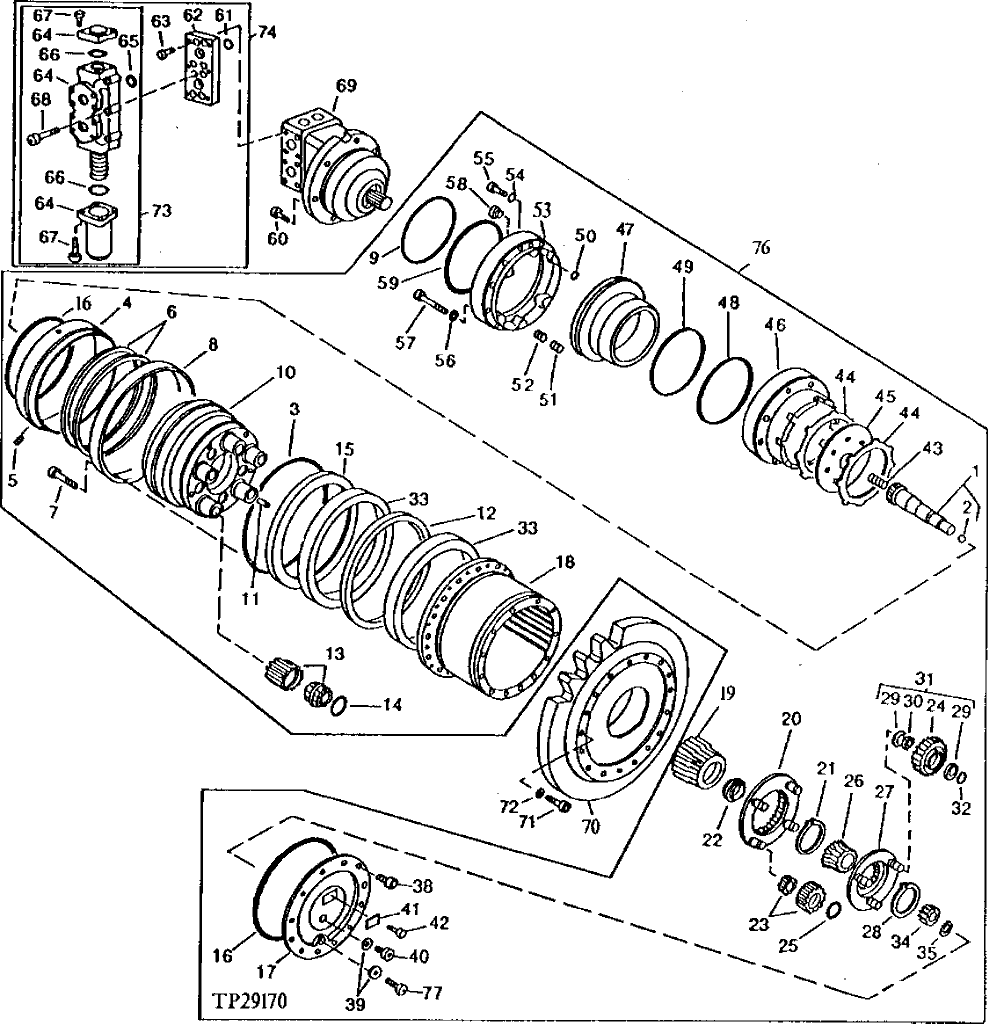

Запчасти John Deere 90D 10 - PROPEL DRIVE, COUNTERBALANCE VALVE AND MOTOR 260 - AXLES AND SUSPENSION SYSTEMS 2

1

SHAFT

( AT86912 NLA)

1шт.

2

BALL

( L38741 NLA)

1шт.

3

O-RING

( AT108755 NLA)

1шт.

4

RETAINER

( AT108734 NLA)

1шт.

5

22M7104

SET SCREW

M12 X 25

4шт.

6

SEAL

( AT114904 NLA)

2шт.

7

19M8580

SCREW

M12 X 50

8шт.

8

T124444

RETAINER

1шт.

9

T108143

O-RING

1шт.

10

PLANETARY ASSEMBLY

(SUB AT139760)

1шт.

11

MAGNET

( T107890 NLA)

2шт.

12

BEARING

(SUB AT139760)

1шт.

13

MOUNTING PARTS

( AT86900 NLA)

5шт.

14

40M7166

SNAP RING

5шт.

15

BEARING

(SUB AT139760)

1шт.

16

T108135

O-RING

2шт.

17

COVER

( AT108739 NLA)

1шт.

18

RING GEAR

(SUB AT139760)

1шт.

19

T108127

SUN GEAR

1шт.

20

T108128

PLANET PINION CARRIER

1шт.

21

40M7125

SNAP RING

1шт.

22

T108129

THRUST WASHER

1шт.

23

MOUNTING PARTS

( AT86901 NLA)

4шт.

24

GEAR

(SUB AT114959)

1шт.

25

40M7058

SNAP RING

4шт.

26

T108131

SUN GEAR

1шт.

27

T108132

PLANET PINION CARRIER

1шт.

28

40M7158

SNAP RING

1шт.

29

RING

( T107865 NLA)

2шт.

30

BEARING

(SUB AT114959)

1шт.

31

MOUNTING PARTS

( AT114959 NLA)

3шт.

32

40M7084

SNAP RING

3шт.

33

BEARING

(SUB AT139760)

2шт.

34

T108134

SUN GEAR

1шт.

35

40M7062

SNAP RING

(SUB FOR T132927)

1шт.
