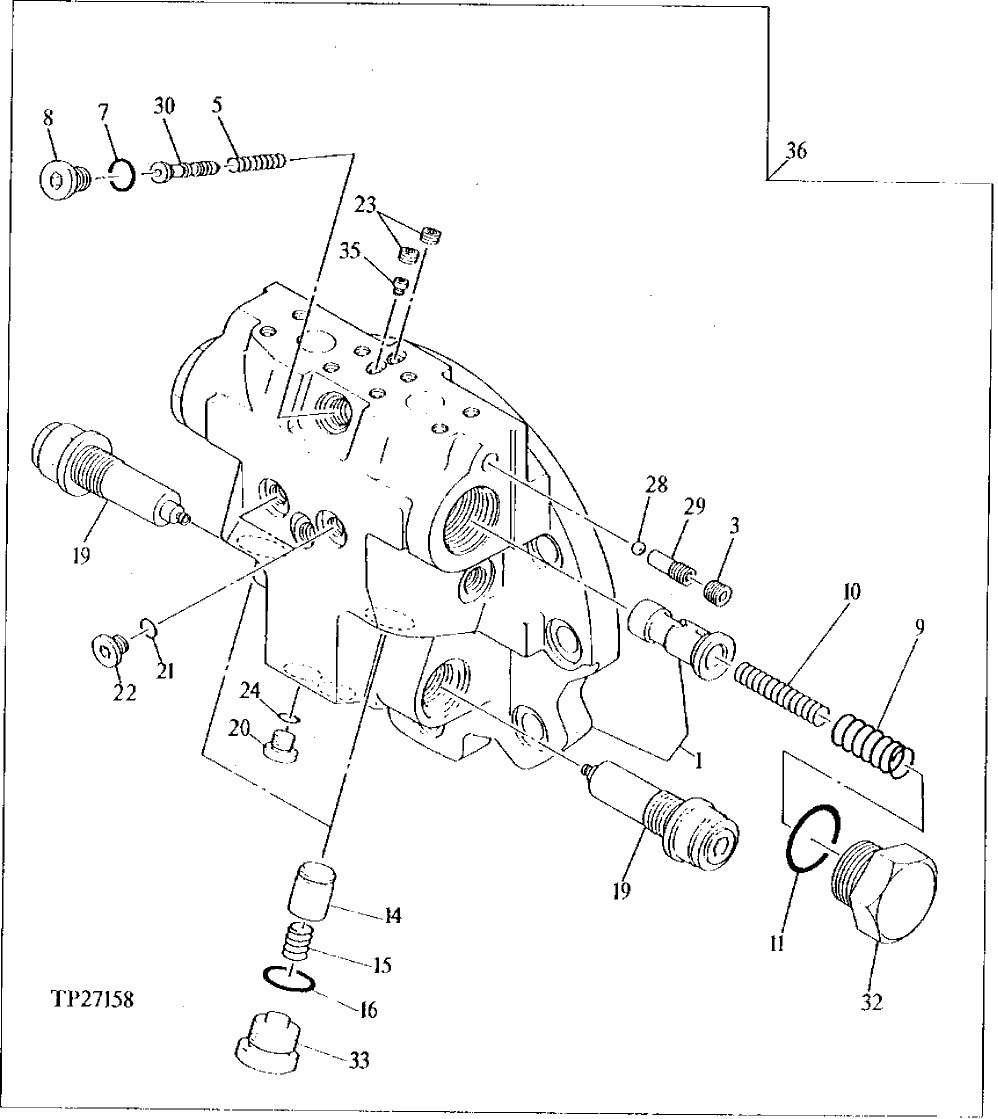

Запчасти John Deere 90D 6 - BRAKE VALVE 260 - AXLES AND SUSPENSION SYSTEMS 2

1

VALVE

(SUB TH109725)

1шт.

VALVE

(SUB TH111917)

1шт.

3

94-2011

FITTING PLUG

(SUB FOR TH100434)

1шт.

5

4185136

SPRING

(SUB FOR T107783)

1шт.

7

CH11570

O-RING

1шт.

8

15M7036

DRAIN PLUG

1шт.

9

4180687

SPRING

(SUB FOR T107785)

2шт.

10

4180688

COMPRESSION SPRING

(SUB FOR T107786)

2шт.

11

T110441

O-RING

(SUB FOR T107787)

2шт.

14

4174629

POPPET

(SUB FOR T107788)

2шт.

15

4174072

SPRING

(SUB FOR T107789)

2шт.

16

AT318035

O-RING

(SUB FOR 4506424, TH100055)

2шт.

19

RELIEF VALVE

(USE TH109960 IF AVAILABLE)

2шт.

9080501

PRESSURE RELIEF VALVE

(SUB FOR TH111932)

2шт.

20

94-2011

FITTING PLUG

(SUB FOR TH100434)

2шт.

4208977

DRAIN PLUG

(SUB FOR TH111351)

2шт.

21

M800650

PACKING

2шт.

22

4208977

DRAIN PLUG

(SUB FOR T107790) (SUB FOR TH111351)

2шт.

23

15H560

PIPE PLUG

1/16"

2шт.

24

M800650

PACKING

(USE WITH TH111351)

2шт.

28

R26552

BALL

1шт.

29

4192229

VALVE SEAT

(SUB FOR T107792)

1шт.

30

4190670

VALVE SPOOL

(SUB FOR T107793)

1шт.

32

4195070

FITTING PLUG

(SUB FOR T107794)

2шт.

33

4195071

FITTING PLUG

(SUB FOR T107795)

2шт.

35

4200879

ORIFICE

(SUB FOR TH109128)

1шт.

36

9090261

FLOW CONTROL HYD. VALVE

(SUB FOR TH109725)

1шт.

9083456

FLOW CONTROL HYD. VALVE

(SUB FOR TH111917)

1шт.
