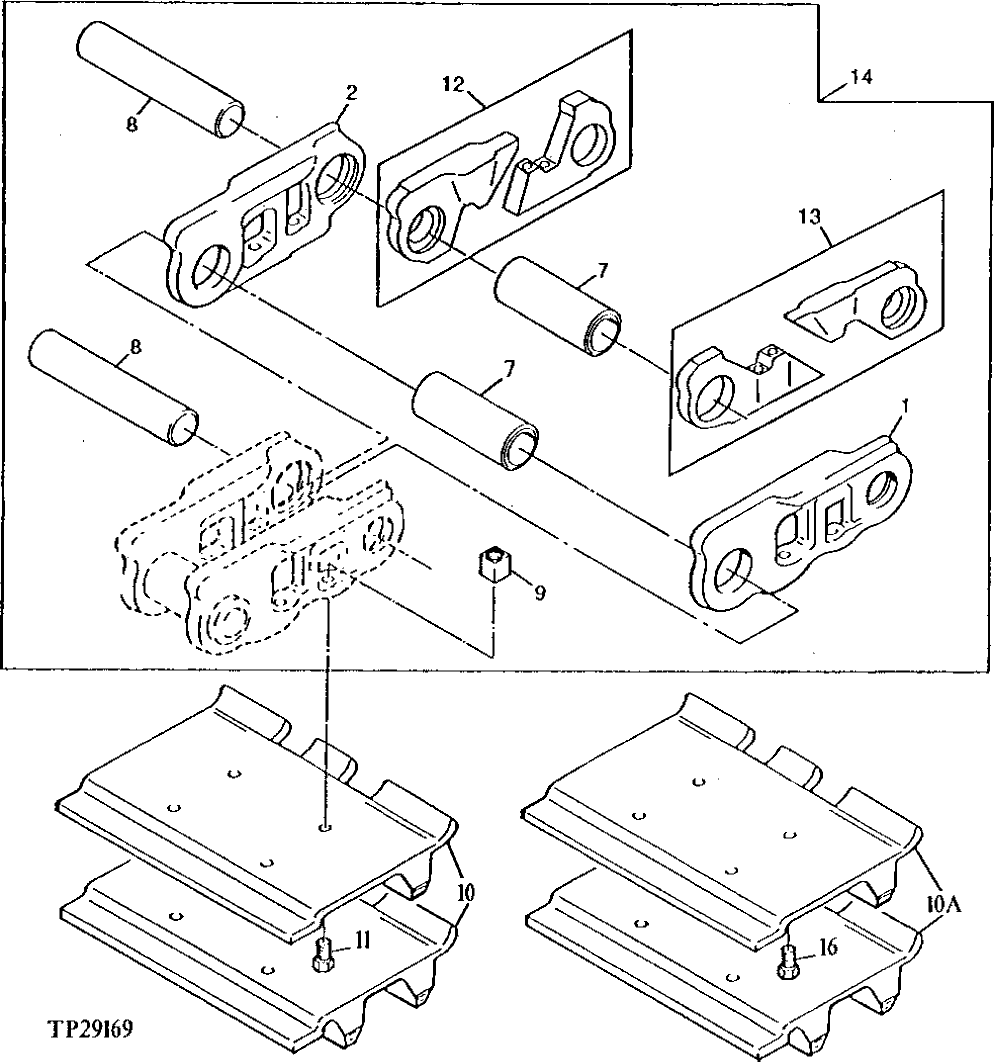

Запчасти John Deere 90D 30 - 793D TRACK 130 - TRACKS 1

1

STRUTTED LINK-RH

(SUB FOR AT108642) ( T67653 NLA) LEFT-HAND

89шт.

2

STRUTTED LINK-LH

(SUB FOR AT108641) ( T67654 NLA) RIGHT-HAND

89шт.

7

BUSHING

( AT108593 NLA)

87шт.

8

PIN

( AT108588 NLA)

87шт.

9

T138903

NUT

(SUB FOR AT108591, ALONG WITH T59867, THIS APPLICATION) (COUNTERBORE INSTALLED TOWARD JOINT)

176шт.

10

AT108649

SINGLE BAR SHOE

SINGLE GROUSER, (600 MM - 24 INCH)

44шт.

AT108643

DOUBLE BAR SHOE

DOUBLE GROUSER, (600 MM - 24 INCH)

44шт.

DOUBLE BAR SHOE

DOUBLE GROUSER, (SUB FOR AT108652) (800 MM - 31 INCH)

44шт.

10A

MASTER DOUBLE BAR SHOE

(MASTER SHOE NO LONGER USED FOR THIS APPLICATION)

1шт.

11

T59867

BOLT

(SUB FOR AT108586, ALONG WITH T138903, THIS APPLICATION)

176шт.

12

AT197051

MASTER TRACK LINK-SPLIT-RH

(SUB FOR AT132894 OR AT172482)

1шт.

13

AT197053

MASTER TRACK LINK-SPLIT-RH

(SUB FOR AT132895 OR AT172484)

1шт.

14

TRACK CHAIN W/O SHOES

(SUB AT131232) ( AT140909 NO LONGER AVAILABLE)

1шт.

16

T73593

MASTER TRACK BOLT

(MASTER)

4шт.
