Запчасти John Deere 90D 27C - REPLACEMENT 51 LINK TRACK CHAIN, SNAP RING MASTER 130 - TRACKS 1

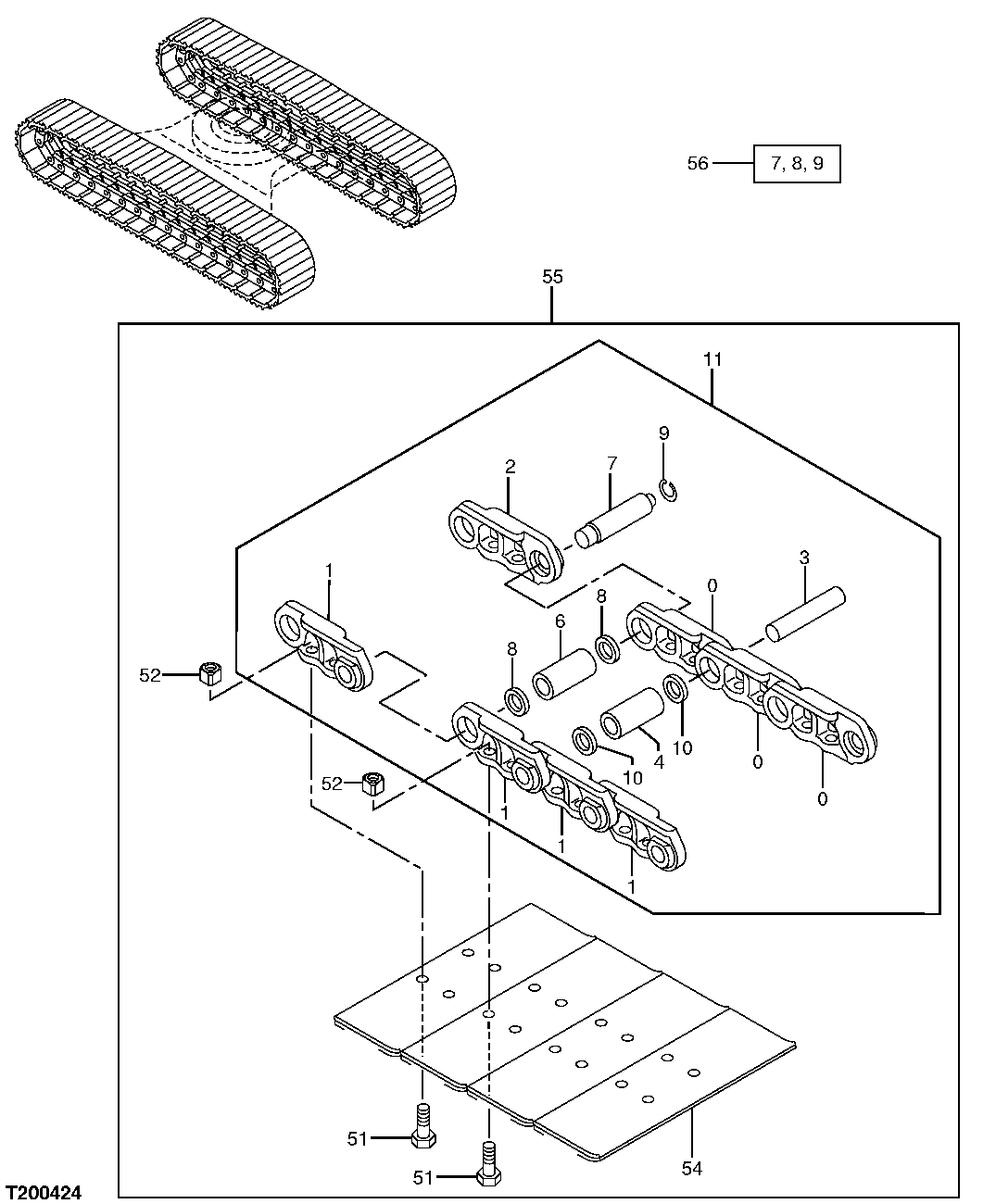

Схема запчастей John Deere 90D - 27C - REPLACEMENT 51 LINK TRACK CHAIN, SNAP RING MASTER 130 - TRACKS 1

Артикул

Название

Примечание

Количество

0

AT219480

STRUTTED LINK-RH

(RIGHT)

50шт.

1

AT219481

STRUTTED LINK-LH

(LEFT)

51шт.

2

T209262

MASTER TRACK LINK-RH

(RIGHT MASTER)

1шт.

3

AT180028

PIN FASTENER

49шт.

4

AT186162

BUSHING

49шт.

6

AT219468

BUSHING

(MASTER)

1шт.

7

T209260

MASTER TRACK PIN

(MASTER)

1шт.

8

AT219471

SPACER

(MASTER)

2шт.

9

T209259

SNAP RING

1шт.

10

AT186161

SEAL

98шт.

11

AT311624

TRACK CHAIN W/O SHOES

1шт.

51

T139614

BOLT

M20 X 55

204шт.

T142594

TRACK BOLT

M20 X 62, (USE WITH HEAVY DUTY SHOES)

204шт.

52

T139615

NUT

M20

204шт.

54

AT219482

OPEN CENTER 3 BAR SHOE

(600 MM) (EACH SIDE OF UNIT)

51шт.

AT219483

OPEN CENTER 3 BAR SHOE

(700 MM) (EACH SIDE OF UNIT)

51шт.

AT219484

OPEN CENTER 3 BAR SHOE

(800 MM) (EACH SIDE OF UNIT)

51шт.

T142593

SINGLE BAR SHOE

(650 MM) (EACH SIDE OF UNIT) (HEAVY DUTY)

51шт.

T186385

OPEN CENTER 2 BAR SHOE

(700 MM) (EACH SIDE OF UNIT) (HEAVY DUTY) (SLANTED EDGE GROUSER)

51шт.

FFSB113209

DOUBLE BAR SHOE

(700 MM) (EACH SIDE OF UNIT) (HEAVY DUTY) (STRAIGHT EDGE GROUSER)

51шт.

55

AT311625

TRACK ASSEMBLY WITH SHOES

(COMPLETE TRACK ASSEMBLY WITH 600MM SHOES)

1шт.

AT311626

TRACK ASSEMBLY WITH SHOES

(COMPLETE TRACK ASSEMBLY WITH 700MM SHOES)

1шт.

AT311627

TRACK ASSEMBLY WITH SHOES

(COMPLETE TRACK ASSEMBLY WITH 800MM SHOES)

1шт.

56

AT313621

CHAIN KIT

(MASTER PIN KIT) (INCLUDES T209260, T209259 AND (2) AT219471)

1шт.

Выбрано товаров: 24
