Запчасти John Deere 90D 27A - REPLACEMENT 51 LINK TRACK CHAIN, PRESS IN MASTER 130 - TRACKS 1

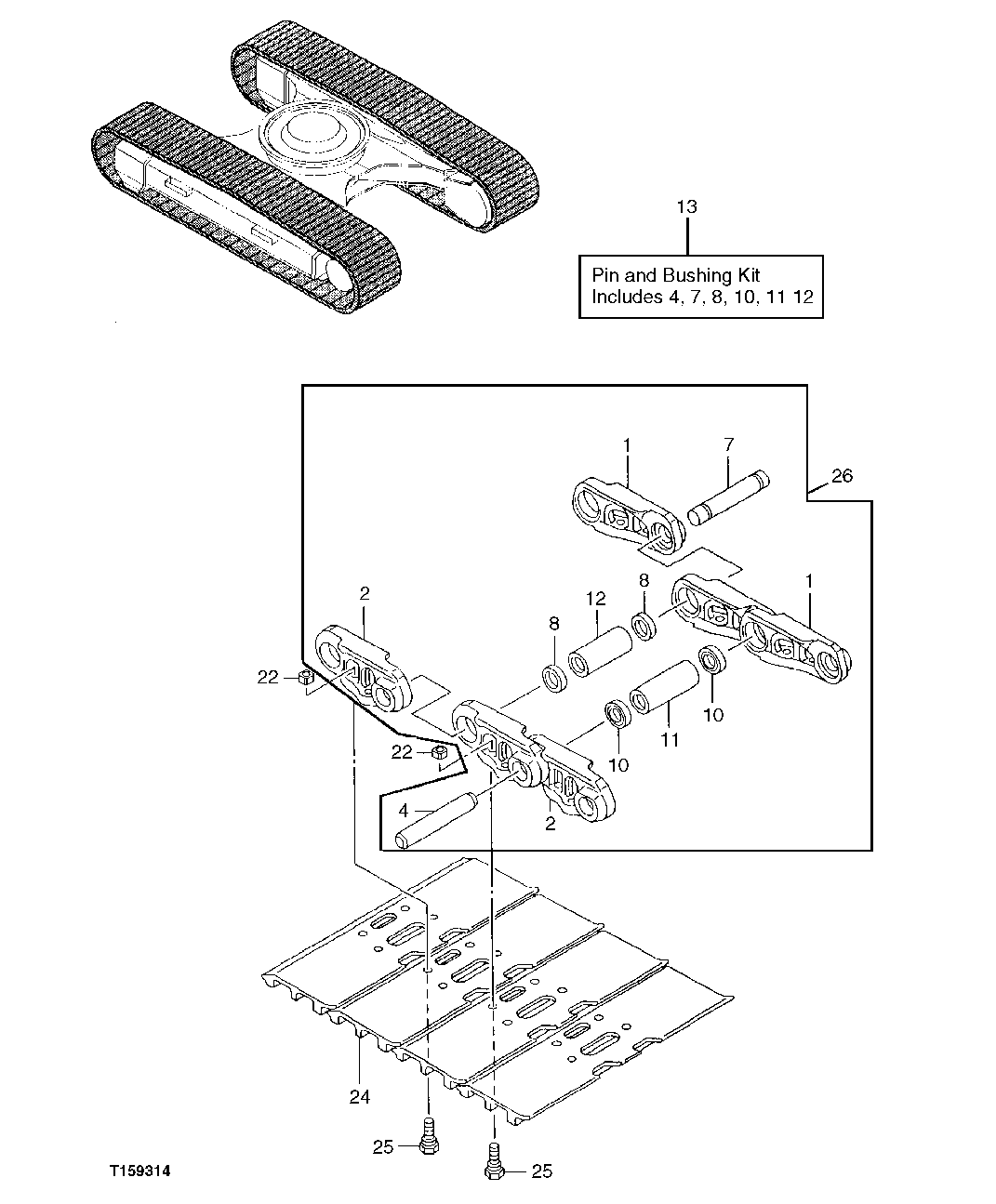

Схема запчастей John Deere 90D - 27A - REPLACEMENT 51 LINK TRACK CHAIN, PRESS IN MASTER 130 - TRACKS 1

Артикул

Название

Примечание

Количество

1

AT219480

STRUTTED LINK-RH

(RIGHT)

51шт.

2

AT219481

STRUTTED LINK-LH

(LEFT)

51шт.

4

AT180028

PIN FASTENER

(A)

50шт.

7

AT180030

MASTER TRACK PIN

(A) (MASTER PIN) (ALSO ORDER (2) AT219471 AND AT219468)

1шт.

8

SPACER

(MASTER) (FFSB13386 NO LONGER AVAILABLE) (REPLACED BY AT219471)

2шт.

AT219471

SPACER

(A) (MASTER) (ALSO ORDER AT180030 AND AT219468)

2шт.

10

AT180029

SEAL

(DUAL SPRING WASHER)

200шт.

AT186161

SEAL

(A) ("M" SEAL)

100шт.

11

BUSHING

(AT180032 NO LONGER AVAILABLE) (REPLACED BY AT186162)

50шт.

AT186162

BUSHING

(A) (ALSO ORDER (2) AT186161) (USE WITH "M" SEAL)

50шт.

12

MASTER TRACK BUSHING

(MASTER) (FFSB113387 NO LONGER AVAILABLE) (REPLACED BY AT219468)

1шт.

AT219468

MASTER TRACK BUSHING

(A) (MASTER) (ALSO ORDER (2) AT219471 AND AT180030)

1шт.

13

AT187185

PIN & BUSHING KIT

(INCLUDES PARTS MARKED (A))

1шт.

22

T139615

NUT

M20, (EACH SIDE OF UNIT)

204шт.

24

AT219482

OPEN CENTER 3 BAR SHOE

(600 MM) (EACH SIDE OF UNIT)

51шт.

AT219483

OPEN CENTER 3 BAR SHOE

(700 MM) (EACH SIDE OF UNIT)

51шт.

AT219484

OPEN CENTER 3 BAR SHOE

(800 MM) (EACH SIDE OF UNIT)

51шт.

T142593

SINGLE BAR SHOE

(650 MM) (EACH SIDE OF UNIT) (HEAVY DUTY)

51шт.

T186385

OPEN CENTER 2 BAR SHOE

(700 MM) (EACH SIDE OF UNIT) (HEAVY DUTY) (SLANTED EDGE GROUSER)

51шт.

FFSB113209

DOUBLE BAR SHOE

(700 MM) (EACH SIDE OF UNIT) (HEAVY DUTY) (STRAIGHT EDGE GROUSER)

51шт.

25

T139614

BOLT

M20 X 55, (EACH SIDE OF UNIT)

204шт.

T142594

TRACK BOLT

M20 X 62, (EACH SIDE OF UNIT) (FOR USE WITH HEAVY DUTY SHOES)

204шт.

26

TRACK CHAIN W/O SHOES

(AT280815 NO LONGER AVAILABLE) (SUB AT311624, SNAP RING STYLE) (QUANTITY OF 1 EACH SIDE OF UNIT)

2шт.
