Запчасти John Deere 90D 12 - UPPER ROLLER 130 - TRACKS 1

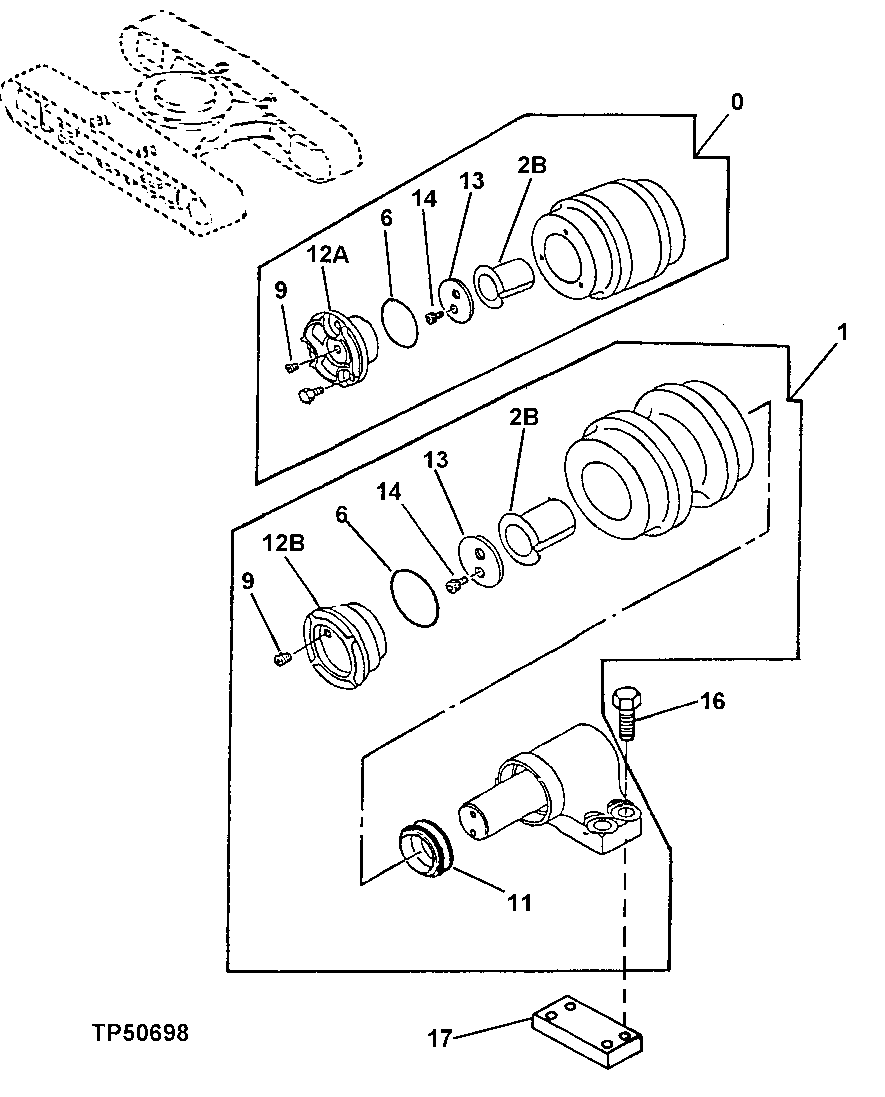

Схема запчастей John Deere 90D - 12 - UPPER ROLLER 130 - TRACKS 1

Артикул

Название

Примечание

Количество

0

ROLLER

AT154848 NO LONGER AVAILABLE, (SUB FOR 9105751) (ALSO ORDER 4334245 AND (4) 19M8295 AND AP34667)

4шт.

1

AP34667

ROLLER

(ALSO ORDER 4334245 AND (4) 19M8295) (SUB FOR AT214385)

4шт.

2B

4172348

BUSHING

(SUB FOR TH108089)

1шт.

6

CH17154

PACKING

1шт.

9

94-2011

FITTING PLUG

(SUB FOR TH100434)

1шт.

10

19M7938

CAP SCREW

M10 X 20

3шт.

11

4317584

SEAL

(SUB FOR TH111221) (SUB FOR AT213828)

1шт.

12A

3052354

COVER

(SUB FOR AT154687) (OLD STYLE - CAPSCREW MOUNTED)

1шт.

12B

COVER

( 3070078 NOT AVAILABLE FOR SERVICE) (SUB FOR AT213764) (NEW STYLE - USE WITH AT214385 ROLLER)

1шт.

13

T210827

THRUST WASHER

(SUB FOR AT131375 OR 4282842)

1шт.

14

M351018

BOLT

M10 X 18, (SUB FOR AT131372)

2шт.

16

19M8295

CAP SCREW

M16 X 55, (SUB FOR 19M7480) (USE WITH 4334245 SPACER)

16шт.

19M7488

CAP SCREW

M16 X 40, (USE WITHOUT 4334245 SPACER)

16шт.

17

4334245

SPACER

(SUB FOR AT168010)

1шт.

Выбрано товаров: 14
