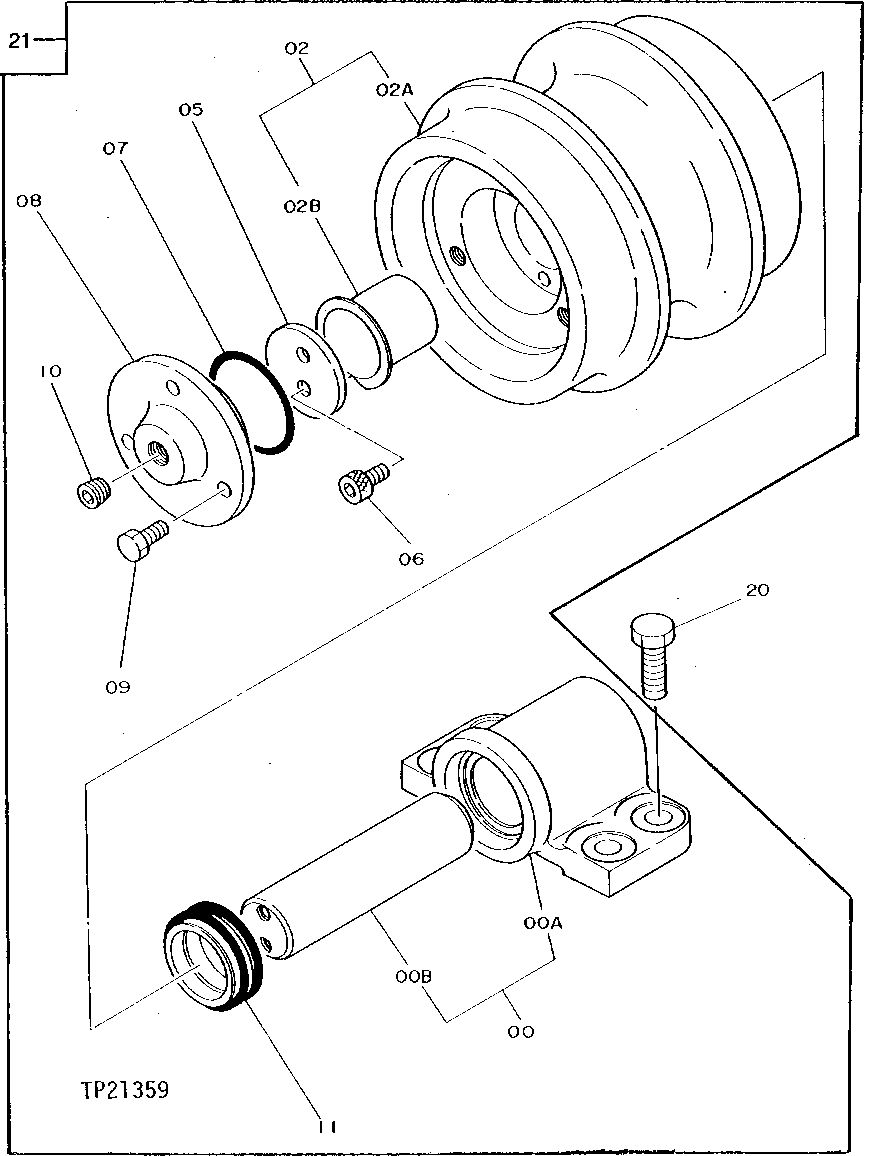

Запчасти John Deere 90D 10 - UPPER ROLLER 130 - TRACKS 1

0

AP34667

ROLLER

(USE WITH TH107983 OR TH109748 ROLLER) (SUB FOR 9074474, ALONG WITH (4) 19M8295 AND 4334245)

1шт.

0A

BRACKET

1шт.

0B

4171187

SHAFT

(SUB FOR TH108087) (USE WITH TH107983 OR TH109748 ROLLER)

1шт.

2

TH102342

ROLLER

(SUB FOR TH109750) (USE IF AVAILABLE)

1шт.

2A

ROLLER

(SUB TH102342)

1шт.

2B

4172348

BUSHING

(SUB FOR TH108089)

1шт.

5

WASHER

(SUB FOR TH109753) ( TH108090 NO LONGER AVAILABLE) (USE WITH TH107983 OR TH109748 ROLLER)

1шт.

M351018

BOLT

(SUB FOR AT131372)

1шт.

6

TH100454

SCREW

M8 X 14, (USE WITH TH107983 OR TH109748 ROLLER)

2шт.

M351018

BOLT

(SUB FOR AT131372)

2шт.

7

CH17154

PACKING

(SUB FOR TH102348)

1шт.

8

COVER

(USE TH108091 IF AVAILABLE)

1шт.

9

19M8761

SCREW

M10 X 22, (SUB FOR TH100456)

3шт.

10

94-2011

FITTING PLUG

(SUB FOR TH100434)

1шт.

11

4317584

SEAL

(SUB FOR TH111221 OR TH102345) (SUB FOR AT213828)

1шт.

20

19M7488

CAP SCREW

M16 X 40

16шт.

21

ROLLER

(SUB FOR TH109748 OR TH107983) ( 9105751 NO LONGER AVAILABLE) (SUB AP34667, ALONG WITH (4) 19M8295 AND 4334245)

4шт.
