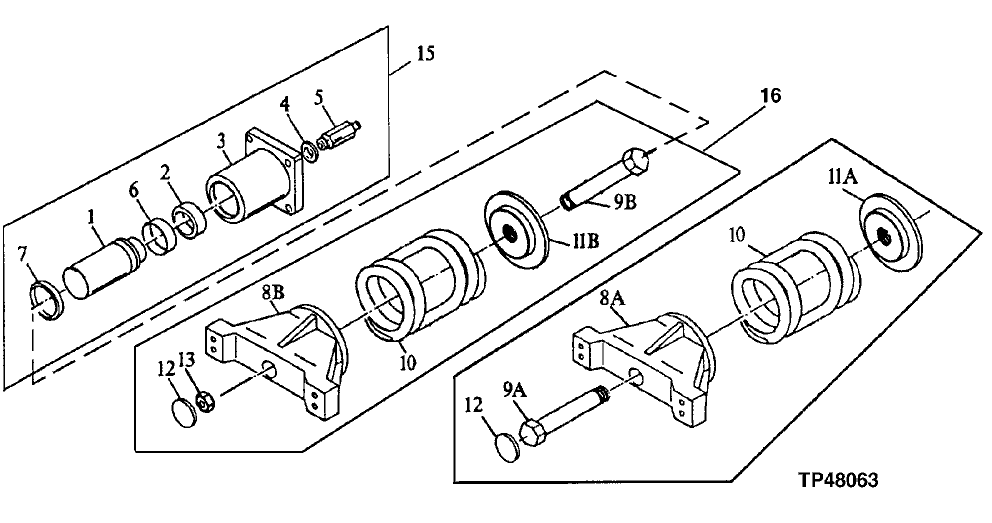

Запчасти John Deere 90D 8 - TRACK ADJUSTER 130 - TRACKS 1

1

PISTON

(SUB AT108626) ( AT108628 NO LONGER AVAILABLE)

1шт.

2

AT108620

SEAL

1шт.

3

HYDRAULIC CYLINDER BARREL

(SUB AT108626) ( AT108627 NO LONGER AVAILABLE)

1шт.

4

AT108632

WASHER

1шт.

5

AT108633

LUBRICATION FITTING

1шт.

6

AT108631

PISTON

1шт.

7

AT108621

O-RING

1шт.

8A

YOKE

( AT108597 NO LONGER AVAILABLE) (SUB AT130897, ALONG WITH AT130898, AT130899, AT130900, AND AT108595)

1шт.

8B

AT130897

YOKE

1шт.

9A

BOLT

( AT108598 NO LONGER AVAILABLE) (SUB AT130899, ALONG WITH AT130897, AT130898, AT130900 AND AT108595)

1шт.

9B

AT130899

BOLT

1шт.

10

SPRING

( AT108599 NO LONGER AVAILABLE)

1шт.

11A

PLATE

(SUB AT130898, AT130897, AT130899, AT130900 AND AT108595) ( AT108634 NO LONGER AVAILABLE)

1шт.

11B

AT130898

PLATE

1шт.

12

AT108595

DISK

1шт.

13

AT130900

NUT

1шт.

15

AT108626

ADJUSTER

1шт.

16

AT130896

SPRING

1шт.
