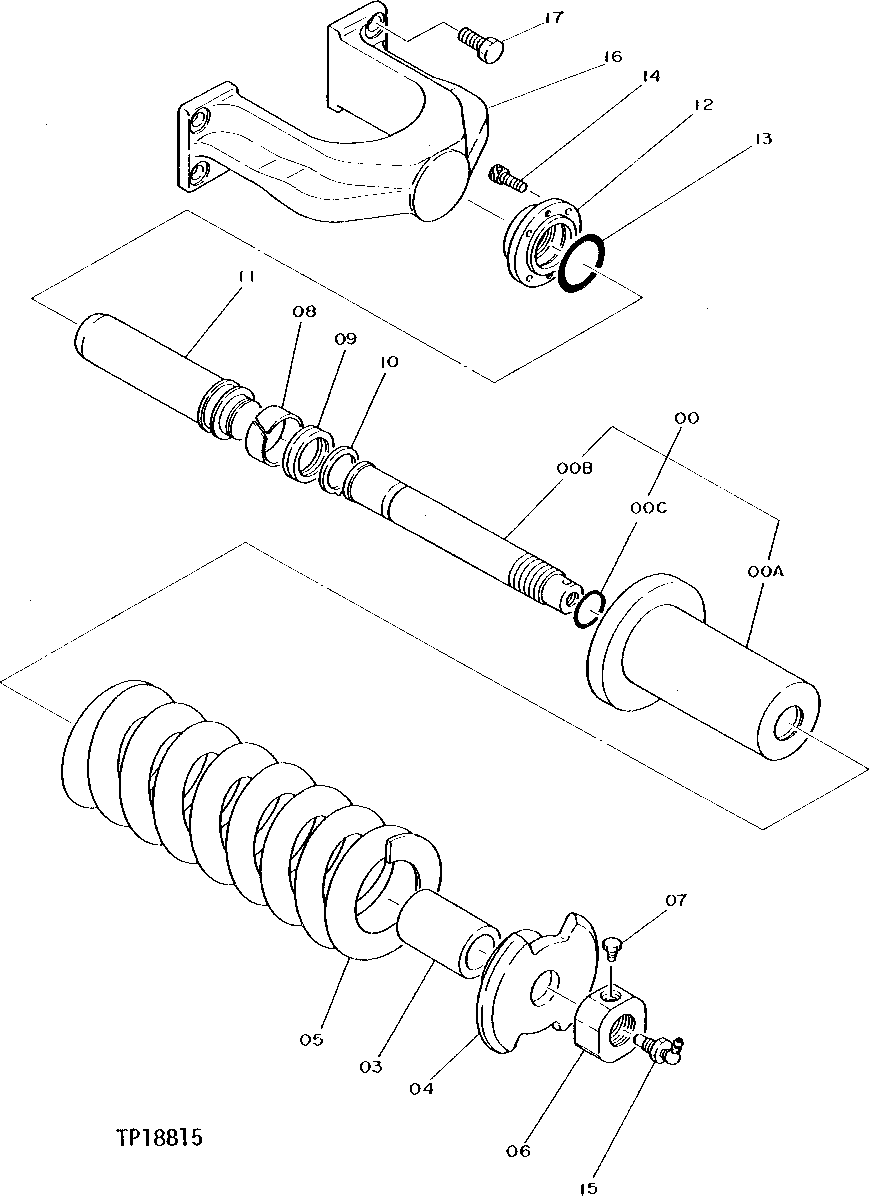

Запчасти John Deere 90D 6 - TRACK ADJUSTER 130 - TRACKS 1

0

CYLINDER

( TH109736 NO LONGER AVAILABLE)

1шт.

0A

3033361

CYLINDER

(SUB FOR TH109737)

1шт.

0B

3069637

HYDRAULIC CYLINDER ROD

(SUB FOR TH109738) (USE IF AVAILABLE) (IF TH109738 NOT AVAILABLE, SUB AT165100, ALONG WITH AT165101)

1шт.

3069637

HYDRAULIC CYLINDER ROD

(SUB FOR AT165100)

1шт.

0C

4069900

O-RING

(SUB FOR TH106976)

1шт.

3

4186583

SPACER

(SUB FOR TH109739)

1шт.

4

3033433

BUSHING

(SUB FOR TH109740)

1шт.

5

3034978

SPRING

(SUB FOR TH109741)

1шт.

6

4186444

NUT

(SUB FOR TH109742)

1шт.

4337466

NUT

(SUB FOR AT165101)

1шт.

7

TH108868

BOLT

1шт.

8

TH109743

WEAR RING

1шт.

9

4177837

PACKING

(SUB FOR TH109744)

1шт.

10

40M7066

SNAP RING

(SUB FOR TH100498)

1шт.

11

3033431

ROD

(SUB FOR TH109745)

1шт.

12

3051014

FLANGE

(SUB FOR TH109746, 3033434)

1шт.

13

AT264334

O-RING

(SUB FOR TH100101)

1шт.

14

M341022

SCREW

(SUB FOR TH105695)

4шт.

15

4255055

VALVE

(SUB FOR TH108874 OR AT154223)

1шт.

16

1005809

YOKE

(SUB FOR TH102330)

1шт.

17

19M8035

CAP SCREW

M16 X 35

4шт.
