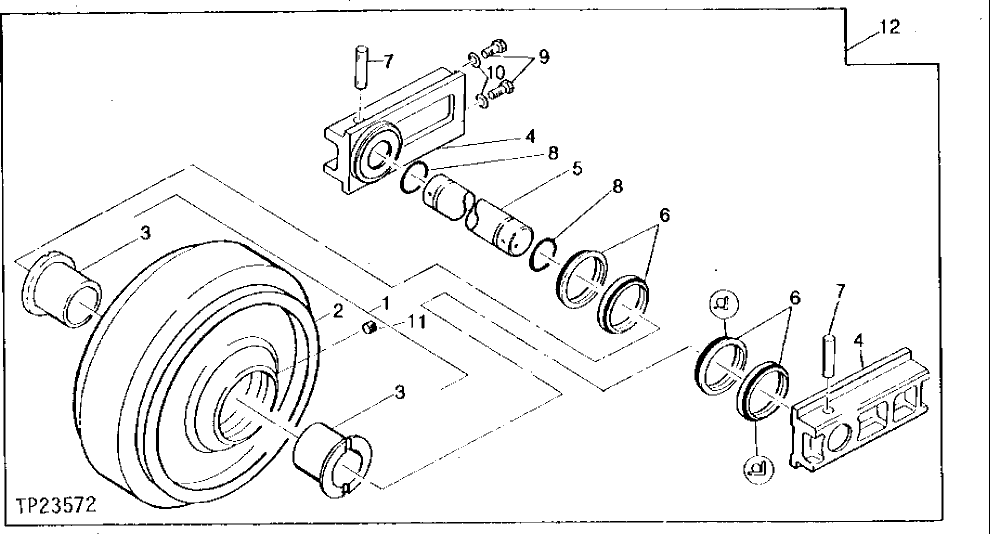

Запчасти John Deere 90D 4 - FRONT IDLER 130 - TRACKS 1

1

AT130893

ROLLER SHELL

(SUB FOR AT108590)

1шт.

2

IDLER

(SUB AT130893)

1шт.

3

AT108616

BUSHING

2шт.

4

AT108617

BAR

2шт.

5

AT108615

SHAFT

1шт.

6

AT38824

SEAL

(USE IF AVAILABLE) (SUB FOR AT108592)

3шт.

AT38824

SEAL

(SUB FOR AT108592)

3шт.

7

AT108618

SPRING PIN

16 X 100 MM (0.630" X 3.937")

2шт.

8

AT108640

O-RING

2шт.

9

19M7720

CAP SCREW

M16 X 80

4шт.

10

12M7069

LOCK WASHER

16 MM (0.630")

4шт.

11

AT108653

PLUG

1шт.

12

IDLER

( AT108587 NO LONGER AVAILABLE) (ORDER INDIVIDUAL COMPONENTS)

1шт.
