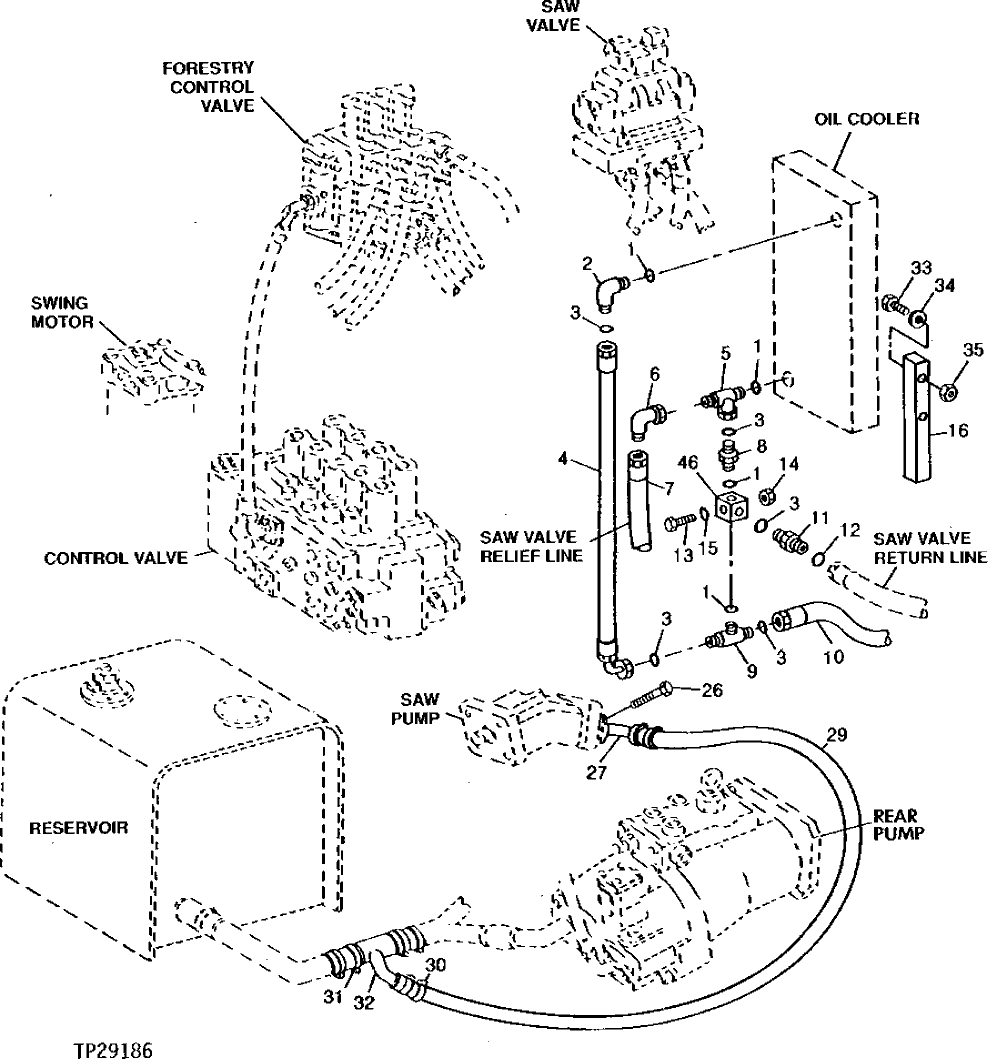

Запчасти John Deere 90D 110 - CONTINUOUS SPEED SAW HOSES AND FITTINGS 3360 - EXCAVATOR 33

1

R29936

O-RING

29.743 X 2.946 MM (1.171" X 0.116")

4шт.

2

38H1037

ELBOW FITTING

2шт.

3

T76938

O-RING

23.520 X 1.778 MM (0.926" X 0.070")

4шт.

4

AT63998

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT130860) (USE IF AVAILABLE) (SUB AT63998 IF AT130860 NOT AVAILABLE)

1шт.

5

38H1027

TEE FITTING

1шт.

6

38H1098

ELBOW FITTING

1шт.

T76938

O-RING

23.520 X 1.778 MM (0.926" X 0.070")

1шт.

7

AT125613

HYDRAULIC HOSE

1шт.

8

38H1071

ADAPTER FITTING

1шт.

9

38H1020

TEE FITTING

1шт.

10

AT70222

HYDRAULIC HOSE - FABRICATE

1-5/16" X 1 170 MM (46") X 1-5/16", (SUB FOR AT130861)

1шт.

11

38H1196

ADAPTER FITTING

1шт.

12

T78612

O-RING

1шт.

13

19H1912

CAP SCREW

3/8" X 3-1/2"

1шт.

14

14H1076

NUT

3/8"

1шт.

15

24H1305

WASHER

13/32" X 13/16" X 0.065"

1шт.

16

AT130862

BRACKET

1шт.

26

19H3239

CAP SCREW

3/8" X 1-1/4"

4шт.

27

AT125699

ADAPTER FITTING

(SAW PUMP INLET)

1шт.

U12037

O-RING

32.918 X 3.531 MM (1.296" X 0.139")

1шт.

29

AT125568

HYDRAULIC HOSE

1шт.

30

AT54837

CLAMP

2шт.

31

AT50924

HOSE CLAMP

4шт.

32

AT125631

LINE

1шт.

33

19H988

CAP SCREW

3/8" X 1-1/4"

2шт.

34

24H1305

WASHER

13/32" X 13/16" X 0.065"

2шт.

35

14H1076

NUT

3/8"

2шт.

46

AT108839

THERMOSTATIC CONTROL VALVE

1шт.
