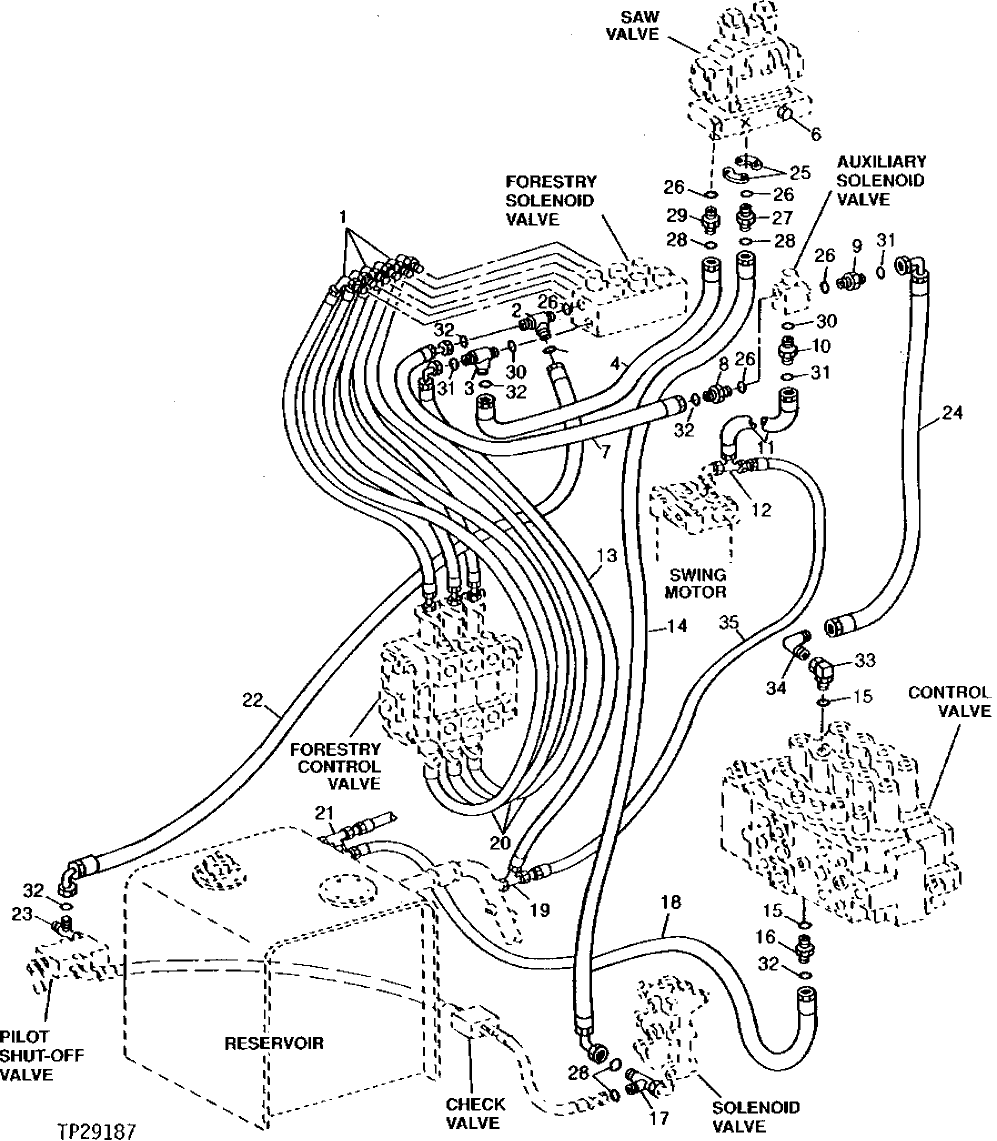

Запчасти John Deere 90D 104 - CONTINUOUS SPEED SAW PILOT HOSES AND FITTINGS 3360 - EXCAVATOR 33

1

AT125617

HYDRAULIC HOSE - FABRICATE

(SHORT)

3шт.

T77613

O-RING

HOSE TO ADAPTER

3шт.

38H1160

ADAPTER FITTING

HOSE TO VALVE (SHORT)

3шт.

T70177

O-RING

ADAPTER TO VALVE

3шт.

2

38H1023

TEE FITTING

1шт.

3

38H1024

TEE FITTING

1шт.

4

AT125614

HYDRAULIC HOSE

1шт.

6

T70177

O-RING

PLUG TO VALVE

1шт.

R27218

FITTING PLUG

VALVE BASE

1шт.

7

AT125620

HYDRAULIC HOSE

1шт.

8

38H1160

ADAPTER FITTING

HOSE TO AUXILIARY SOLENOID

1шт.

9

38H1173

ADAPTER FITTING

HOSE TO VALVE

1шт.

10

38H1161

ADAPTER FITTING

HOSE TO VALVE

1шт.

11

AT125621

HYDRAULIC HOSE

1шт.

12

AT36921

TEE FITTING

1шт.

13

AT125622

HYDRAULIC HOSE

1шт.

14

AT125616

HYDRAULIC HOSE

1шт.

15

CH11570

O-RING

ADAPTER TO VALVE

2шт.

16

AT108800

ADAPTER FITTING

HOSE TO VALVE

1шт.

17

38H1031

TEE FITTING

1шт.

18

AT125619

HYDRAULIC HOSE

1шт.

19

AT36921

TEE FITTING

1шт.

20

AT72069

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT125618) (LONG)

3шт.

T77613

O-RING

HOSE TO ADAPTER

3шт.

38H1160

ADAPTER FITTING

HOSE TO VALVE

3шт.

T70177

O-RING

ADAPTER TO VALVE

3шт.

38H1212

ADAPTER FITTING

3шт.

21

AT36921

TEE FITTING

1шт.

22

AT125615

HYDRAULIC HOSE

1шт.

23

AT36921

TEE FITTING

1шт.

24

AT108798

HYDRAULIC HOSE

1шт.

25

T114635

ORIFICE

2шт.

26

T70177

O-RING

5шт.

27

AT130051

ADAPTER FITTING

1шт.

28

T77857

O-RING

4шт.

29

38H1173

ADAPTER FITTING

1шт.

30

R47150

O-RING

2шт.

31

T77857

O-RING

4шт.

32

T77613

O-RING

5шт.

33

AT130053

ADAPTER FITTING

1шт.

34

AE24616

ELBOW FITTING

1шт.

35

AT57860

HYDRAULIC HOSE - FABRICATE

1шт.
