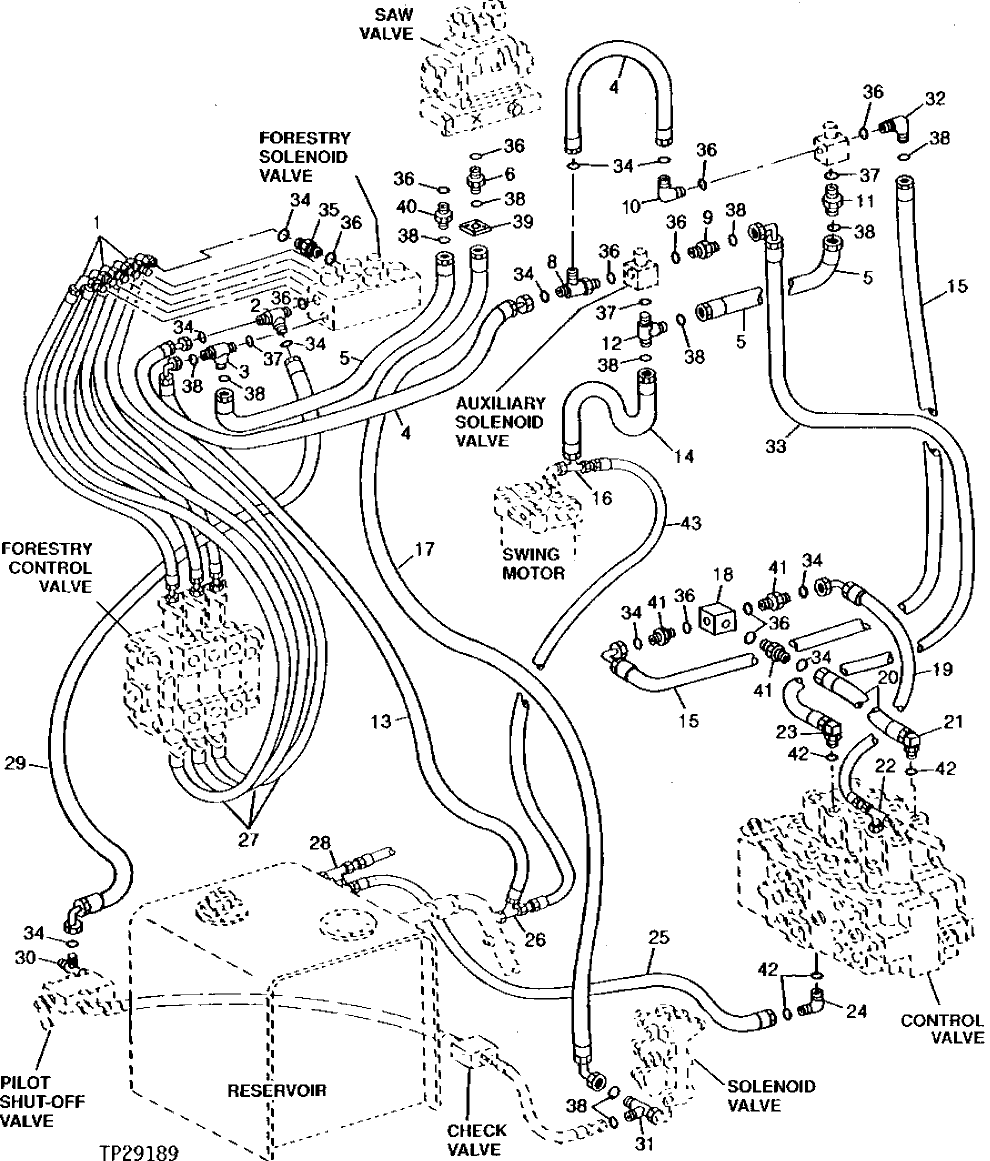

Запчасти John Deere 90D 96 - INTERMITTENT SPEED SAW PILOT HOSES AND FITTINGS 3360 - EXCAVATOR 33

1

AT125617

HYDRAULIC HOSE - FABRICATE

3шт.

2

38H1023

TEE FITTING

1шт.

3

38H1024

TEE FITTING

1шт.

4

AT125620

HYDRAULIC HOSE

2шт.

5

AT125614

HYDRAULIC HOSE

2шт.

6

AT130051

ADAPTER FITTING

1шт.

7

T70177

O-RING

PLUG TO VALVE

1шт.

R27218

FITTING PLUG

1шт.

8

38H1023

TEE FITTING

1шт.

9

38H1173

ADAPTER FITTING

HOSE TO VALVE

1шт.

10

38H1004

ELBOW FITTING

1шт.

11

38H1161

ADAPTER FITTING

1шт.

12

38H1024

TEE FITTING

1шт.

13

AT125622

HYDRAULIC HOSE

1шт.

14

AT125621

HYDRAULIC HOSE

1шт.

15

AT125662

HYDRAULIC HOSE

1шт.

16

AT36921

TEE FITTING

1шт.

17

AT125616

HYDRAULIC HOSE

1шт.

18

AH91325

CHECK VALVE

1шт.

19

AT125661

HYDRAULIC HOSE

1шт.

20

AT125663

HYDRAULIC HOSE

1шт.

21

AT130053

ADAPTER FITTING

1шт.

22

AE35617

TEE FITTING

1шт.

23

AT130053

ADAPTER FITTING

1шт.

24

AT108800

ADAPTER FITTING

1шт.

25

AT125619

HYDRAULIC HOSE

1шт.

26

AT36921

TEE FITTING

1шт.

27

AT72069

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT125618)

3шт.

28

AT36921

TEE FITTING

1шт.

29

AT125615

HYDRAULIC HOSE

1шт.

30

AT36921

TEE FITTING

1шт.

31

38H1031

TEE FITTING

1шт.

32

38H1314

ELBOW FITTING

1шт.

33

AT108798

HYDRAULIC HOSE

1шт.

34

T77613

O-RING

ARшт.

35

38H1160

ADAPTER FITTING

(SHORT HOSES)

3шт.

38H1212

ADAPTER FITTING

(LONG HOSES)

3шт.

36

T70177

O-RING

ARшт.

37

R47150

O-RING

3шт.

38

T77857

O-RING

ARшт.

39

T114635

ORIFICE

1шт.

40

38H1173

ADAPTER FITTING

1шт.

41

38H1160

ADAPTER FITTING

3шт.

42

CH11570

O-RING

4шт.

43

AT57860

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH109537)

1шт.
