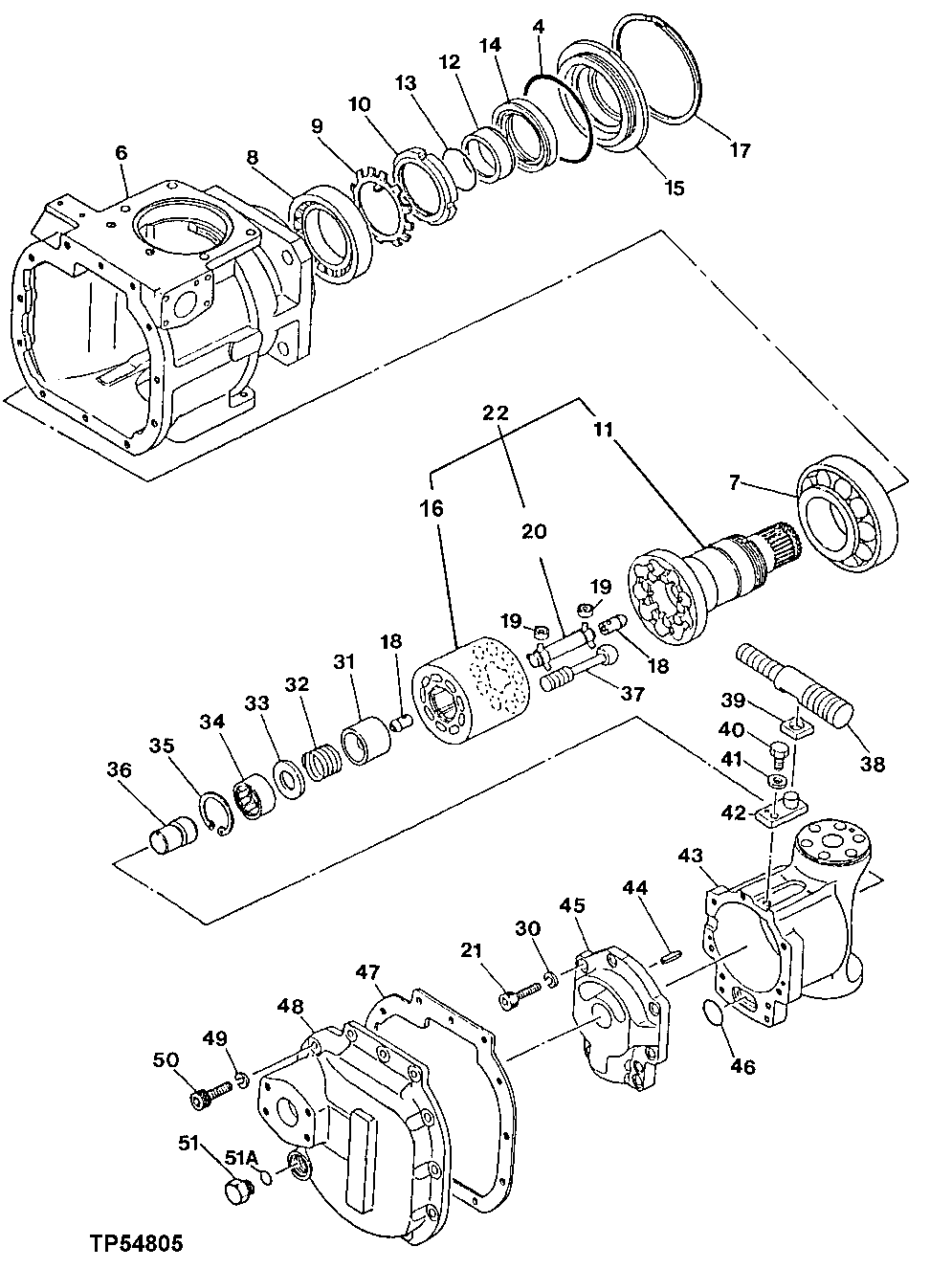

Запчасти John Deere 90 14 - MAIN HYDRAULIC PUMP 2160 - MAIN HYDRAULIC SYSTEM 21

4

CH13522

PACKING

(SUB FOR TH102523)

1шт.

6

1005841

HOUSING

(SUB FOR TH102518)

1шт.

7

JD10304

TAPERED ROLLER BEARING

(SUB FOR TH102520)

1шт.

8

TH100009

TAPERED ROLLER BEARING

1шт.

9

454956

WASHER

(SUB FOR TH100014)

1шт.

10

454939

NUT

M70, (SUB FOR TH100015)

1шт.

11

9037764

SHAFT

(SUB FOR TH102519) (USE WITH TH102894 OR TH101784 PUMPS)

1шт.

SHAFT

(SUB AT131488) (USE WITH AT217327 AND AT217358 PUMPS)

1шт.

12

4114333

BUSHING

(SUB FOR TH101790) (USE WITH TH101784 PUMP)

1шт.

40M7120

SNAP RING

(USE WITH TH101784 PUMP)

1шт.

4114333

BUSHING

(SUB FOR TH101790) (USE WITH AT217327 PUMP)

1шт.

4114333

BUSHING

(SUB FOR TH101790) (USE WITH TH102894 PUMP)

1шт.

40M7120

SNAP RING

(USE WITH TH102894 PUMP)

1шт.

4114333

BUSHING

(SUB FOR TH101790) (USE WITH AT217358 PUMP)

1шт.

13

4089823

O-RING

49.400 X 3.100 MM (1.945" X 0.122") (SUB FOR TH101791)

1шт.

14

TH102521

SEAL

1шт.

15

4113213

COVER

(SUB FOR TH102522)

1шт.

16

2013674

ROTOR

(SUB FOR TH100020) (USE WITH TH101784 OR TH102894 PUMPS)

1шт.

ROTOR

(SUB AT131488) (USE WITH AT217327 AND AT217358 PUMPS)

1шт.

17

4154413

SNAP RING

(SUB FOR TH102524)

1шт.

18

4137947

STOP

(SUB FOR TH100019)

2шт.

19

TH100018

SPHERICAL ROLLER BEARING

6шт.

20

3020028

ROD

(SUB FOR TH100017) (USE WITH TH101784 OR TH102894 PUMPS)

1шт.

ROD

(SUB AT131488) (USE WITH AT217327 OR AT217358 PUMPS)

1шт.

21

M341232

BOLT

M12 X 32, (SUB FOR TH100046)

9шт.

22

9112451

ROTOR

(SUB FOR AT131488) (USE WITH AT217327 OR AT217358 PUMPS)

1шт.

30

12M7058

LOCK WASHER

12 MM (0.472") (SUB FOR TH102529) (SUB FOR 12M6138)

9шт.
