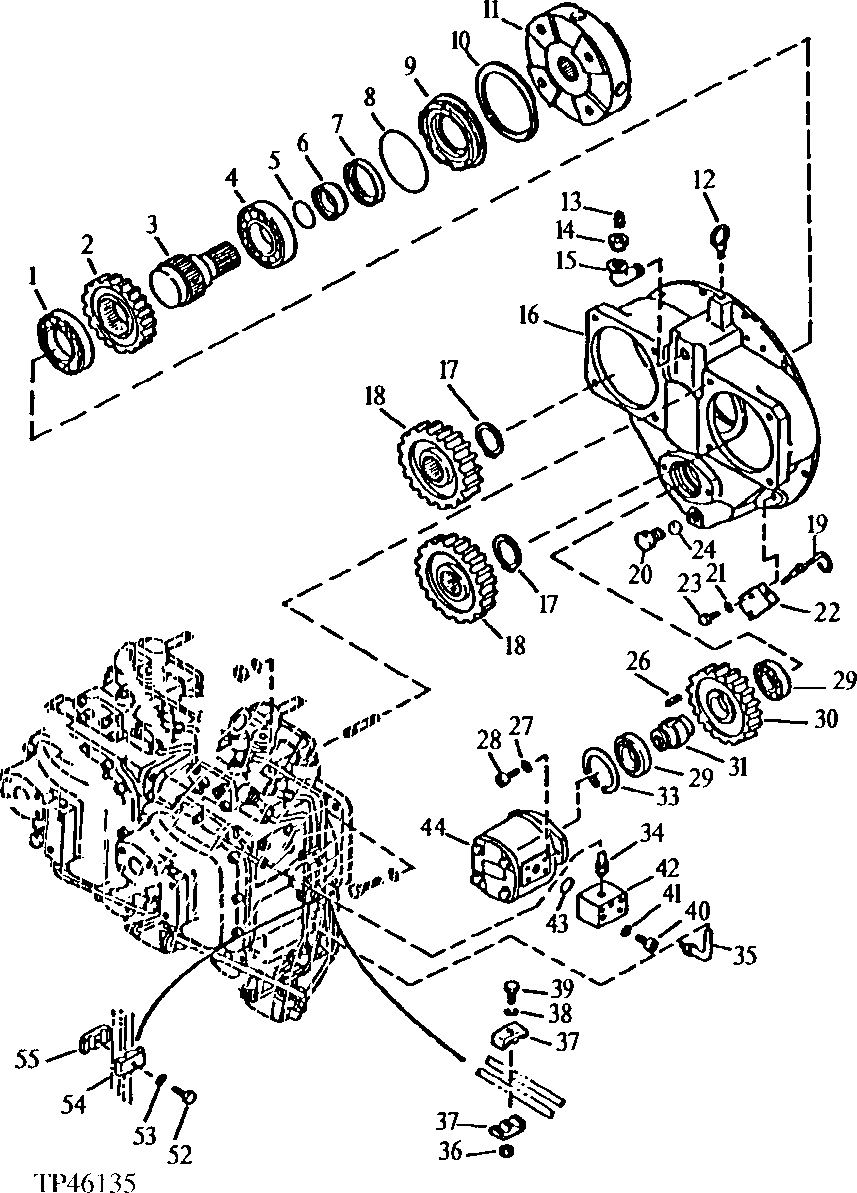

Запчасти John Deere 90 10 - MAIN HYDRAULIC PUMP, GEARBOX AND DRIVE 2160 - MAIN HYDRAULIC SYSTEM 21

34

8020843

LINE

(SUB FOR TH101822) (FRONT PUMP)

1шт.

35

8020844

LINE

(SUB FOR TH101823) (REAR PUMP) (ALSO ORDER (4) TH108191 CLAMPS AND (4) TH108194 CLAMPS)

1шт.

8020844

LINE

(SUB FOR TH101823) (REAR PUMP)

1шт.

8020844

LINE

(SUB FOR TH101823) (REAR PUMP) (ALSO ORDER (4) TH108191 CLAMPS AND (4) TH108194 CLAMPS)

1шт.

8020844

LINE

(SUB FOR TH101823) (REAR PUMP)

1шт.

FITTING

(REAR PUMP) (NOT ILLUSTRATED) (LINE TO REGULATOR) (INCLUDED IN TH101823 LINE ASSEMBLY)

1шт.

FITTING

( 4115041 NO LONGER AVAILABLE) (SUB FOR TH103907) (REAR PUMP) (NOT ILLUSTRATED) (LINE TO JUNCTION BLOCK) (INCLUDED IN TH101823 LINE ASSEMBLY)

1шт.

36

14M7273

NUT

M8

1шт.

37

4090937

CLAMP

(SUB FOR TH101831)

2шт.

38

12M7056

LOCK WASHER

8 MM (0.315") (SUB FOR TH100529) (SUB FOR 12M7065)

1шт.

39

M200830

BOLT

(SUB FOR TH101832)

1шт.

40

19H2871

SCREW

9.525 X 57.150 MM (3/8" X 2-1/4") (SUB FOR TH101819)

4шт.

41

12M7135

LOCK WASHER

10 MM (0.394") (SUB FOR TH101817) (SUB FOR 12M6791)

4шт.

42

3021073

JUNCTION BLOCK

(SUB FOR TH101818)

1шт.

43

A811030

O-RING

29.400 X 3.100 MM (1.157" X 0.122") (SUB FOR TH101300)

1шт.

44

4035495

PUMP

(SUB FOR TH101816) PILOT

1шт.

52

TH101826

BOLT

8шт.

TH101826

BOLT

4шт.

TH101826

BOLT

8шт.

TH101826

BOLT

4шт.

53

12M7056

LOCK WASHER

8 MM (0.315") (SUB FOR TH100529) (SUB FOR 12M7065)

8шт.

12M7056

LOCK WASHER

8 MM (0.315") (SUB FOR 12M7065)

4шт.

12M7056

LOCK WASHER

8 MM (0.315") (SUB FOR 12M7065)

8шт.

12M7056

LOCK WASHER

8 MM (0.315") (SUB FOR 12M7065)

4шт.

54

4205204

CLAMP

(SUB FOR TH101824)

8шт.

4205205

CLAMP

(SUB FOR TH108194) (UPPER POSITION ONLY)

4шт.

4205204

CLAMP

(SUB FOR TH101824)

8шт.

4205205

CLAMP

(SUB FOR TH108194) (UPPER POSITION ONLY)

4шт.

55

4205204

CLAMP

(SUB FOR TH101825)

8шт.

4205204

CLAMP

(SUB FOR TH108191) (UPPER POSITION ONLY)

4шт.

4205204

CLAMP

(SUB FOR TH101825)

8шт.

4205204

CLAMP

(SUB FOR TH108191) (UPPER POSITION ONLY)

4шт.
