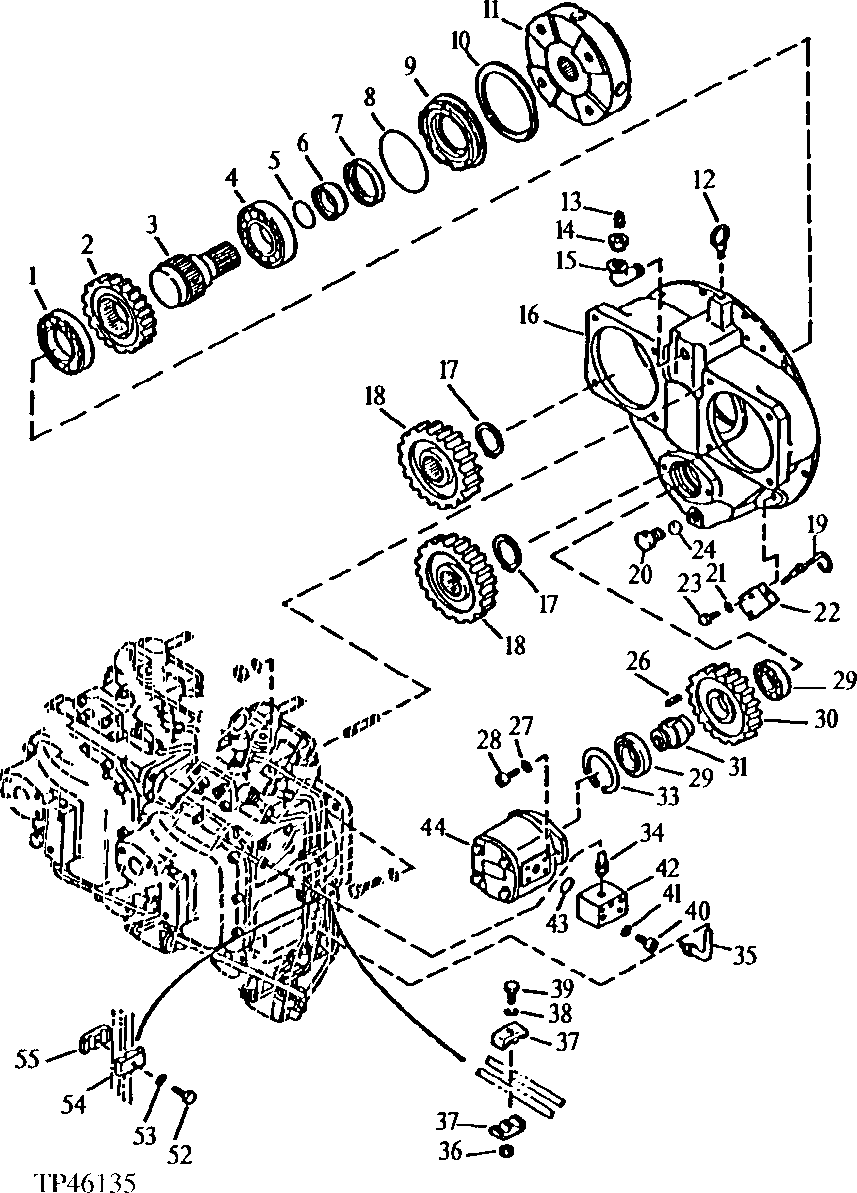

Запчасти John Deere 90 8 - MAIN HYDRAULIC PUMP, GEARBOX AND DRIVE 2160 - MAIN HYDRAULIC SYSTEM 21
№
Артикул
Название
Примечание
Количество
1
M804206
BEARING
(SUB FOR TH101792) (USE IF AVAILABLE)
1шт.
M804206
BEARING
(SUB FOR TH101792) (SUB FOR AT250102)
1шт.
2
3024914
GEAR
(SUB FOR TH101788)
1шт.
3
40M7120
SNAP RING
(SUB FOR TH101789)
1шт.
40M7120
SNAP RING
(SUB FOR TH101789)
1шт.
3035308
SHAFT
(SUB FOR TH106792)
1шт.
3035308
SHAFT
(SUB FOR TH106792)
1шт.
4
JD9320
BALL BEARING
(SUB FOR TH101793 OR TH108029)
1шт.
5
4089823
O-RING
49.400 X 3.100 MM (1.945" X 0.122") (SUB FOR TH101791)
1шт.
6
4114333
BUSHING
(SUB FOR TH101790)
1шт.
4114333
BUSHING
(SUB FOR TH101790)
1шт.
40M7120
SNAP RING
1шт.
40M7120
SNAP RING
1шт.
7
4171410
SEAL
(SUB FOR TH101794)
1шт.
8
4154411
O-RING
(SUB FOR TH101796)
1шт.
9
4136782
COVER
(SUB FOR TH101795)
1шт.
10
4154412
SNAP RING
(SUB FOR TH101797)
1шт.
11
4080519
COUPLING
(SUB FOR TH102897)
1шт.
12
4092149
EYEBOLT
(SUB FOR TH101814)
1шт.
13
4511984
PIPE PLUG
(SUB FOR TH101812)
1шт.
14
J728684
REDUCER
(SUB FOR TH101811)
1шт.
15
15H621
ELBOW FITTING
19.050 MM (3/4") (SUB FOR TH101810)
1шт.
16
1006666
GEAR CASE
(SUB FOR TH101787)
1шт.
17
40M7166
SNAP RING
(SUB FOR TH101799)
2шт.
18
3024915
GEAR
(SUB FOR TH101798)
2шт.
19
4159308
DIPSTICK
(SUB FOR TH101808)
1шт.
20
15M7036
DRAIN PLUG
(SUB FOR TH109285 OR 0309805) (SUB FOR 4092534 OR 4217653, ALONG WITH CH11570)
2шт.
22
4159309
JUNCTION BLOCK
(SUB FOR TH101809)
1шт.
23
TH101815
BOLT
2шт.
24
CH10569
PACKING
(USE WITH 0309805 OR 15M7036)
2шт.
CH11570
O-RING
(USE WITH 0309805 OR 15M7036)
2шт.
26
4118495
SHAFT KEY
(SUB FOR TH101802)
1шт.
27
12M7135
LOCK WASHER
10 MM (0.394") (SUB FOR TH101817) (SUB FOR 12M6791)
2шт.
28
19M8440
SCREW
M10 X 25, (SUB FOR TH101108)
2шт.
29
JD8514
BALL BEARING
(SUB FOR TH101803)
2шт.
30
3024916
GEAR
(SUB FOR TH101800)
1шт.
Выбрано товаров: 39
