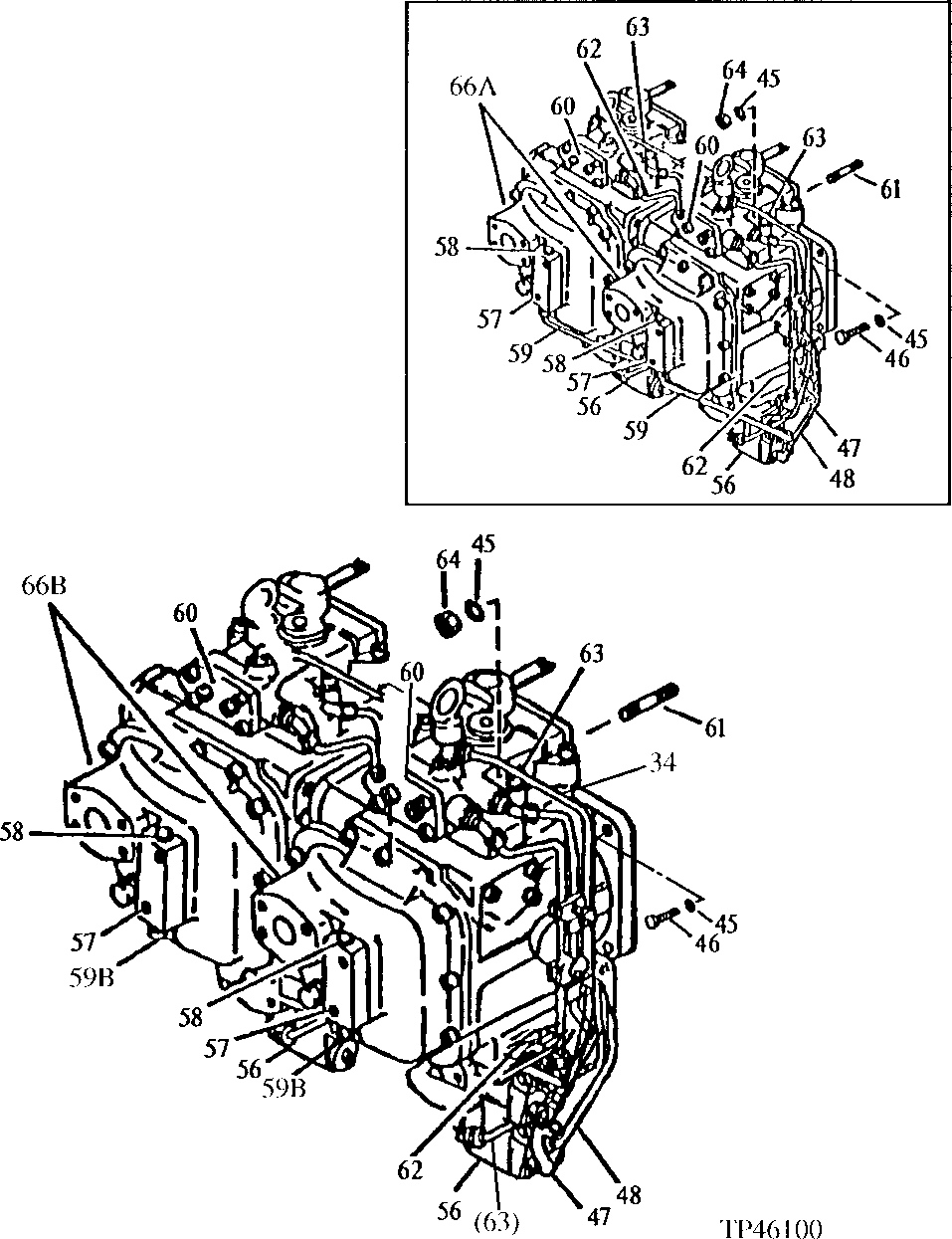

Запчасти John Deere 90 6 - MAIN HYDRAULIC PUMP 2160 - MAIN HYDRAULIC SYSTEM 21

34

8020843

LINE

(SUB FOR TH101822) (FRONT PUMP)

1шт.

8020844

LINE

(SUB FOR TH101823) (REAR PUMP) (ALSO ORDER (4) TH108191 CLAMPS AND (4) TH108194 CLAMPS)

1шт.

8020844

LINE

(SUB FOR TH101823) (REAR PUMP)

1шт.

8020844

LINE

(SUB FOR TH101823) (REAR PUMP) (ALSO ORDER (4) TH108191 CLAMPS AND (4) TH108194 CLAMPS)

1шт.

8020844

LINE

(SUB FOR TH101823) (REAR PUMP)

1шт.

FITTING

(REAR PUMP - LINE TO REGULATOR) (NOT ILLUSTRATED) (INCLUDED IN TH101823 LINE ASSEMBLY)

1шт.

FITTING

( 4115041 NO LONGER AVAILABLE) (SUB FOR TH103907) (REAR PUMP - LINE TO JUNCTION BLOCK) (NOT ILLUSTRATED) (INCLUDED IN TH101823 LINE ASSEMBLY)

1шт.

45

12H294

LOCK WASHER

15.875 MM (5/8") (SUB FOR TH100466)

8шт.

46

19M7409

CAP SCREW

M16 X 50, (SUB FOR TH101805)

4шт.

47

4165274

LINE

(SUB FOR TH103447) (PUMP TO REDUCING VALVE)

2шт.
