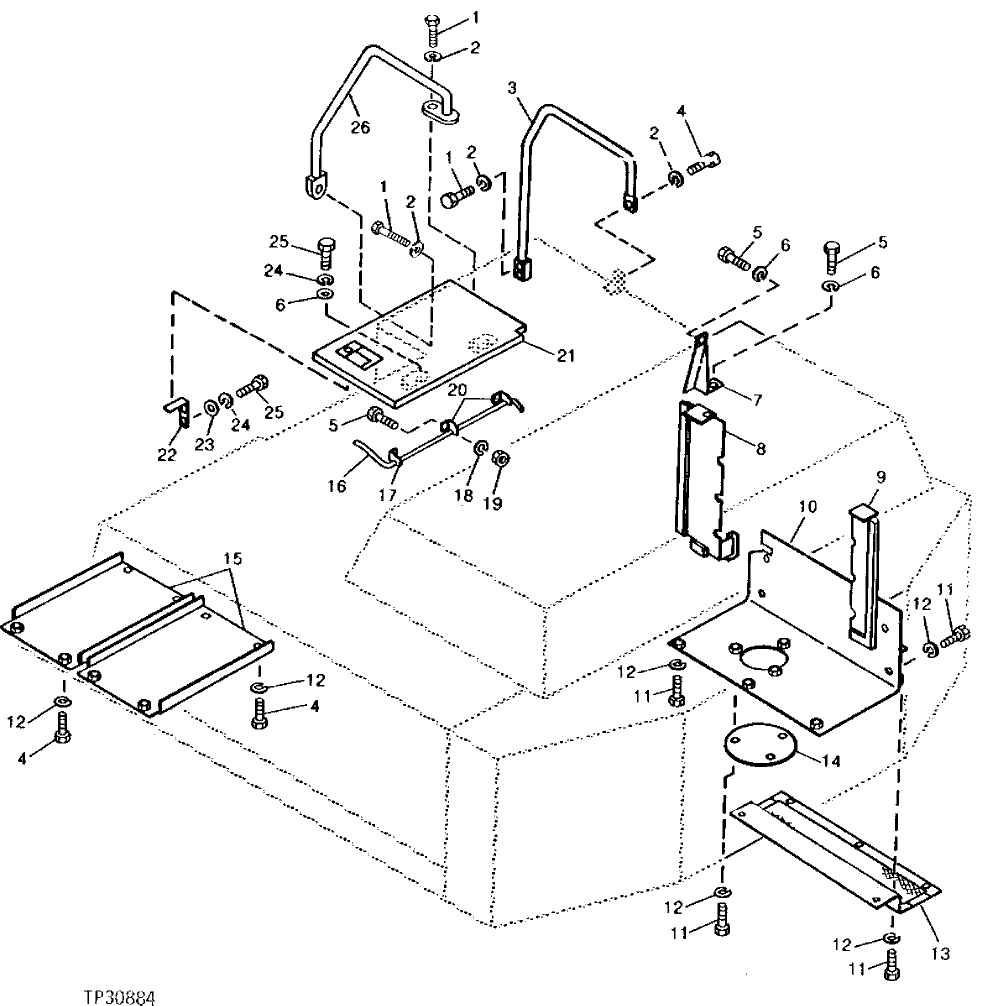

Запчасти John Deere 90 14 - COVERS AND HANDHOLDS 1910 - SHEET METAL AND STYLING 19

1

19M8011

CAP SCREW

M12 X 30

5шт.

2

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

6шт.

3

7014073

HANDRAIL

(SUB FOR TH102223)

1шт.

4

19M7872

CAP SCREW

M12 X 25

9шт.

5

19M7938

CAP SCREW

M10 X 20

5шт.

6

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH100263)

6шт.

7

8031740

COVER

(SUB FOR TH102217)

1шт.

8

8028939

PLATE

(SUB FOR TH102215)

1шт.

8035352

PLATE

(SUB FOR TH106990)

1шт.

9

8028938

PLATE

(SUB FOR TH102216)

1шт.

8028940

PLATE

(SUB FOR TH103062)

1шт.

10

7014003

COVER

(SUB FOR TH102212) (SUB FOR TH106398)

1шт.

7016865

COVER

(SUB FOR TH106781) (NOT ILLUSTRATED)

1шт.

11

19M8017

CAP SCREW

M12 X 20

22шт.

12

24M7047

WASHER

13 X 24 X 2.500 MM, (SUB FOR TH100967)

22шт.

13

8028498

COVER

(SUB FOR TH102213)

1шт.

8035349

COVER

(SUB FOR TH106988)

1шт.

14

4151791

COVER

(SUB FOR TH102211)

1шт.

15

8026713

PLATE

(SUB FOR TH102214)

2шт.

16

4093809

ROD

(SUB FOR TH102220)

1шт.

17

4093811

ANGLE

(SUB FOR TH102222)

1шт.

18

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

3шт.

19

14M7274

NUT

M10

3шт.

20

4093810

ANGLE

(SUB FOR TH102221)

2шт.

21

7013769

COVER

(SUB FOR TH102218)

1шт.

LOCK

(SUB AT214010) ( AT115741 NO LONGER AVAILABLE)

1шт.

22

4145575

ANGLE

(SUB FOR TH102219)

1шт.

23

24M7055

WASHER

8.400 X 16 X 1.600 MM, (SUB FOR TH100280)

2шт.

24

12M7056

LOCK WASHER

8 MM, (SUB FOR TH100529) (SUB FOR 12M7065)

6шт.

25

19M7376

CAP SCREW

M8 X 22

4шт.

26

7015109

HANDRAIL

(SUB FOR TH103463)

1шт.
