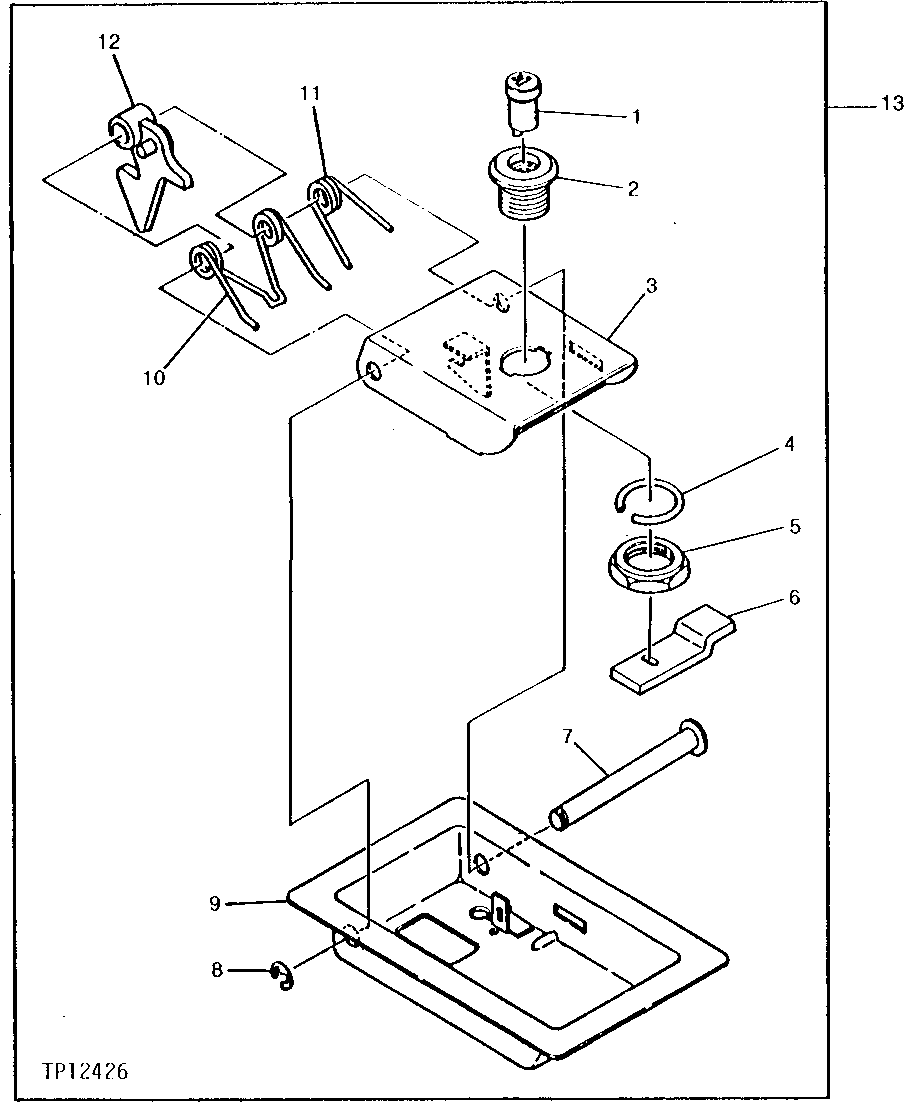

Запчасти John Deere 90 12 - DOOR LOCK 1910 - SHEET METAL AND STYLING 19

1

4134327

LOCK

(USE WITH TH102240) (SUB FOR TH102235) (USE 600 KEY)

1шт.

4361411

LOCK

(USE WITH AT115741) (SUB FOR TH110128) (SUB FOR AT206102) (USES H800 KEY)

1шт.

4158653

KEY

(SUB FOR TH101605) (600)

1шт.

AT194969

KEY

(SUB FOR AT147803) (H800)

1шт.

2

4134325

LOCK

(SUB FOR TH102236)

1шт.

3

4355969

LATCH

(SUB FOR TH102242)

1шт.

4

4355979

RING

(SUB FOR TH102237, 4134322)

1шт.

5

4355980

NUT

(SUB FOR TH102238, 4134323)

1шт.

6

4355981

STRAP

(SUB FOR TH102232, 4134331)

1шт.

7

4355972

PIN FASTENER

(SUB FOR TH102230)

1шт.

8

CH11490

RING

(SUB FOR TH102231)

1шт.

9

8024490

COVER

(SUB FOR TH102241)

1шт.

10

4134319

TORSION SPRING

(SUB FOR TH102233) (USE WITH TH102240 LOCK)

1шт.

4355973

SPRING

(SUB FOR AT173242) (USE WITH AT115741 LOCK)

1шт.

11

4355974

TORSION SPRING

(SUB FOR TH102243)

1шт.

12

LEVER

( TH102229 NO LONGER AVAILABLE)

1шт.

13

LOCK

(SUB FOR TH102240) (SUB AT214010) ( AT115741 NO LONGER AVAILABLE)

1шт.
