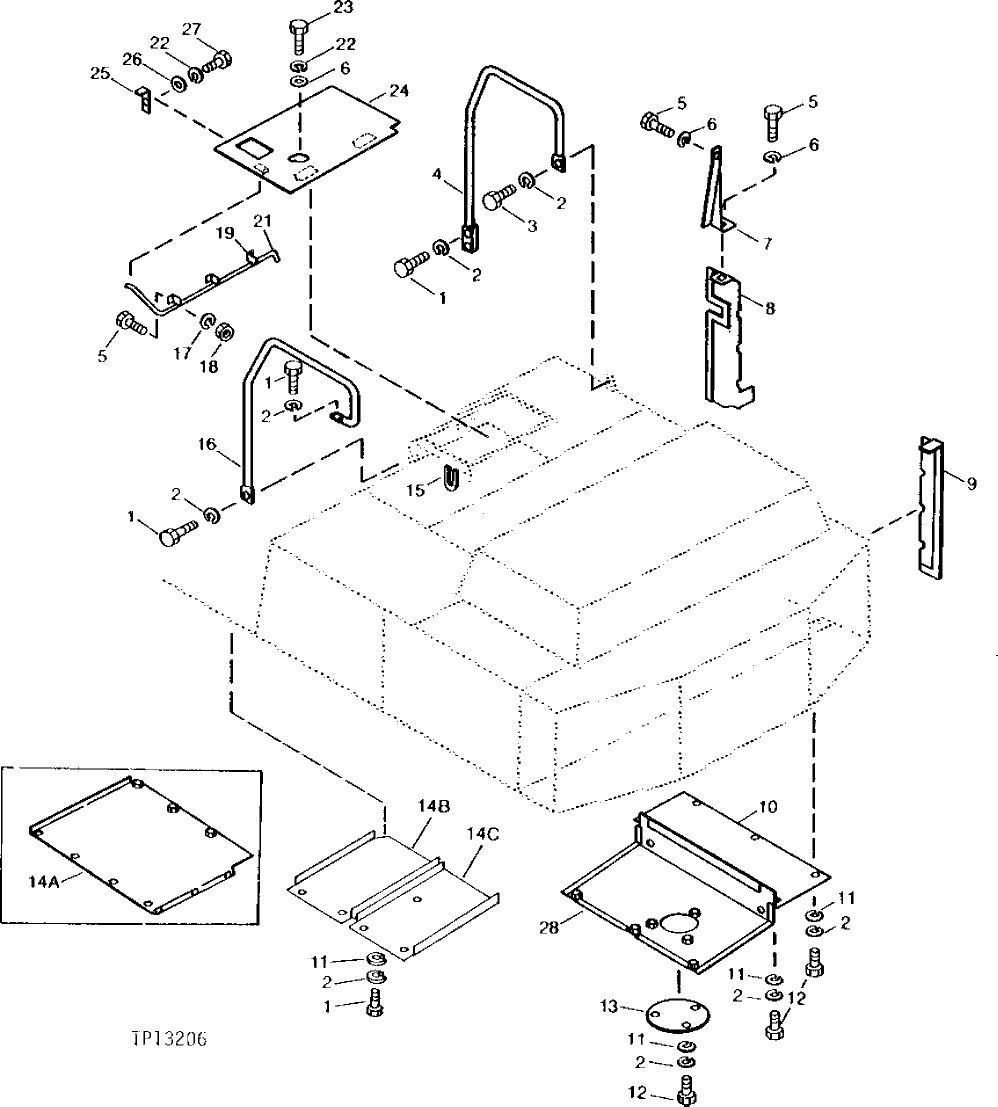

Запчасти John Deere 90 8 - COVERS AND HANDHOLDS 1910 - SHEET METAL AND STYLING 19

1

19M8011

CAP SCREW

M12 X 30

12шт.

2

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

49шт.

3

19M7872

CAP SCREW

M12 X 25

19шт.

4

7014073

HANDRAIL

(SUB FOR TH102223)

1шт.

5

19M7938

CAP SCREW

M10 X 20

5шт.

6

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH100263)

6шт.

7

8031740

COVER

(SUB FOR TH102217)

1шт.

8

8028941

PLATE

(SUB FOR TH103063)

1шт.

9

8028940

PLATE

(SUB FOR TH103062)

1шт.

10

8028942

COVER

(SUB FOR TH103065)

1шт.

11

24M7047

WASHER

13 X 24 X 2.500 MM, (SUB FOR TH100967)

22шт.

12

19M8017

CAP SCREW

M12 X 20

22шт.

13

4151791

COVER

(SUB FOR TH102211)

1шт.

14A

PLATE

(SUB TH103494)

1шт.

14B

8032202

PLATE

(SUB FOR TH103494)

1шт.

14C

8031907

PLATE

(SUB FOR TH103495)

1шт.

15

TH103068

GROMMET

1шт.

16

7013793

HANDRAIL

(SUB FOR TH103069)

1шт.

17

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

3шт.

18

14M7274

NUT

M10

3шт.

19

4093810

ANGLE

(SUB FOR TH102221)

2шт.

20

4093811

ANGLE

(SUB FOR TH102222)

1шт.

21

4093809

ROD

(SUB FOR TH102220)

1шт.

22

12M7056

LOCK WASHER

(SUB FOR TH100529) (SUB FOR 12M7065)

6шт.

23

19M7376

CAP SCREW

M8 X 22

4шт.

24

7013769

COVER

(SUB FOR TH102218)

1шт.

25

4145576

ANGLE

(SUB FOR TH103067)

1шт.

26

24M7055

WASHER

8.400 X 16 X 1.600 MM, (SUB FOR TH100280)

2шт.

27

19M7932

CAP SCREW

M8 X 16

2шт.

28

7014004

COVER

(SUB FOR TH103064)

1шт.
