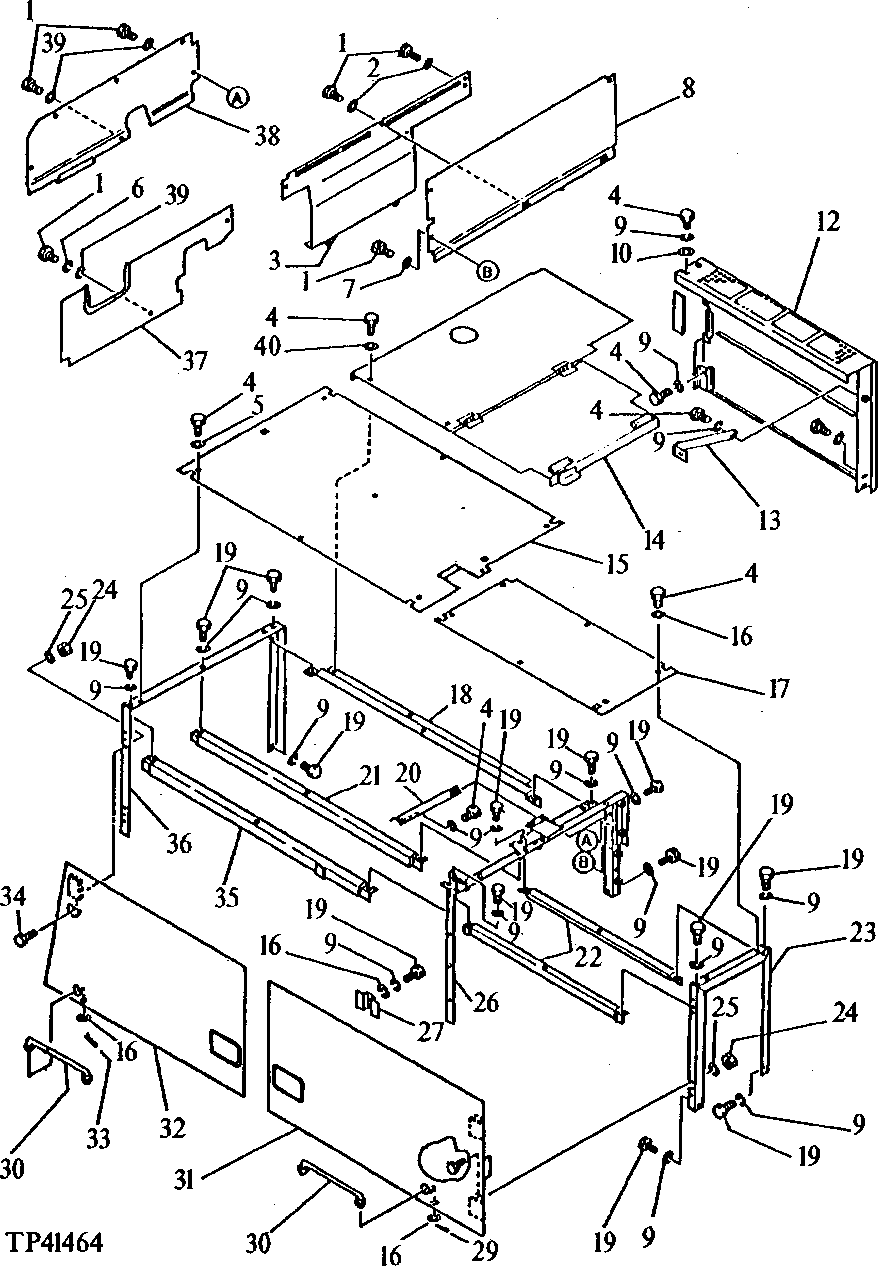

Запчасти John Deere 90 6 - SERVICE DOORS AND COVERS 1910 - SHEET METAL AND STYLING 19
№
Артикул
Название
Примечание
Количество
1
19M8017
CAP SCREW
M12 X 20
17шт.
2
24M7047
WASHER
13 X 24 X 2.500 MM, (SUB FOR TH100967)
2шт.
3
8026444
PLATE
(SUB FOR TH103058)
1шт.
4
19M8017
CAP SCREW
23шт.
5
24M7047
WASHER
13 X 24 X 2.500 MM, (SUB FOR TH100967)
14шт.
6
12H301
LOCK WASHER
1/2", (SUB FOR TH100413)
1шт.
7
24M7047
WASHER
13 X 24 X 2.500 MM, (SUB FOR TH100967)
3шт.
8
8027198
COVER
(SUB FOR TH103059) (SUB FOR TH106767)
1шт.
9
12H301
LOCK WASHER
1/2", (SUB FOR TH100413)
25шт.
10
24M7047
WASHER
13 X 24 X 2.500 MM
15шт.
11
4128399
PLATE
(SUB FOR TH102209)
1шт.
12
7013642
COVER
(SUB FOR TH103055)
1шт.
13
4164022
SUPPORT
(SUB FOR TH103054)
1шт.
14
7014530
COVER
(SUB FOR TH103060)
1шт.
15
7013701
COVER
(SUB FOR TH103050)
1шт.
16
24M7047
WASHER
13 X 24 X 2.500 MM, (SUB FOR TH100967)
6шт.
17
7013156
COVER
(SUB FOR TH103051)
1шт.
18
8030087
SUPPORT
(SUB FOR TH103046)
1шт.
19
19M7872
CAP SCREW
M12 X 25
19шт.
20
9719318
SUPPORT
(SUB FOR TH103045)
1шт.
21
9719320
SUPPORT
(SUB FOR TH103047)
1шт.
22
9717901
SUPPORT
(SUB FOR TH103049)
2шт.
23
8026441
SUPPORT
(SUB FOR TH103044)
1шт.
24
14M7274
NUT
M10
12шт.
26
7013702
SUPPORT
(SUB FOR TH103043)
1шт.
27
TH102200
STOP
2шт.
29
R50647
SPRING LOCKING PIN
(SUB FOR TH101244)
1шт.
30
9707254
ROD
(SUB FOR TH101245)
2шт.
31
6006293
DOOR
(SUB FOR TH103053)
1шт.
32
6006294
DOOR
(SUB FOR TH103052)
1шт.
33
R50647
SPRING LOCKING PIN
(SUB FOR TH101244)
1шт.
35
9719319
SUPPORT
(SUB FOR TH103048)
1шт.
36
8028195
SUPPORT
(SUB FOR TH103042)
1шт.
37
8028076
COVER
(SUB FOR TH103056)
1шт.
38
8028937
COVER
(SUB FOR TH103057)
1шт.
39
24M7047
WASHER
13 X 24 X 2.500 MM, (SUB FOR TH100967)
12шт.
40
24M7047
WASHER
13 X 24 X 2.500 MM
3шт.
24H1748
WASHER
1/2" X 1-1/4" X 0.105"
3шт.
Выбрано товаров: 41
