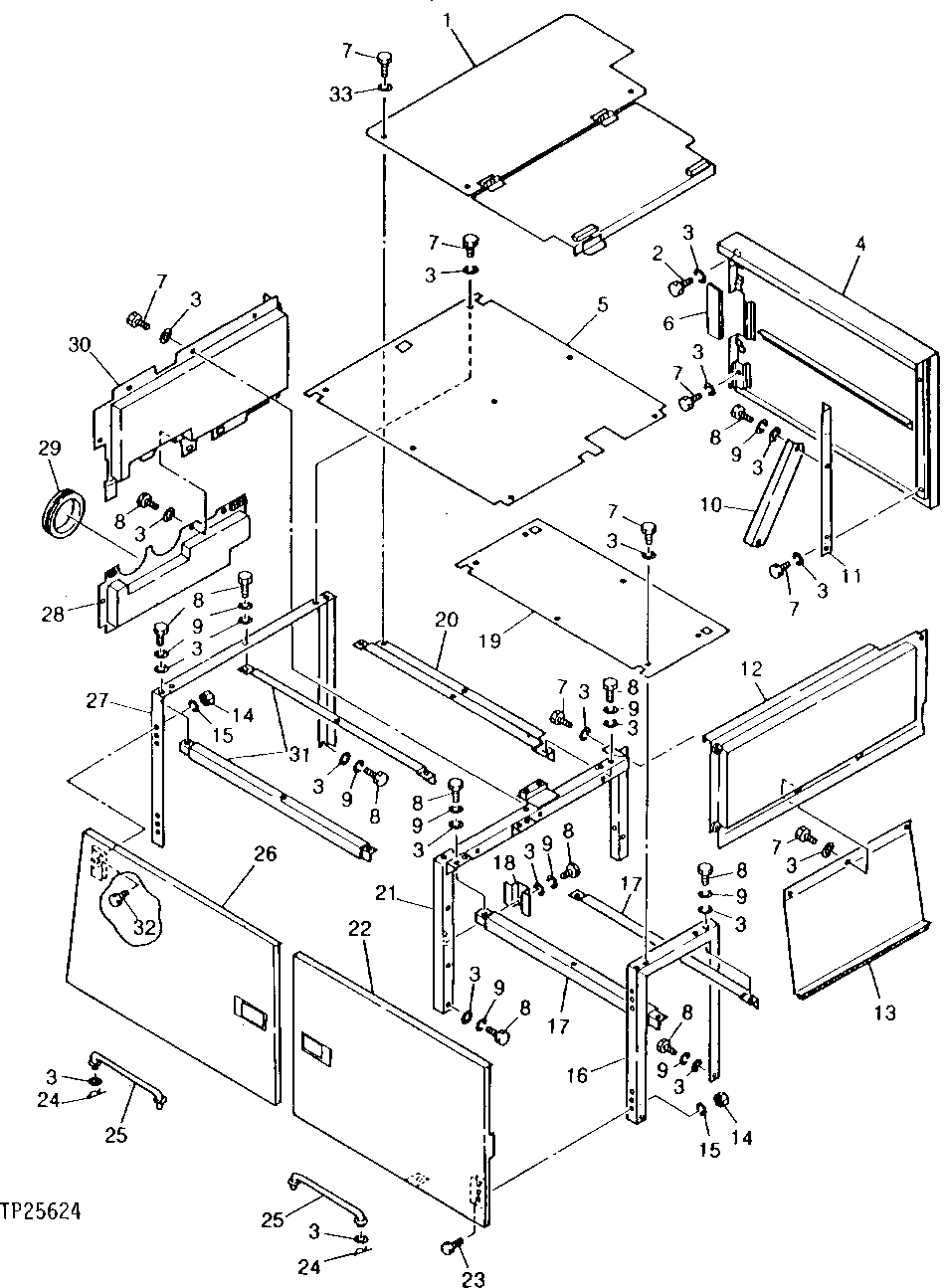

Запчасти John Deere 90 4 - SERVICE DOORS AND COVERS 1910 - SHEET METAL AND STYLING 19

1

7014000

COVER

(SUB FOR TH102197)

1шт.

2

19M7496

CAP SCREW

M12 X 45

1шт.

3

24M7047

WASHER

13 X 24 X 2.500 MM, (SUB FOR TH100967)

59шт.

4

7012921

COVER

(SUB FOR TH102203)

1шт.

5

7013364

COVER

(SUB FOR TH102195)

1шт.

6

4128399

PLATE

(SUB FOR TH102209)

1шт.

7

19M8017

CAP SCREW

M12 X 20

35шт.

8

19M7872

CAP SCREW

M12 X 25

24шт.

9

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

32шт.

10

4158415

SUPPORT

(SUB FOR TH102202)

1шт.

11

9720175

SUPPORT

(SUB FOR TH102201)

1шт.

12

7014220

COVER

(SUB FOR TH102206) (SUB FOR TH106972)

1шт.

13

8029479

COVER

(SUB FOR TH102207)

1шт.

14

14M7274

NUT

M10

12шт.

15

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

12шт.

16

8026710

SUPPORT

(SUB FOR TH102191)

1шт.

17

TH102194

SUPPORT

2шт.

18

TH102200

STOP

2шт.

19

8027525

COVER

(SUB FOR TH102196)

1шт.

20

8029478

SUPPORT

(SUB FOR TH102193)

1шт.

21

7012918

SUPPORT

(SUB FOR TH102190)

1шт.

22

6006143

DOOR

(SUB FOR TH102199)

1шт.

23

19M7938

CAP SCREW

M10 X 20

6шт.

24

R50647

SPRING LOCKING PIN

(SUB FOR TH101244)

2шт.

25

9707254

ROD

(SUB FOR TH101245)

2шт.

26

6006144

DOOR

(SUB FOR TH102198)

1шт.

27

8029491

SUPPORT

(SUB FOR TH102189)

1шт.

28

7014002

COVER

(SUB FOR TH102204)

1шт.

29

4075565

GROMMET

(SUB FOR TH102208)

2шт.

30

7014001

COVER

(SUB FOR TH102205)

1шт.

31

9718046

SUPPORT

(SUB FOR TH102192)

2шт.

32

19M7938

CAP SCREW

6шт.

33

24H1748

WASHER

1/2" X 1-1/4" X 0.105", (SUB FOR TH101254)

3шт.
