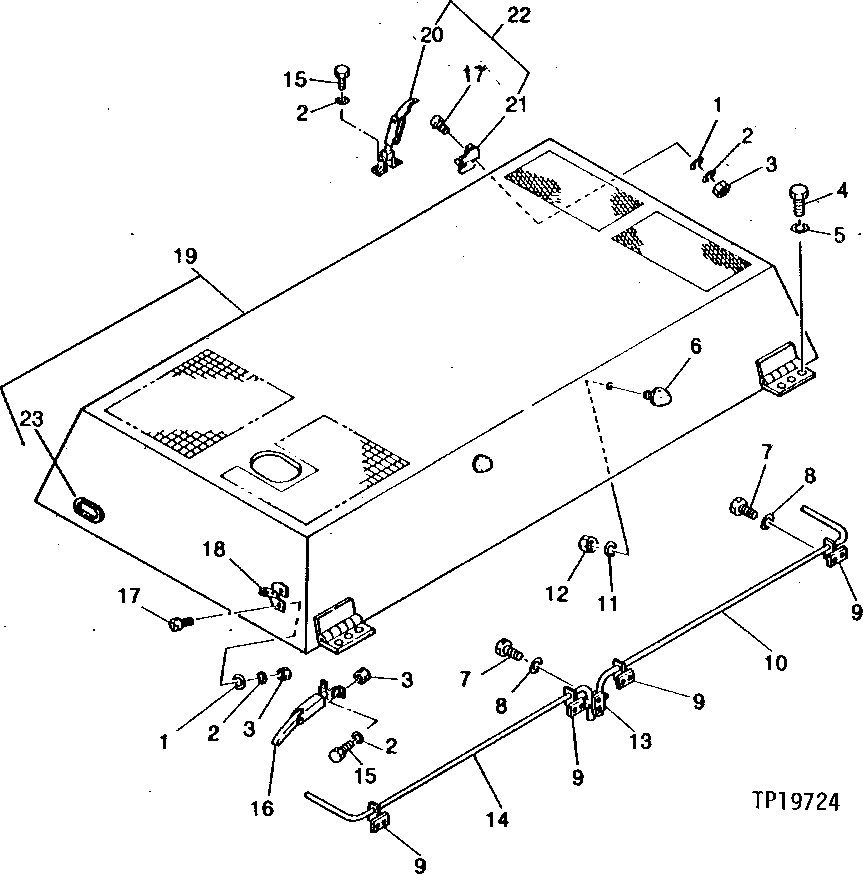

Запчасти John Deere 90 2 - ENGINE COVER 1910 - SHEET METAL AND STYLING 19

1

24M7055

WASHER

8.400 X 16 X 1.600 MM, (SUB FOR TH100280)

6шт.

2

12M7056

LOCK WASHER

8 MM, (SUB FOR TH100529) (SUB FOR 12M7065)

12шт.

3

14M7273

NUT

M8

8шт.

4

19M7872

CAP SCREW

M12 X 25

6шт.

5

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

6шт.

6

4204586

STOP

(SUB FOR 487195) (ALSO ORDER (2) 14M7274)

2шт.

7

19M3142

CAP SCREW

M10 X 18, (SUB FOR TH102164)

10шт.

8

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

10шт.

9

TH101259

CLAMP

4шт.

10

4151788

ROD

(SUB FOR TH102249)

1шт.

11

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

2шт.

12

14M7274

NUT

M10, (SUB FOR TH100255 OR 14M7444 OR TH104196)

2шт.

13

TH102251

CLAMP

1шт.

14

4151789

ROD

(SUB FOR TH102250)

1шт.

15

19M7932

CAP SCREW

M8 X 16

6шт.

16

4361455

CATCH

(SUB FOR TH101264, 322831)

1шт.

17

21M7397

SCREW

(SUB FOR TH102248)

6шт.

18

4119658

ANCHOR

(SUB FOR TH101265)

1шт.

19

5001567

COVER

(SUB FOR TH102245)

1шт.

20

3021130

CATCH

(SUB FOR TH102246)

1шт.

21

3021131

ANCHOR

(SUB FOR TH102247)

1шт.

22

CATCH

(SUB TH102246, TH102247 AND 21M7397)

2шт.

23

4055843

GROMMET

(SUB FOR TH108084)

1шт.
