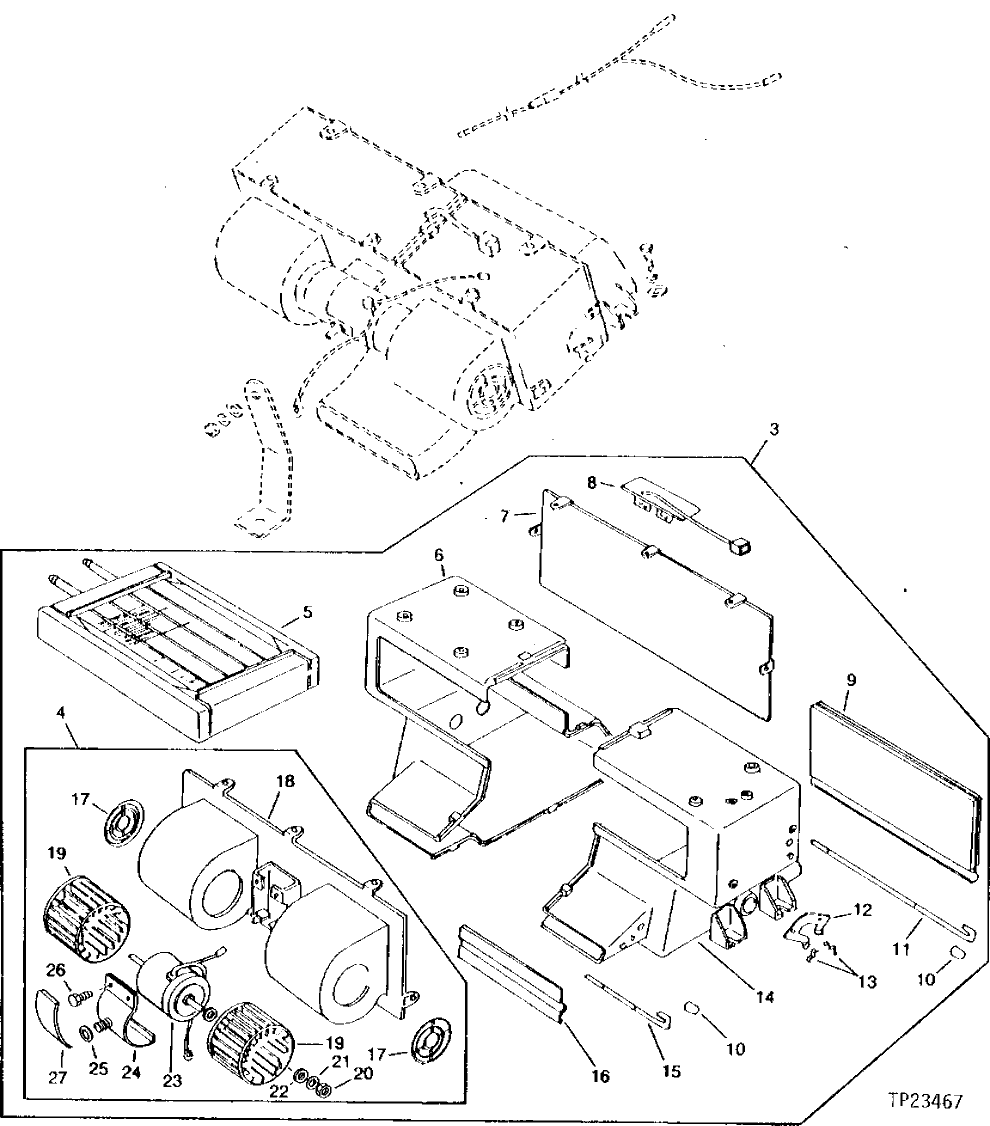

Запчасти John Deere 90 14 - HEATER 1830 - OPERATORS STATION 18

3

4173750

HEATER

(SUB FOR TH105571) (13,500 BTU)

1шт.

4

CASE

(WITH MOTOR AND BLOWER) (USE TH101684 IF AVAILABLE)

1шт.

5

CORE

(SUB FOR TH101676) ( TH110251 NO LONGER AVAILABLE)

1шт.

6

CASE

(SUB TH105571)

1шт.

7

COVER

( TH101683 NO LONGER AVAILABLE)

1шт.

8

0228114

RESISTOR

(SUB FOR TH101682)

1шт.

9

TORSIONAL DAMPER

( TH101680 NO LONGER AVAILABLE)

1шт.

10

KNOB

( TH101679 NO LONGER AVAILABLE)

2шт.

11

SHAFT

( TH101677 NO LONGER AVAILABLE)

1шт.

12

GUIDE

( TH101690 NO LONGER AVAILABLE)

1шт.

13

0228124

SPRING

(SUB FOR TH101691)

2шт.

14

CASE

(SUB TH105571)

1шт.

15

SHAFT

( TH101678 NO LONGER AVAILABLE)

1шт.

16

TORSIONAL DAMPER

( TH101681 NO LONGER AVAILABLE)

1шт.

17

0228122

GRILLE

(SUB FOR TH101689)

2шт.

18

HOUSING

1шт.

19

0228121

FAN

(SUB FOR TH101688)

2шт.

20

14M7297

NUT

M5

2шт.

21

0311503

WASHER

(SUB FOR TH108797)

2шт.

22

0311502

WASHER

(SUB FOR TH108796)

2шт.

23

0228120

BLOWER MOTOR

(SUB FOR TH101687)

1шт.

24

COVER

( TH101685 NO LONGER AVAILABLE)

1шт.

25

0311506

TORSIONAL DAMPER

(SUB FOR TH108801)

1шт.

26

0311501

SCREW

(SUB FOR TH108795)

2шт.

R48698

WASHER

(SUB FOR TH108798 OR 0311504)

2шт.

27

CUSHION

( TH108800 NO LONGER AVAILABLE)

1шт.
