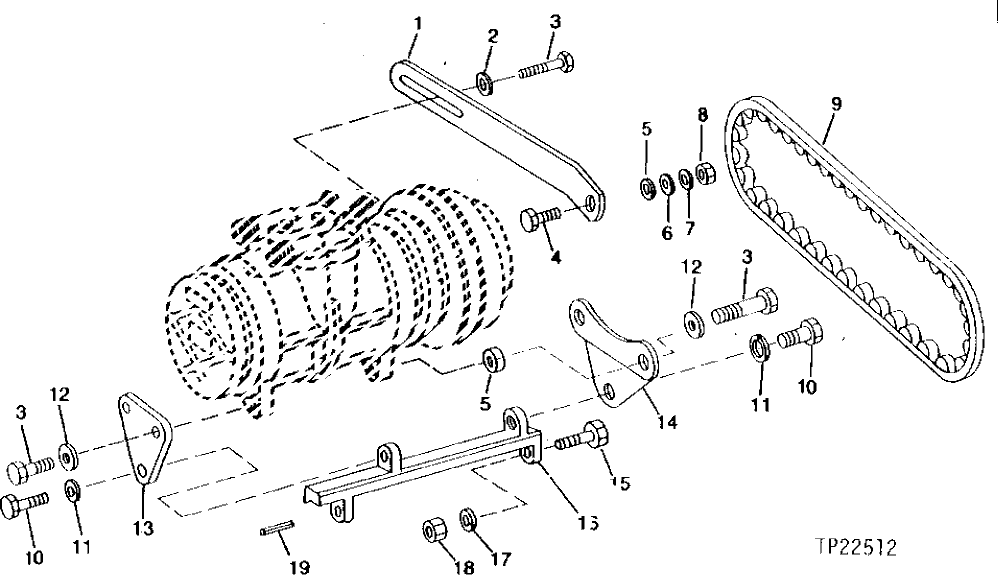

Запчасти John Deere 90 10 - AIR CONDITIONER COMPRESSOR AND MOUNTING BRACKETS 1830 - OPERATORS STATION 18

1

R73375

STRAP

1шт.

2

24H1884

WASHER

13/32" X 13/16" X 0.120"

1шт.

3

19M8007

CAP SCREW

M10 X 25

4шт.

19M8118

CAP SCREW

M10 X 35, ADJUSTING STRAP TO COMPRESSOR

1шт.

4

19M7164

CAP SCREW

M8 X 50

1шт.

5

24H1307

WASHER

13/32" X 1" X 1/16"

ARшт.

24M7296

WASHER

10.500 X 30 X 2.500 MM

1шт.

6

R56397

WASHER

1шт.

7

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

1шт.

8

14M7273

NUT

M8

1шт.

9

R73189

V-BELT

1шт.

10

19M8011

CAP SCREW

M12 X 30

2шт.

11

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

2шт.

12

12M7066

LOCK WASHER

10 MM

4шт.

13

R71197

BRACKET

1шт.

14

R71197

BRACKET

1шт.

15

19H2644

CAP SCREW

1/2" X 2-1/2"

1шт.

16

R71196

SUPPORT

1шт.

17

12H301

LOCK WASHER

1/2"

1шт.

18

14H1040

NUT

1/2"

1шт.

19

34H383

SPRING PIN

7/16" X 2-1/2"

1шт.
