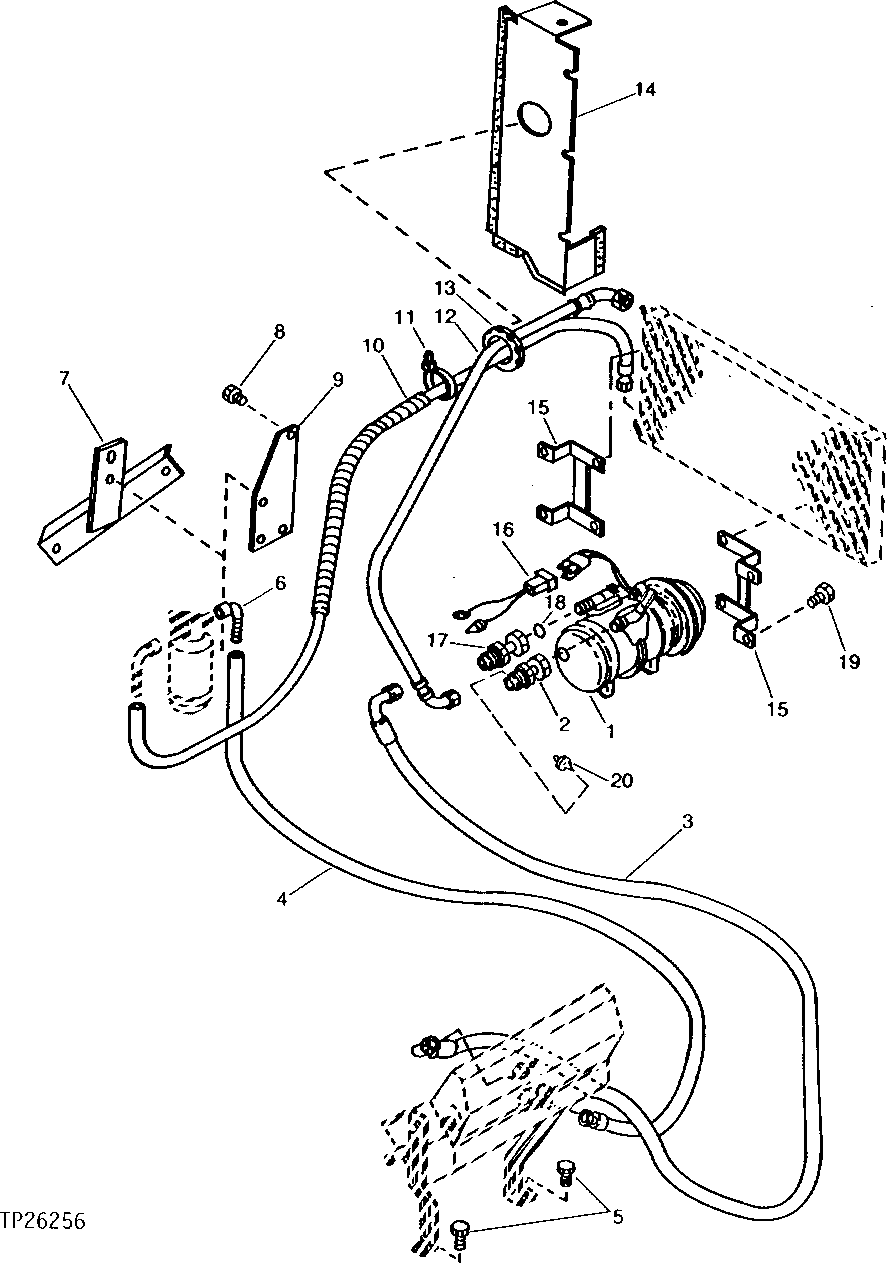

Запчасти John Deere 90 8 - AIR CONDITIONER 1830 - OPERATORS STATION 18

1

TY6744

COMPRESSOR

(REMANUFACTURED) (SUB FOR AT77894)

1шт.

SE501461

COMPRESSOR

(REMANUFACTURED FOR TY6744)

1шт.

2

9732797

ADAPTER FITTING

(SUB FOR TH112012) (SUB FOR TH101360, ALONG WITH TH112013)

1шт.

3

4079259

HOSE

(SUB FOR TH108174)

1шт.

4

TH106902

HOSE

1шт.

5

19M7402

CAP SCREW

M10 X 25

2шт.

6

4121984

ADAPTER FITTING

(SUB FOR TH106901)

1шт.

7

9719917

BRACKET

(SUB FOR TH108176)

1шт.

8

19M7872

CAP SCREW

M12 X 25

1шт.

9

4160345

PLATE

(SUB FOR TH108099)

1шт.

10

HOSE GUARD

(MAKE FROM AT138222 BULK MATERIAL, CUT TO LENGTH)

4шт.

11

H77698

TIE BAND

(SUB FOR T44946)

ARшт.

12

4087904

HOSE

(SUB FOR TH108173)

1шт.

13

94-2812

GROMMET

(SUB FOR TH108102)

1шт.

14

8029096

SHROUD

(SUB FOR TH108172)

1шт.

8028939

PLATE

(SUB FOR TH102215)

1шт.

8035352

PLATE

(SUB FOR TH106990)

1шт.

15

8028637

BRACKET

(SUB FOR TH108106)

2шт.

8027024

BRACKET

(SUB FOR TH108105)

2шт.

8028637

BRACKET

(SUB FOR TH108106)

2шт.

16

4176305

WIRING HARNESS

(SUB FOR TH106904)

1шт.

17

9719777

HOSE FITTING

(SUB FOR TH101362)

1шт.

18

R33259

O-RING

(SUB FOR TH101363)

1шт.

19

19M7662

CAP SCREW

M10 X 30, (SUB FOR TH105687)

4шт.

20

4244612

CHECK VALVE

(SUB FOR TH112013)

1шт.
