Запчасти John Deere 90 2 - SEAT AND SEAT SUPPORT 1821 - OPERATORS STATION 18

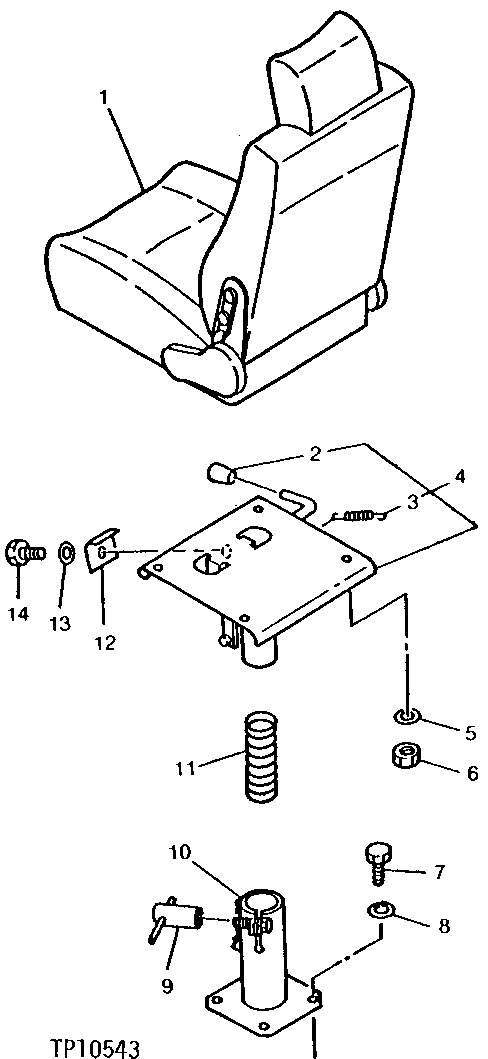

Схема запчастей John Deere 90 - 2 - SEAT AND SEAT SUPPORT 1821 - OPERATORS STATION 18

Артикул

Название

Примечание

Количество

1

4230833

SEAT

(SUB FOR TH112076) (CLOTH) (SUB FOR TH100641 VINYL SEAT)

1шт.

2

3030267

GRIP

(SUB FOR TH101615)

1шт.

3

3030268

EXTENSION SPRING

(SUB FOR TH101616)

1шт.

4

2019783

SUPPORT

(SUB FOR TH101614)

1шт.

5

12M7056

LOCK WASHER

8 MM, (SUB FOR TH100529) (SUB FOR 12M7065)

4шт.

6

14M7273

NUT

M8

4шт.

7

19M7402

CAP SCREW

M10 X 25

4шт.

8

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

4шт.

9

TH101612

HANDLE

1шт.

10

2019782

STAND

(SUB FOR TH101608)

1шт.

11

3030270

SPRING

(SUB FOR TH101613)

1шт.

12

3030271

ANGLE

(SUB FOR TH101617)

1шт.

13

24M7055

WASHER

8.400 X 16 X 1.600 MM

1шт.

14

19M7932

CAP SCREW

M8 X 16

1шт.

Выбрано товаров: 14
