Запчасти John Deere 90 6 - CONSOLE AND SWITCHES 1810 - OPERATORS STATION 18

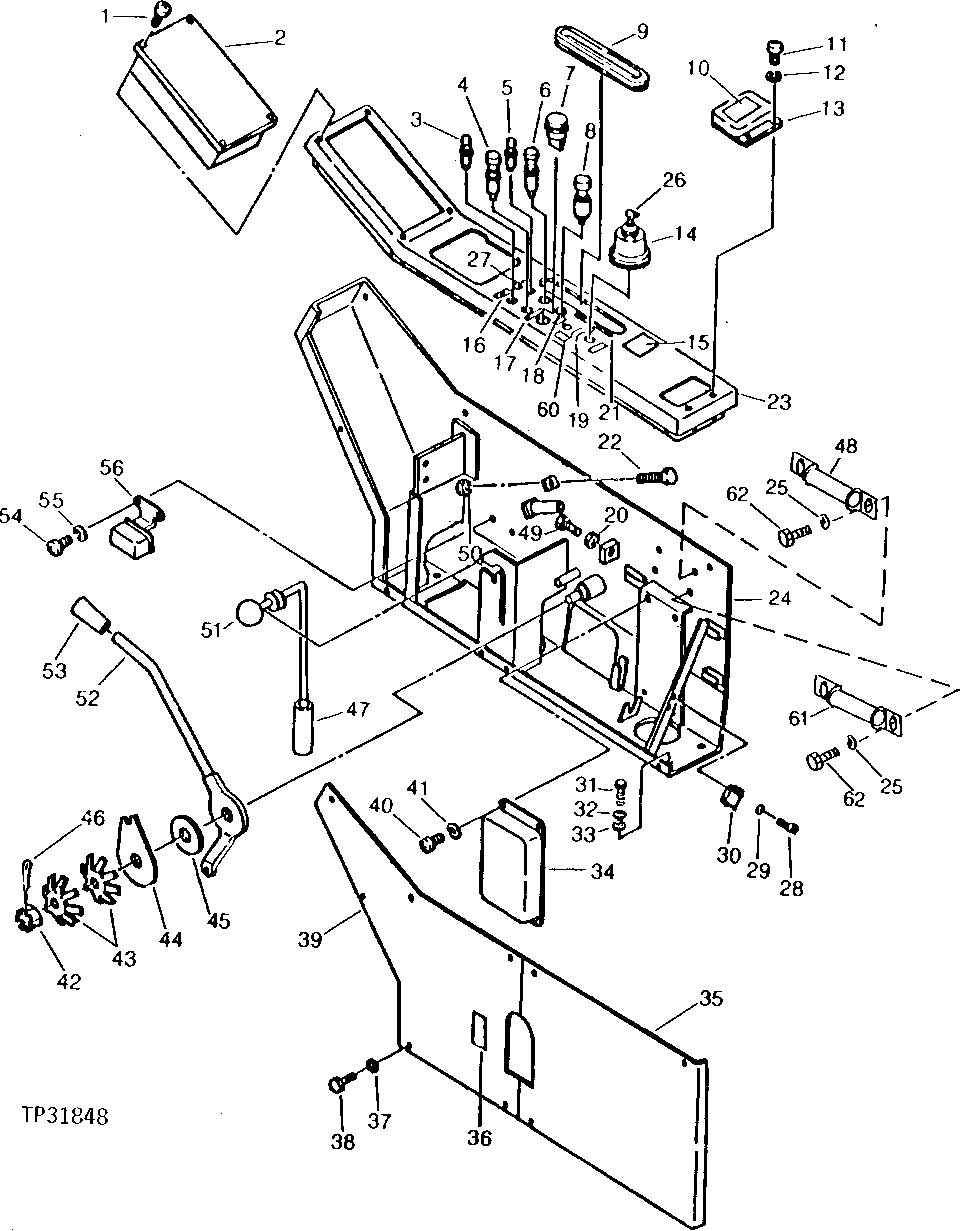

Схема запчастей John Deere 90 - 6 - CONSOLE AND SWITCHES 1810 - OPERATORS STATION 18

Артикул

Название

Примечание

Количество

27

4192738

LABEL

(SUB FOR TH100593) BUZZER STOP

1шт.

28

21M7278

SCREW

M5 X 10

2шт.

29

12M7064

LOCK WASHER

5 MM, (SUB FOR TH100519)

2шт.

30

4038459

RELAY

(SUB FOR TH102138) HOURMETER

1шт.

31

19M7402

CAP SCREW

M10 X 25

6шт.

32

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

6шт.

33

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH100263)

6шт.

34

4129244

MICROPROCESSOR

(SUB FOR TH100592)

1шт.

35

2020107

COVER

(SUB FOR TH102133)

1шт.

36

4147525

LABEL

(SUB FOR TH100597) SWING LOCK

1шт.

37

24M7250

WASHER

6.400 X 17 X 3 MM, (SUB FOR TH100560)

14шт.

38

19M7300

CAP SCREW

M6 X 10

14шт.

39

2020108

COVER

(SUB FOR TH102132)

1шт.

40

21M7285

SCREW

M6 X 12, (SUB FOR TH102134)

4шт.

41

12M7006

LOCK WASHER

6 MM, (SUB FOR TH100548)

4шт.

42

M631619

NUT

(SUB FOR TH100565)

1шт.

43

4502974

WASHER

(SUB FOR TH100564)

2шт.

44

4053155

PLATE

(SUB FOR TH100563)

1шт.

45

428770

WASHER

(SUB FOR TH100562)

1шт.

46

11M7087

COTTER PIN

4 X 40 MM, (SUB FOR TH100566) (SUB FOR 11M7023)

1шт.

47

8026397

PIN

(SUB FOR TH102140) SWING

1шт.

48

AU42809

RESISTOR

(CONTROL BOX)

1шт.

49

TH100567

BOLT

1шт.

50

14M7274

NUT

M10, (SUB FOR TH102127)

2шт.

51

4143169

KNOB

(SUB FOR TH100268)

1шт.

52

8026617

LEVER

(SUB FOR TH100587) (THROTTLE)

1шт.

53

4162336

GRIP

(SUB FOR TH100561)

1шт.

TH100586

GROMMET

1шт.

54

21M7288

SCREW

M6 X 10, (SUB FOR TH100547)

2шт.

55

12M7006

LOCK WASHER

6 MM, (SUB FOR TH100548)

2шт.

56

4505392

RELAY

(SUB FOR TH100585) HORN

1шт.

60

4171727

LABEL

(SUB FOR TH104059) (SUB FOR TH103461)

1шт.

61

4155754

RESISTOR

(SUB FOR TH101583) ALTERNATOR EXCITATION

1шт.

62

21M7394

SCREW

M3 X 10, (SUB FOR TH100579)

4шт.

Выбрано товаров: 34
