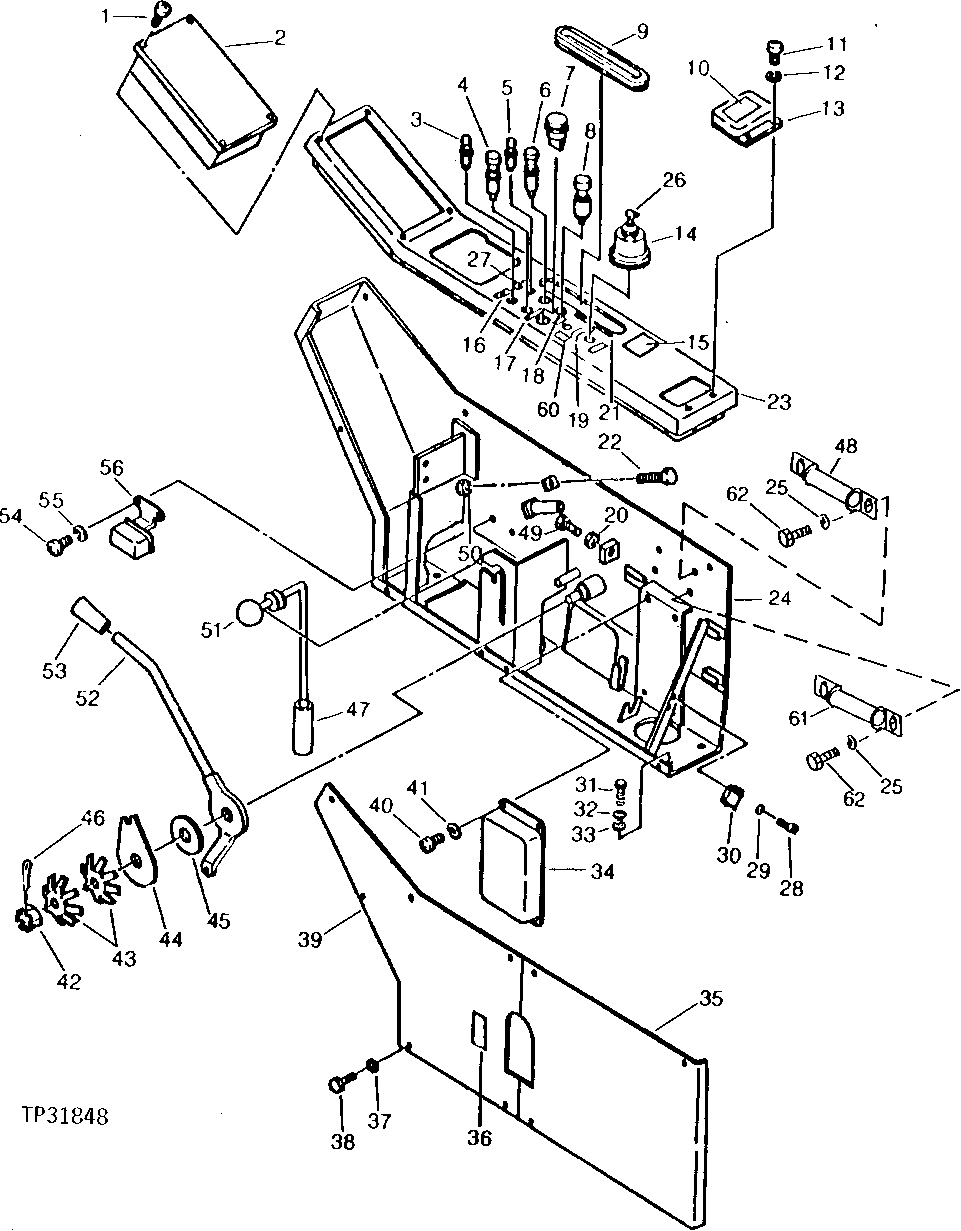

Запчасти John Deere 90 4 - CONSOLE AND SWITCHES 1810 - OPERATORS STATION 18

1

21M7326

SCREW

M6 X 20, (SUB FOR TH100573)

4шт.

2

4156636

PANEL

(SUB FOR TH102126)

1шт.

57M7169

BULB

(NOT ILLUSTRATED)

ARшт.

3

4266984

SWITCH

(SUB FOR TH102128) (SUB FOR TH100574) ENGINE OIL, HYDRAULIC OIL, COOLANT LEVEL

1шт.

4

4009556

SWITCH

(SUB FOR TH100576) WIPER

1шт.

5

4266984

SWITCH

(SUB FOR TH100574) BUZZER STOP

1шт.

6

4110106

SWITCH

(SUB FOR TH100575) WORK LIGHT

1шт.

7

4155755

SWITCH

(SUB FOR TH101582) START AID

1шт.

8

AR60937

ELECTRICAL LIGHTER

(12 VOLT)

1шт.

AU42809

RESISTOR

(12 VOLT)

1шт.

AT78633

HOUSING

(12 VOLT)

1шт.

AT78634

WIRING LEAD

(12 VOLT)

1шт.

4357862

ELECTRICAL LIGHTER

(SUB FOR AT190190) (24 VOLT)

1шт.

9

TH100586

GROMMET

1шт.

10

4165885

LABEL

(SUB FOR TH102137)

1шт.

4165885

LABEL

(SUB FOR TH102137)

1шт.

4173814

LABEL

(SUB FOR TH103454)

1шт.

4173814

LABEL

(SUB FOR TH103454)

1шт.

11

21M7246

SCREW

M6 X 16, (SUB FOR TH100583)

2шт.

12

24M7054

WASHER

6.400 X 12 X 1.600 MM, (SUB FOR TH100584)

2шт.

13

4123095

FUSE BOX

(SUB FOR TH100582)

1шт.

AT39227

FUSE

15-AMP, (SUB FOR TH104047) (NOT ILLUSTRATED)

7шт.

AH84167

FUSE

30-AMP, (SUB FOR TH104048) (NOT ILLUSTRATED)

1шт.

4202492

COVER

(SUB FOR TH110107) (NOT ILLUSTRATED)

1шт.

14

4237505

SWITCH

(SUB FOR TH102139, TH108551 OR 4186744) STARTING

1шт.

15

4121153

LABEL

(SUB FOR TH100577) HEATER

1шт.

16

4192737

LABEL

(SUB FOR TH102135) NAME PLATE

1шт.

17

4158722

SAFETY SIGN

(SUB FOR TH101585) EITHER STARTING AID

1шт.

18

4210039

LABEL

(SUB FOR TH102136) (SUB FOR TH111033) ENGINE STOP

1шт.

19

4156660

LABEL

(SUB FOR TH101586) STARTER SWITCH

1шт.

20

14M7274

NUT

M10, (SUB FOR TH102127)

1шт.

21

4146722

LABEL

(SUB FOR TH100596) FUEL LEVEL

1шт.

22

TH100567

BOLT

2шт.

23

6006924

PANEL

(SUB FOR TH102131)

1шт.

24

6007033

STAND

(SUB FOR TH102130)

1шт.

25

12H233

LOCK WASHER

3.175 MM, (SUB FOR TH100580) (SUB FOR 12M7048)

4шт.

26

4112457

KEY

(USE WITH TH102139) (SUB FOR TH103383)

1шт.

AT194969

KEY

(SUB FOR TH108552 AND AT147803) (USE WITH TH108551, 4186744 OR 4237505)

1шт.
