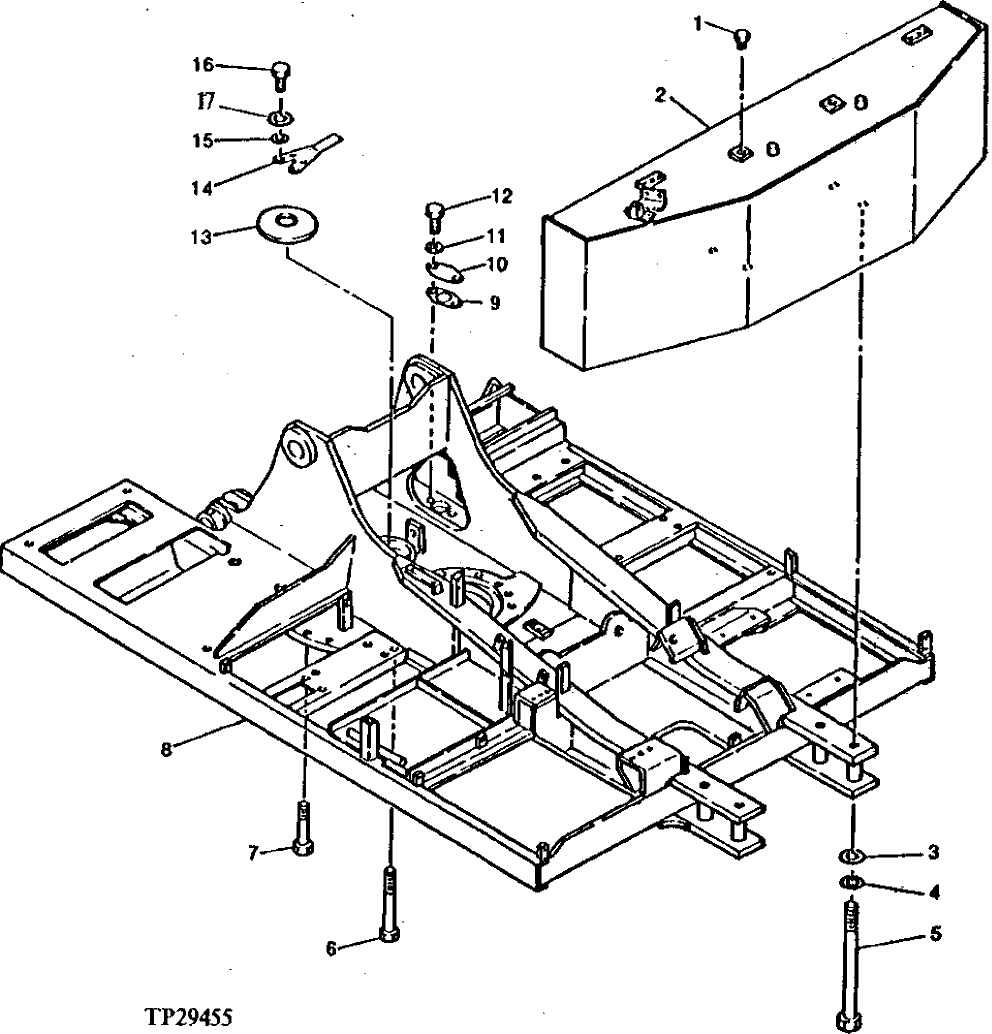

Запчасти John Deere 90 2 - FRAME 1740 - FRAMES, CHASSIS OR SUPPORTING STRUCTURE 17

1

4139583

CAP

(SUB FOR TH101721)

2шт.

4168132

CAP

(SUB FOR TH102874)

2шт.

2

COUNTERWEIGHT

( TH101719 NO LONGER AVAILABLE)

1шт.

COUNTERWEIGHT

( TH102873 NO LONGER AVAILABLE)

1шт.

3

4126485

BUSHING

(SUB FOR TH100627)

4шт.

4114408

WASHER

(SUB FOR TH102876) (SUB FOR TH103498)

4шт.

4

WASHER

4шт.

5

J932729

BOLT

(SUB FOR TH101718)

4шт.

J833029

BOLT

(SUB FOR TH102875)

4шт.

6

R94109

CAP SCREW

(SUB FOR TH101714)

30шт.

J932414

BOLT

(SUB FOR TH102872)

30шт.

7

J932405

BOLT

(SUB FOR TH102871)

1шт.

8

5001565

MAIN FRAME

(SUB FOR TH101713)

1шт.

5001563

MAIN FRAME

(SUB FOR TH102870)

1шт.

9

4157713

GASKET

(SUB FOR TH100632)

1шт.

10

4013896

COVER

(SUB FOR TH100633)

1шт.

11

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH100263)

2шт.

12

19M7938

CAP SCREW

M10 X 20

2шт.

13

4136796

ISOLATOR

(SUB FOR TH101715)

1шт.

14

4129028

STOP

(SUB FOR TH101716)

1шт.

15

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

4шт.

16

19M8765

SCREW

M12 X 28, (SUB FOR 19M3204) (SUB FOR TH101717, ALONG WITH 12M7058)

4шт.

17

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

4шт.
