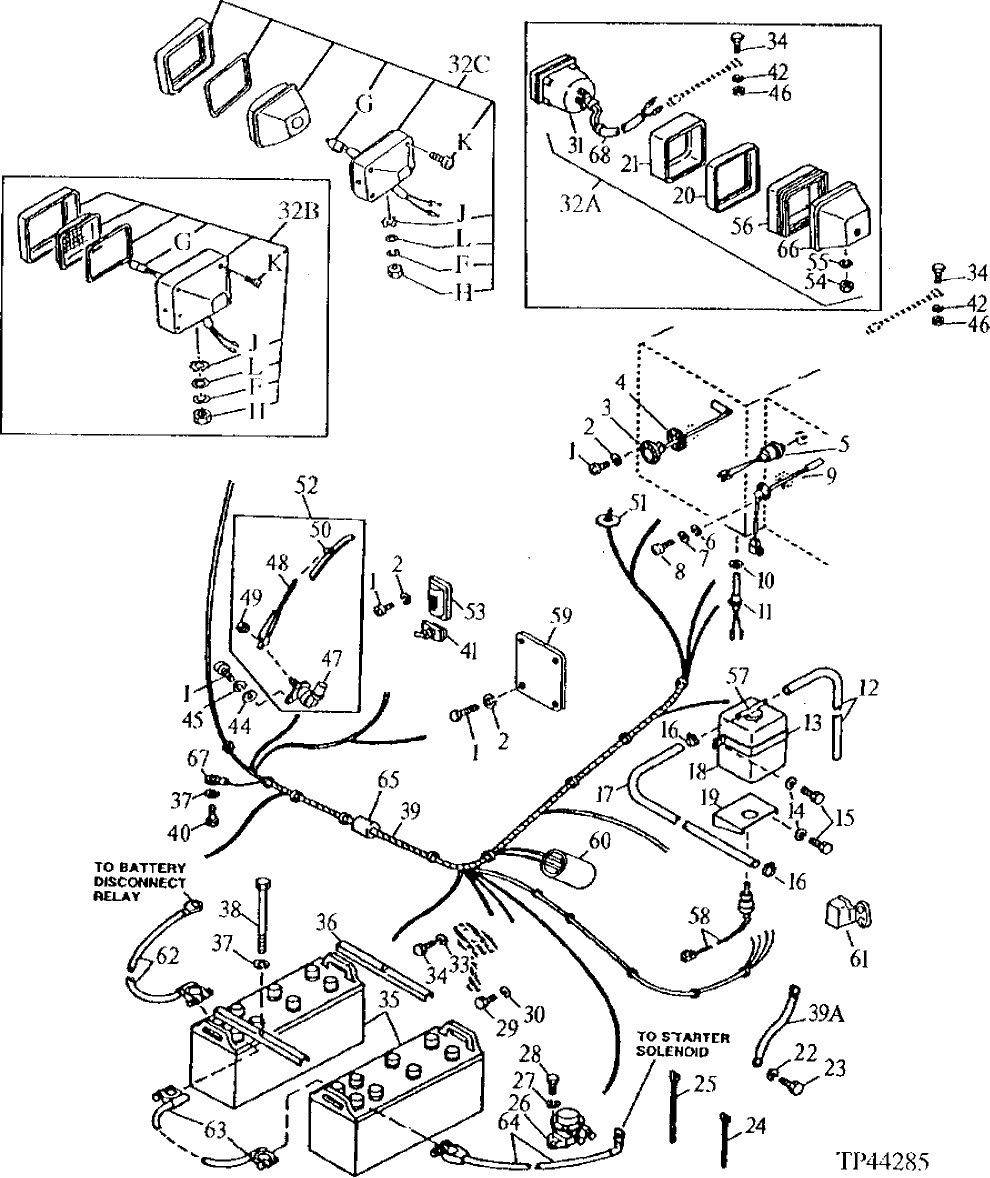

Запчасти John Deere 90 4 - ELECTRICAL PARTS 1674 - ELECTRICAL SYSTEMS 16

31

4163596

LAMP

(SUB FOR TH102150)

1шт.

32A

LAMP

(SUB AT165110) (SUB FOR TH102149)

2шт.

32B

LAMP

(SUB AT165110) (SUB FOR AT159146)

2шт.

32C

AT165110

LAMP

(SUB FOR AT176424, TH102149 OR AT159146)

2шт.

32F

12H317

LOCK WASHER

9/16"

1шт.

32G

AT135758

BULB

(SUB FOR AT159149)

1шт.

AT135758

BULB

(SUB FOR AT159149 OR AT154990)

1шт.

32H

J952014

NUT

(SUB FOR TH103791)

1шт.

32J

4307026

WASHER

(SUB FOR T144361)

1шт.

32K

37H19

SCREW

(SUB FOR T144362 OR 4307027)

1шт.

32L

24M7085

WASHER

15 X 28 X 2.500 MM

1шт.

33

12M7006

LOCK WASHER

6 MM, (SUB FOR TH100548)

1шт.

34

21M7285

SCREW

M6 X 12, (SUB FOR TH102134)

2шт.

35

TY21754

DRY CHARGED BATTERY

(SUB FOR TY6105)

2шт.

T103409

STRAP

HOLD DOWN BETWEEN BATTERY CLAMP ANGLES

1шт.

T79470

ANGLE

BATTERY CLAMP

2шт.

36

4145156

HOLDER

(SUB FOR TH102147)

2шт.

37

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

4шт.

38

4140208

BOLT

(SUB FOR TH102148)

2шт.

39

4213900

WIRING HARNESS

(SUB FOR TH105679) (SUB FOR TH102158) (SUB TH110114 ALONG WITH TH110115 MAIN HARNESS TO WIPER MOTOR)

1шт.

4213900

WIRING HARNESS

(SUB FOR TH103033) (SUB FOR TH110114) (INCLUDES GROUND STRAP)

1шт.

TH110115

WIRING HARNESS

(SUB FOR TH105677) (SUB TH110116 ALONG WITH TH110115) TH110115 FROM MAIN HARNESS TO WIPER MOTOR (NOT ILLUSTRATED)

1шт.

4213901

WIRING HARNESS

(SUB FOR TH110116) (MAIN WIRING HARNESS) (ALSO USED FOR GAUGE PANEL)

1шт.

39A

AE23682

GROUND CABLE

(SUB FOR MG635541)

1шт.

AT47069

GROUND CABLE

1шт.

40

19M8451

CAP SCREW

(SUB FOR TH100270)

1шт.

41

AH87806

SWITCH

(SUB FOR 4514468) (ALSO ORDER R44097) (DOME LIGHT)

1шт.

42

12M7006

LOCK WASHER

6 MM, (SUB FOR TH100548)

2шт.

44

24M7027

WASHER

5.300 X 10 X 1 MM, (SUB FOR TH100540)

2шт.

45

12M7064

LOCK WASHER

5 MM, (SUB FOR TH100519)

4шт.

46

14M7272

NUT

2шт.

47

4151076

WIPER MOTOR

(SUB FOR TH102156)

1шт.

48

4101832

ARM

(SUB FOR TH101574) (15 1/2 INCH - 393 MM) (SILVER)

1шт.

4101832

ARM

(SUB FOR TH101574) (SUB FOR TH105993) (BLACK)

1шт.

49

4050479

NUT

(SUB FOR 14M7272) (SUB FOR TH100539)

1шт.

50

TY16304

WIPER BLADE

SUB FOR 4257132 ALONG WITH TY16323 (BLACK)

1шт.

WIPER BLADE

TH101573 NOT AVAILABLE- SUB TY16303 AND TY16323

1шт.

51

94-2817

GROMMET

(SUB FOR TH102171)

1шт.

53

973204

LAMP

(SUB FOR TH100533) (DOME)

1шт.

57M7122

BULB

(SUB FOR TH104100 AND AT42033)

1шт.

54

14M7502

NUT

M14, (SUB FOR TH102154) (SUB FOR 14M7150)

1шт.

55

12H317

LOCK WASHER

9/16", (SUB FOR TH100656)

1шт.

56

BAND

( TH102151 NO LONGER AVAILABLE)

1шт.

57

4396809

CAP

(SUB FOR TH102933)

1шт.

58

4153251

SENDER

(SUB FOR TH102932)

1шт.

59

4158649

PLATE

(SUB FOR TH101577)

1шт.

60

4165905

BUSHING

(SUB FOR TH103497)

1шт.

61

AT71088

RELAY

STARTER SOLENOID RELAY

1шт.

62

AR45925

BATTERY CABLE

1шт.

63

AR46231

CABLE

1шт.

64

AT77187

BATTERY CABLE

1шт.

65

T83427

CONDUIT

1шт.

66

HOUSING

(SUB FOR TH107024) ( AT128419 NO LONGER AVAILABLE)

1шт.

67

TH110115

WIRING HARNESS

MAIN HARNESS TO WIPER MOTOR

1шт.

TH110115

WIRING HARNESS

1шт.

68

WIRING HARNESS

( AT128418 NO LONGER AVAILABLE)

1шт.
