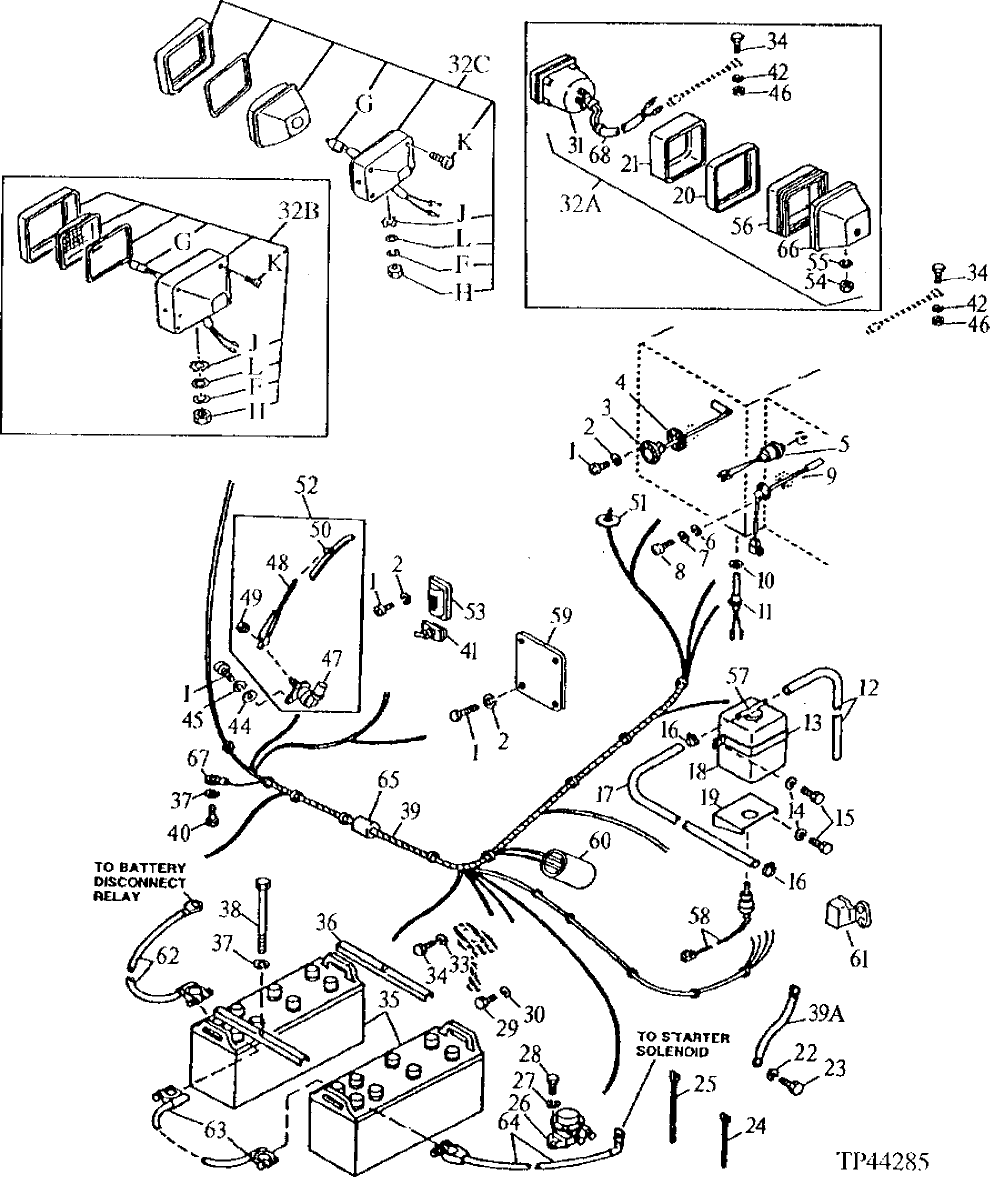

1
21M7278
SCREW
M5 X 10
9шт.
2
12M7064
LOCK WASHER
5 MM, (SUB FOR TH100519)
9шт.
3
4129138
FLOAT
(SUB FOR TH100516) (FUEL GAUGE)
1шт.
4
T211051
GASKET
(SUB FOR U42323)
1шт.
5
4131662
SENDER
(SUB FOR TH102160)
1шт.
6
24M7027
WASHER
5.300 X 10 X 1 MM, (SUB FOR TH100540)
3шт.
7
12M7064
LOCK WASHER
5 MM, (SUB FOR TH100519)
3шт.
8
21M7265
SCREW
M5 X 12
3шт.
9
4151888
SWITCH
(SUB FOR TH102170) HYDRAULIC OIL LEVEL
1шт.
4129942
SWITCH
(SUB FOR TH102934) HYDRAULIC OIL LEVEL
1шт.
10
A890022
WASHER
(SUB FOR TH102169)
1шт.
11
4201927
SWITCH
(SUB FOR TH102168) (SUB FOR TH108582) (LOW FUEL LEVEL)
1шт.
12
HOSE
(MAKE FROM R120653 BULK MATERIAL, CUT TO LENGTH) (SUB FOR R54445 AND R104595)
ARшт.
13
4142783
CLAMP
(SUB FOR TH102163)
1шт.
14
12M7066
LOCK WASHER
10 MM, (SUB FOR TH100417)
4шт.
15
19M3142
CAP SCREW
M10 X 18, (SUB FOR TH102164)
4шт.
16
TY22462
CLAMP
(SUB FOR AR77962 OR TH102166 OR AR48236)
2шт.
17
HOSE
(MAKE FROM R120653 BULK MATERIAL, CUT TO LENGTH) (SUB FOR R54445 AND R104595)
1шт.
18
4130139
TANK
(SUB FOR TH102161)
1шт.
19
3025987
BRACKET
(SUB FOR TH102162)
1шт.
20
HOLDER
( TH102153 NO LONGER AVAILABLE)
1шт.
21
HOLDER
( TH102152 NO LONGER AVAILABLE)
1шт.
22
12M7066
LOCK WASHER
10 MM, (SUB FOR TH100417)
1шт.
23
19M7938
CAP SCREW
M10 X 20
1шт.
24
H77698
TIE BAND
(SUB FOR TH102001 OR M88199)
8шт.
25
H77698
TIE BAND
(SUB FOR T44946)
15шт.
26
4034634
RELAY
BATTERY, (SUB FOR TH100527)
1шт.
27
12M7056
LOCK WASHER
8 MM, (SUB FOR TH100529) (SUB FOR 12M7065)
2шт.
28
19M7932
CAP SCREW
M8 X 16
2шт.
29
21M7246
SCREW
M6 X 16, (SUB FOR TH102157)
2шт.
30
12M7006
LOCK WASHER
6 MM, (SUB FOR TH100548)
2шт.
