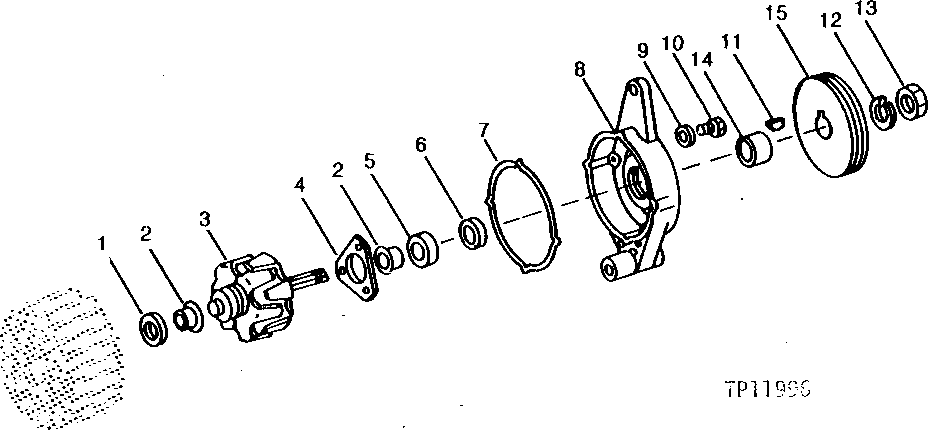

Запчасти John Deere 90 3 - ALTERNATOR, 16-AMPERE 1672 - ELECTRICAL SYSTEMS 16

1

AT23189

BALL BEARING

REAR

1шт.

2

SEAL

( T58482 USE IF AVAILABLE)

2шт.

3

ROTOR

( AT52569 USE IF AVAILABLE)

1шт.

4

RETAINER

( T58479 USE IF AVAILABLE)

1шт.

5

JD9449

BALL BEARING

FRONT

1шт.

6

SEAL

( T58483 USE IF AVAILABLE)

1шт.

7

GASKET

( T25344 USE IF AVAILABLE)

1шт.

8

HOUSING

( T58481 USE IF AVAILABLE)

1шт.

9

12H315

LOCK WASHER

0.164"

3шт.

10

21H1299

SCREW

0.164" X 3/8"

3шт.

11

26H9

SHAFT KEY

1/8" X 5/8"

1шт.

12

12H294

LOCK WASHER

5/8"

1шт.

13

14H866

NUT

5/8"

1шт.

14

BUSHING

( T58480 NO LONGER AVAILABLE) (SUB T39881 IF AVAILABLE)

1шт.

15

T43032

PULLEY

1шт.
