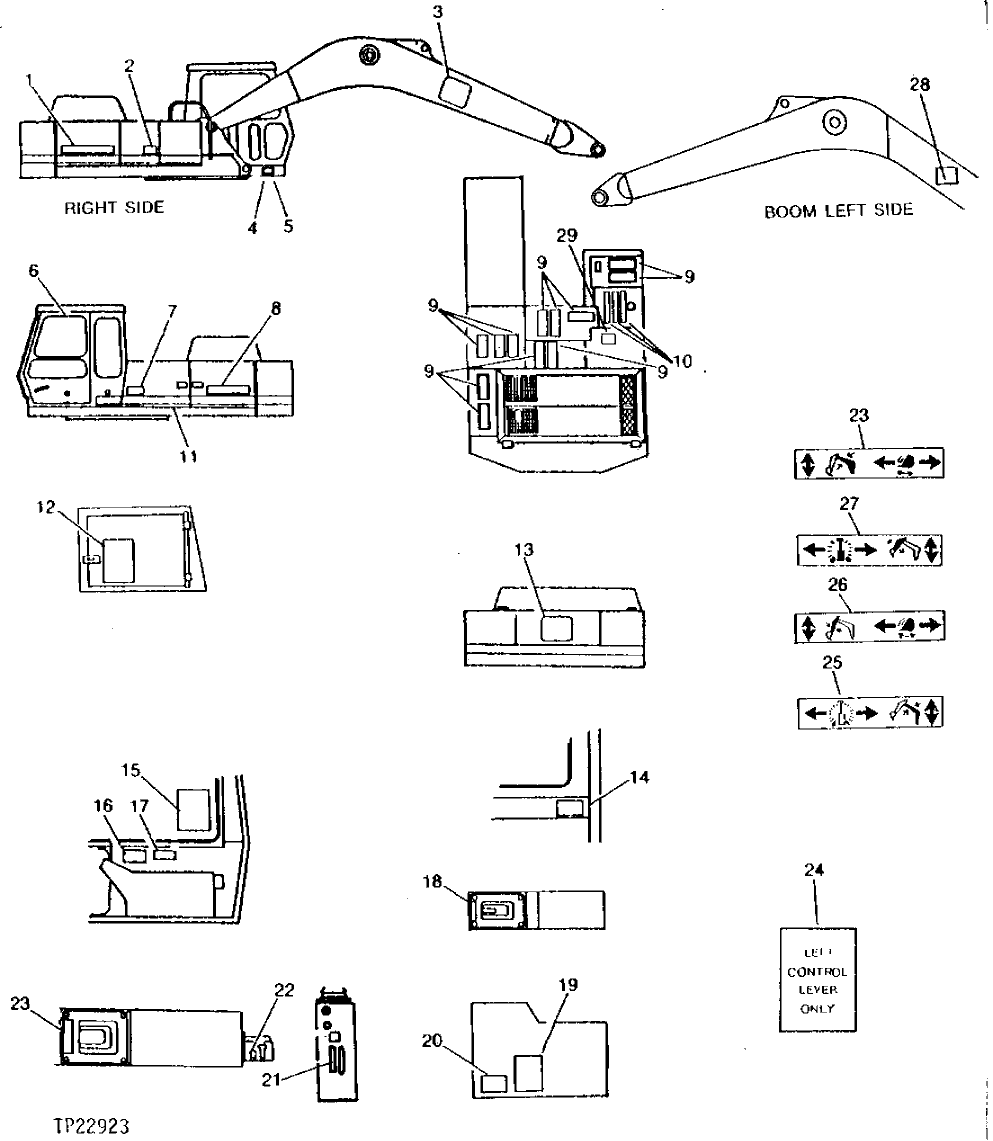

Запчасти John Deere 90 2 - NAME PLATES, DECALS AND LABELS 1320 - MISCELLANEOUS VEHICLE 13

1

JD5614

LABEL

NAME PLATE (NAME OF COMPANY) (SUB FOR TH102510)

1шт.

2

3030956

LABEL

(SUB FOR TH102507) NAME PLATE

2шт.

3030955

LABEL

(SUB FOR TH103273) NAME PLATE

2шт.

3

JD5628

LABEL

NAME PLATE, (SUB FOR TH102506)

1шт.

4

37H131

SCREW

0.140" X 3/8"

2шт.

5

SERIAL NUMBER PLATE

(MACHINE MANUFACTURING NUMBER)

1шт.

6

T119535

LABEL

(SUB FOR TH101411) BUMPER PLATE

4шт.

7

2020454

LABEL

(SUB FOR TH102508) (LONG UNDERCARRIAGE)(790LC)

2шт.

2020455

LABEL

(SUB FOR TH103274) (LONG UNDERCARRIAGE)(792LC)

2шт.

8

JD5614

LABEL

NAME PLATE (NAME OF COMPANY) (SUB FOR TH102510)

1шт.

9

H21259

MAT

(SUB FOR TH102504) ANTI-SKID

ARшт.

10

4143702

TAPE

(SUB FOR TH102505) ANTI-SKID

3шт.

11

T107056

LABEL

(SUB FOR TH103275 OR T79681)

1шт.

12

TH106991

LABEL

(SUB FOR TH102503) PERIODIC MAINTAINANCE

1шт.

2023525

LABEL

(SUB FOR TH106775) PERIODIC MAINTAINANCE

1шт.

13

JD5628

LABEL

NAME PLATE, (SUB FOR TH102506)

2шт.

14

3029370

LABEL

(SUB FOR TH101399) HEATER CAUTION

1шт.

15

T104399

LABEL

LIFT CHART

1шт.

T104400

LABEL

LIFT CHART

1шт.

16

3029373

LABEL

(SUB FOR TH101402) CAUTION

1шт.

17

T35672

LABEL

START AND STOP

2шт.

18

T104400

LABEL

NAME PLATE, LONG ARM (NO LONGER AVAILABLE) (SUB FOR TH103278) (SUB T104400)

1шт.

19

T38438

SAFETY SIGN

SAFETY

1шт.

20

T146667

SAFETY SIGN

(SUB FOR T114392) (DANGER - ELECTROCUTION)

1шт.

21

4149203

LABEL

(SUB FOR TH101569) CONTROL LEVER LOCK

1шт.

22

4146723

LABEL

(SUB FOR TH101412) WATER SHUT-OFF

1шт.

23

TH103404

LABEL

(RIGHT CONTROL LEVER - SAE PATTERN) (WHITE BACKGROUND)

1шт.

24

4167679

LABEL

(SUB FOR TH101701) LEFT CONTROL LEVER ONLY

1шт.

25

T159843

LABEL

(SUB FOR TH101630) (LEFT CONTROL LEVER - JOHN DEERE PATTERN) (YELLOW BACKGROUND)

1шт.

26

T159844

LABEL

(SUB FOR TH103406) (RIGHT CONTROL LEVER - JOHN DEERE PATTERN) (YELLOW BACKGROUND)

1шт.

27

TH103405

LABEL

(LEFT CONTROL LEVER - SAE PATTERN) (WHITE BACKGROUND)

1шт.

28

T107626

SAFETY SIGN

(DANGER)(ON BOOM-TO BE VISIBLE FROM OPERATOR STATION)

1шт.

T107626

SAFETY SIGN

(DANGER)(ON UNITS WITHOUT BOOM, INSTALL LABEL PER DIRECTIONS ON REAR OF LABEL)

1шт.

29

4173122

SAFETY SIGN

(SUB FOR TH103519) PRESSURIZED RESERVOIR

1шт.
