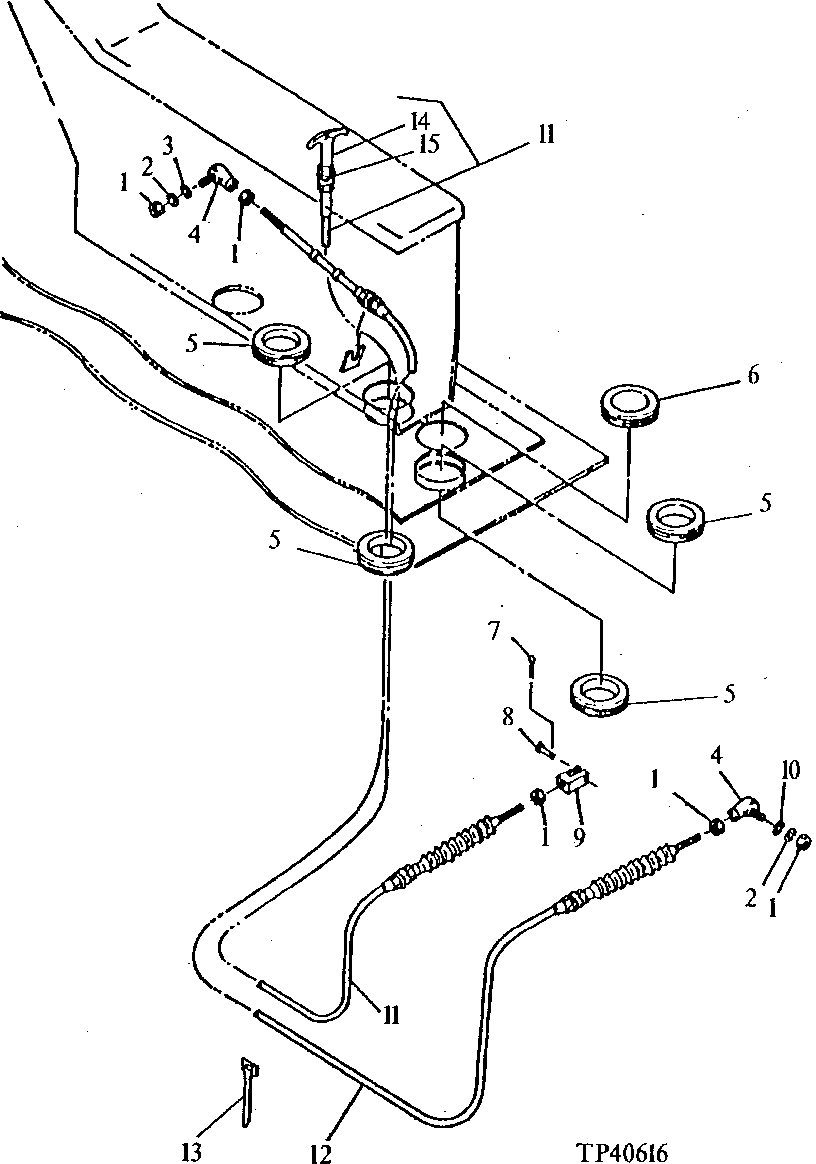

Запчасти John Deere 90 2 - ENGINE THROTTLE AND SHUT-OFF CABLES 515 - ENGINE AUXILIARY SYSTEMS 5

1

14M7297

NUT

5шт.

2

12M7064

LOCK WASHER

5 MM, (SUB FOR TH100519)

2шт.

3

24M7027

WASHER

5.300 X 10 X 1 MM, (SUB FOR TH100540)

1шт.

4

4056016

BALL JOINT

(SUB FOR TH100325)

2шт.

5

4509404

GROMMET

(SUB FOR TH100553)

4шт.

6

4150707

GROMMET

(SUB FOR TH102009)

1шт.

7

11M7005

COTTER PIN

1.600 X 10 MM, (SUB FOR TH102008)

1шт.

8

45M7009

PIN FASTENER

6 X 16 MM, (SUB FOR TH102007)

1шт.

9

4156123

YOKE

(SUB FOR TH102006)

1шт.

10

24M7027

WASHER

5.300 X 10 X 1 MM, (SUB FOR TH100540)

1шт.

11

4284262

CABLE

(SUB FOR TH102005 OR TH111867) (SUB FOR AT131283) SHUT-OFF

1шт.

12

4235424

CABLE

(SUB FOR TH102004) THROTTLE

1шт.

4235471

CABLE

(SUB FOR TH103004) (SUB FOR TH111868) THROTTLE

1шт.

13

H77698

TIE BAND

(SUB FOR T44946)

5шт.

14

T114379

HANDLE

(SUB FOR TH108083) (6 MM THREADS) (FITS 95° OF MACHINES)

1шт.

T114380

HANDLE

(5 MM THREADS) (FITS 5° OF MACHINES)

1шт.

15

4285479

NUT

(SUB FOR AT131285)

1шт.
