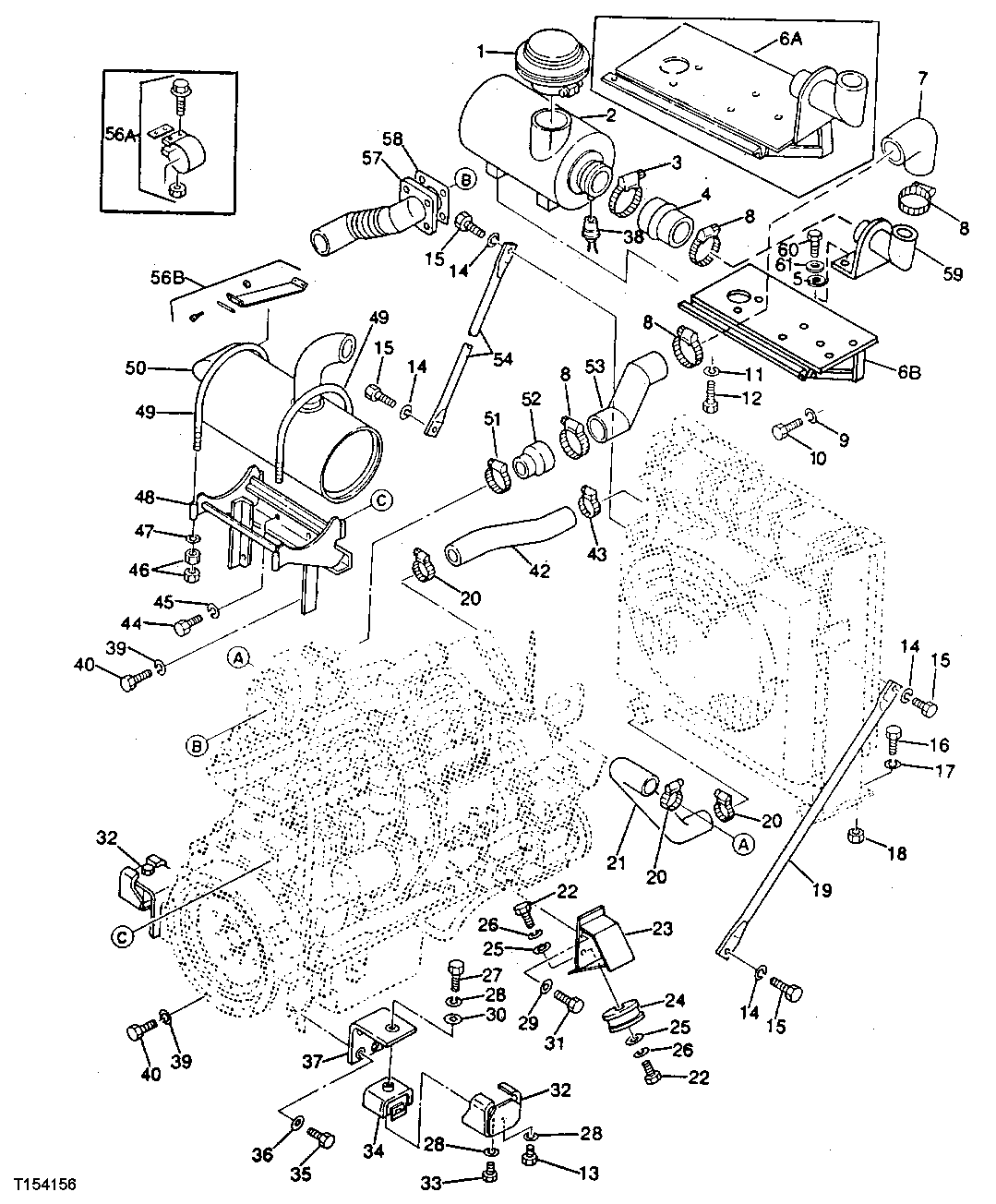

Запчасти John Deere 90 6 - ENGINE AUXILIARY SYSTEMS 510 - ENGINE AUXILIARY SYSTEMS 5

32

8028823

STOP

(SUB FOR TH101752)

2шт.

33

M111650

BOLT

(SUB FOR TH101737)

2шт.

34

3029369

ISOLATOR

(SUB FOR TH101739)

2шт.

35

19H2588

CAP SCREW

5/8" X 1-7/8"

8шт.

36

4114405

WASHER

(SUB FOR TH101105)

8шт.

37

4156119

ANGLE

(SUB FOR TH101736)

2шт.

38

4224238

INDICATOR

(SUB FOR TH100933 OR TH108915) (SUB FOR AT131922)

1шт.

39

12H304

LOCK WASHER

3/8", (SUB FOR TH101070)

10шт.

40

19H3239

CAP SCREW

3/8" X 1-1/4"

2шт.

42

4156129

RADIATOR HOSE

(SUB FOR TH101729)

1шт.

43

TY22472

CLAMP

(SUB FOR AT145651 OR AR21999)

1шт.

44

19H2717

CAP SCREW

3/4" X 1-3/4"

2шт.

45

12H236

LOCK WASHER

3/4", (SUB FOR TH101743)

2шт.

46

14M7274

NUT

M10

8шт.

47

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH100263)

4шт.

48

7013997

BRACKET

(SUB FOR TH101740)

1шт.

49

4149371

U-BOLT

(SUB FOR TH101741)

2шт.

50

MUFFLER

(SUB AT160297) (SUB FOR TH101742 OR TH111420) ( TH112117 NO LONGER AVAILABLE)

1шт.

51

AT37478

HOSE CLAMP

1шт.

52

4127805

SUCTION HOSE

(SUB FOR TH101750)

1шт.

53

9720611

LINE

(SUB FOR TH101754)

1шт.

54

4156121

STOP

(SUB FOR TH101727)

1шт.

4188131

BRACE

(SUB FOR TH106987)

1шт.

56A

AT65079

CLAMP

(SUB FOR TH101745)

1шт.

AT65079

CLAMP

(SUB FOR TH101745)

1шт.

56B

AT65079

CLAMP

(INCLUDES (2) H80440, (2) 19H2503 AND T130341) (SUB FOR TH105674)

1шт.

AT65079

CLAMP

(INCLUDES (2) H80440, (2) 19H2503 AND T130341) (SUB FOR TH105674)

1шт.

57

EXHAUST PIPE

(SUB FOR TH101744) (SUB AT160297) ( TH110143 NO LONGER AVAILABLE)

1шт.

58

T151881

GASKET

(SUB FOR T151881)

1шт.

59

8032945

LINE

(SUB FOR TH103507)

1шт.

8032945

LINE

(SUB FOR TH103507)

1шт.

60

19M7662

CAP SCREW

M10 X 30

2шт.

19M7662

CAP SCREW

M10 X 30

2шт.

61

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

2шт.

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

2шт.
