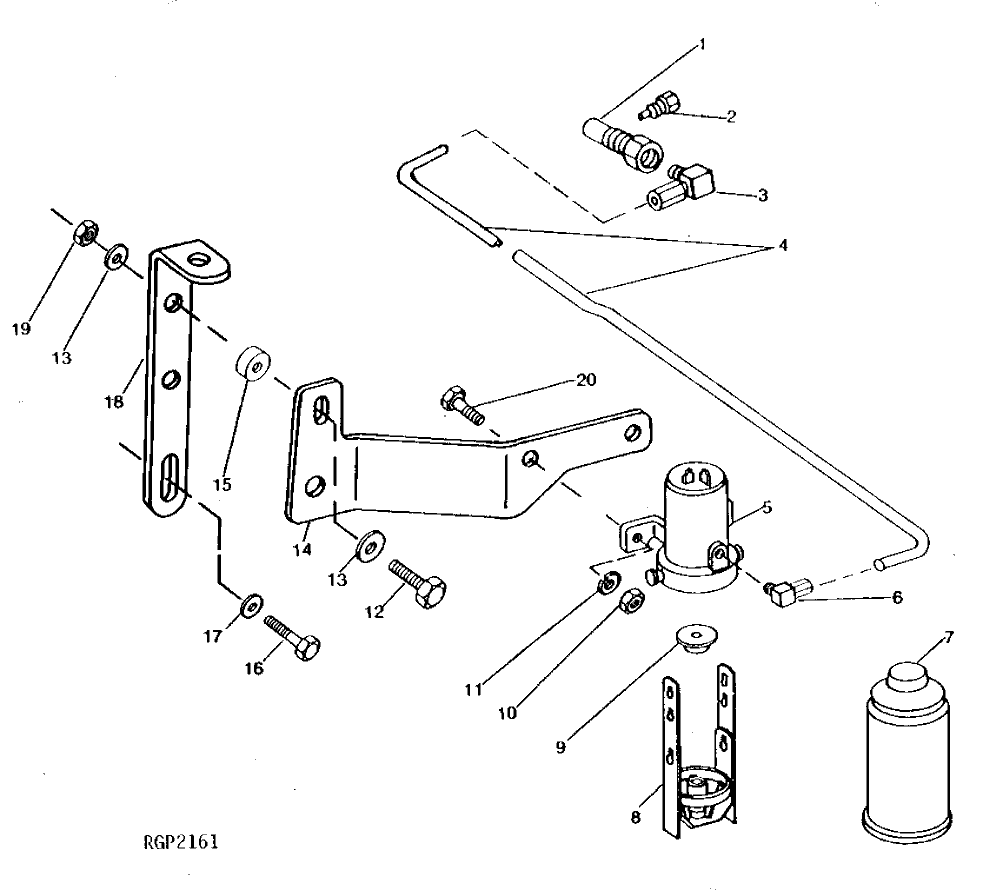

Запчасти John Deere 90 2 - COLD WEATHER STARTING AID 505 - ENGINE AUXILIARY SYSTEMS 5
№
Артикул
Название
Примечание
Количество
1
R43660
PACKING
(USE WITH AR43261, AR98329 OR RE57394)
1шт.
2
AR43634
OIL FILTER
(MARKED AR43261 OR AR43634) (USE WITH R43429)
1шт.
3
R43429
FITTING
(1-1/2 - 16UN) (USE WITH AR43261 OR AR43634)
1шт.
5
R104621
ADAPTER FITTING
(1-1/2 - 12 UNF) (USE WITH AR98329, RE46380 OR RE57394) (SUB FOR R73913)
1шт.
6
15H690
PIPE PLUG
3/4"
2шт.
7
R104592
PIPE PLUG
1шт.
8
R55233
PIPE PLUG
1шт.
9
AR105510
DRAIN PLUG
1шт.
11
AR76582
HOUSING
(MARKED R62110 OR R67409) (SUB RE24706) (ALSO ORDER R84947)
1шт.
AR89499
HOUSING
(MARKED R67409) (SUB RE24706) (ALSO ORDER R84947)
1шт.
AR94084
HOUSING
(MARKED R71484) (SUB RE24706) (ALSO ORDER R84947)
1шт.
RE24706
HOUSING
(MARKED R84946)
1шт.
12
R49464
VALVE
1шт.
13
R26151
SPRING
1шт.
15
34H313
SPRING PIN
1/4" X 1-1/8", (USE WITH R49465)
1шт.
16
R49465
DRAIN PLUG
(SUB FOR R71483) (USE WITH 34H313)
1шт.
17
34H393
PIN FASTENER
7/16" X 1-1/8", (USE WITH R71483)
1шт.
18
R71483
DRAIN PLUG
(SUB R49465) (ALSO ORDER 34H313)
1шт.
19
R86875
FITTING
1шт.
20
19H3483
CAP SCREW
3/8" X 1-1/8"
1шт.
21
12H304
LOCK WASHER
3/8", (NO LONGER REQUIRED)
2шт.
22
R106859
STUD
(SUB FOR F3646R OR R26622, APPL)
1шт.
23
R55395
STUD
1шт.
24
R43774
GASKET
1шт.
25
RE10834
DRAIN PLUG
(SUB FOR R43425)
1шт.
26
R43424
WASHER
1шт.
27
R43548
SPRING
1шт.
28
R43549
WASHER
(SUB FOR U40750)
ARшт.
29
R84947
VALVE
(USE WITH R84946)
1шт.
30
E55662
FLANGE NUT
2шт.
31
R77003
VALVE
(SUB FOR R43428) (USE WITH R62110, R67409 OR R71484)
1шт.
32
OIL FILTER
(MARKED RE46380) (SUB FOR AR101278) (SUB RE57394) (USE WITH R73913 OR R104621)
1шт.
OIL FILTER
(MARKED RE57394) (USE WITH R73913 OR R104621 AND WHEN"REMANUFACTURED S.E NUMBER" HAS BEEN INSTALLED.)
1шт.
Выбрано товаров: 36
