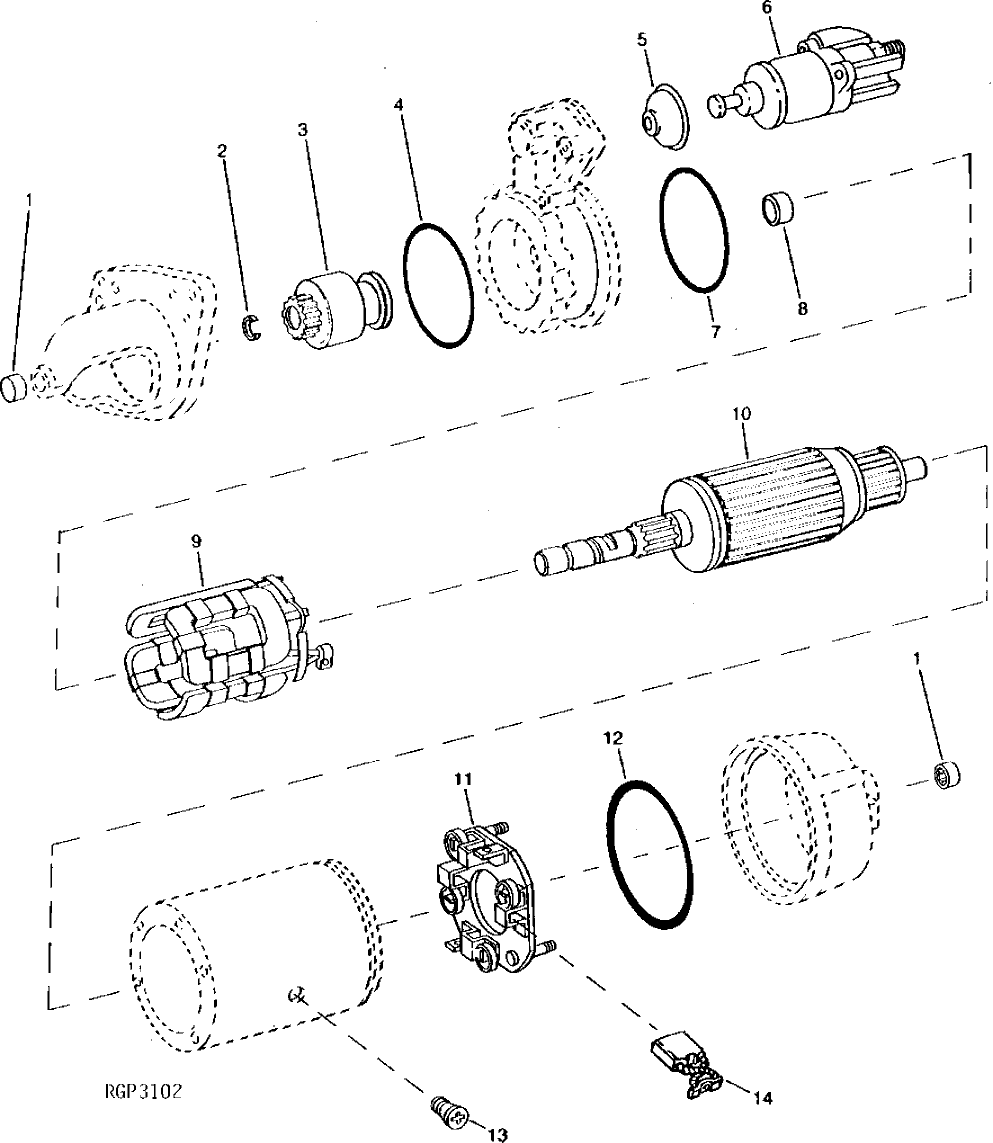

Запчасти John Deere 90 8 - STARTING MOTOR COMPONENTS (24 VOLT 37MT) (DENSO) (ENGINE SERIAL NO. 354707- ) 422 - ENGINE 4

1

RE39251

NEEDLE BEARING

2шт.

2

R50902

SNAP RING

(SUB FOR R100531)

1шт.

3

RE39249

CLUTCH

1шт.

4

R50901

WASHER

(SUB FOR R100510)

1шт.

5

R100513

COVER

1шт.

6

RE45332

SWITCH

1шт.

RE45331

SOLENOID

(INCLUDES MAGNETIC SWITCH, COVER, SAFETY START LABEL AND TIE BANDS) (SUB FOR RE39242)

1шт.

7

R100511

O-RING

1шт.

8

R100509

BUSHING

1шт.

9

RE39244

FIELD WINDING COIL

1шт.

10

ARMATURE

(NLA) (ORDER TY25969)

1шт.

SE501423

STARTER MOTOR

(REMANUFACTURED FOR TY25969)

1шт.

11

RE39250

CARBON BRUSH HOLDER

1шт.

12

R100512

O-RING

1шт.

13

R100508

SCREW

1шт.

14

RE39247

BRUSH

(SUB FOR RE39248)

4шт.
