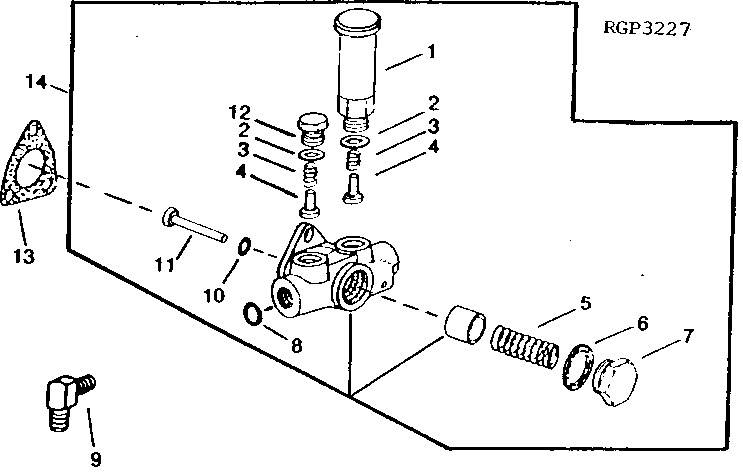

Запчасти John Deere 90 2 - REPLACEMENT FUEL TRANSFER PUMP (ROBERT BOSCH) 421 - ENGINE 4

1

RE65265

HAND PRIMER

(SUB FOR R70135 OR RE48048)

1шт.

2

R54025

WASHER

2шт.

3

R54023

SPRING

2шт.

4

R54022

VALVE

2шт.

5

R75272

SPRING

(SUB FOR R93744)

1шт.

6

R64861

WASHER

1шт.

7

R93745

DRAIN PLUG

1шт.

8

R26448

O-RING

(SUB FOR R78079)

2шт.

9

AR104674

ELBOW FITTING

(INLET)

ARшт.

RE10258

ELBOW FITTING

(OUTLET)

ARшт.

10

R93741

O-RING

1шт.

11

R93742

TAPPET

1шт.

12

R54024

FITTING PLUG

1шт.

13

R67879

GASKET

1шт.

14

RE20042

FUEL PUMP

(SUB FOR AR89956, RE27848 OR RE18708) (ALSO ORDER AR104674 OR RE10258 AS REQUIRED)

1шт.
