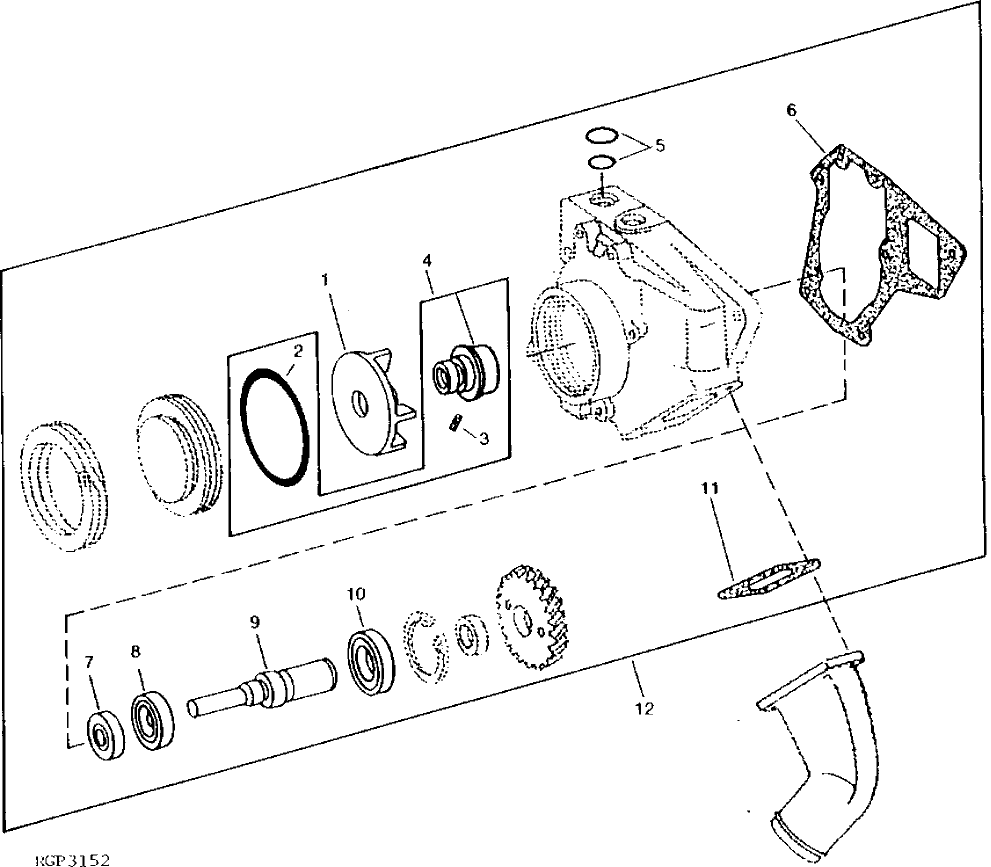

Запчасти John Deere 90 4 - WATER PUMP REPAIR KIT 417 - ENGINE 4

1

R71225

IMPELLER

1шт.

2

R71596

O-RING

1шт.

3

R98527

FILTER

(WEEP HOLE)

1шт.

4

RE69844

KIT

(SUB FOR RE12940, RE24772 OR RE55992)

1шт.

5

R47153

O-RING

2шт.

6

R520580

GASKET

(SUB FOR R71315)

1шт.

7

AR93518

SEAL

(SUB RE39134)

1шт.

RE39134

SEAL

1шт.

8

JD10171

BALL BEARING

(FRONT) (USE WITH R71224)

1шт.

JD10363

BALL BEARING

(FRONT) (USE WITH R83561)

1шт.

9

SHAFT

(W/ R71224 - SUB RE69846)

1шт.

SHAFT

(W/ R83561 - SUB RE69847)

1шт.

10

JD10113

BALL BEARING

(REAR) (USE WITH R71224)

1шт.

JD10362

BALL BEARING

(REAR) (USE WITH R83561)

1шт.

11

R71361

GASKET

1шт.

12

RE55993

KIT

(USE WITH R71224) (SUB FOR RE13031, RE24773 OR RG19280) (SUB RE69846)

1шт.

RE69846

KIT

(USE WITH R71224)

1шт.

RE55994

KIT

(USE WITH R83561) (SUB FOR RE23295 OR RG19279) (SUB RE69847)

1шт.

RE69847

KIT

(USE WITH R83561)

1шт.
