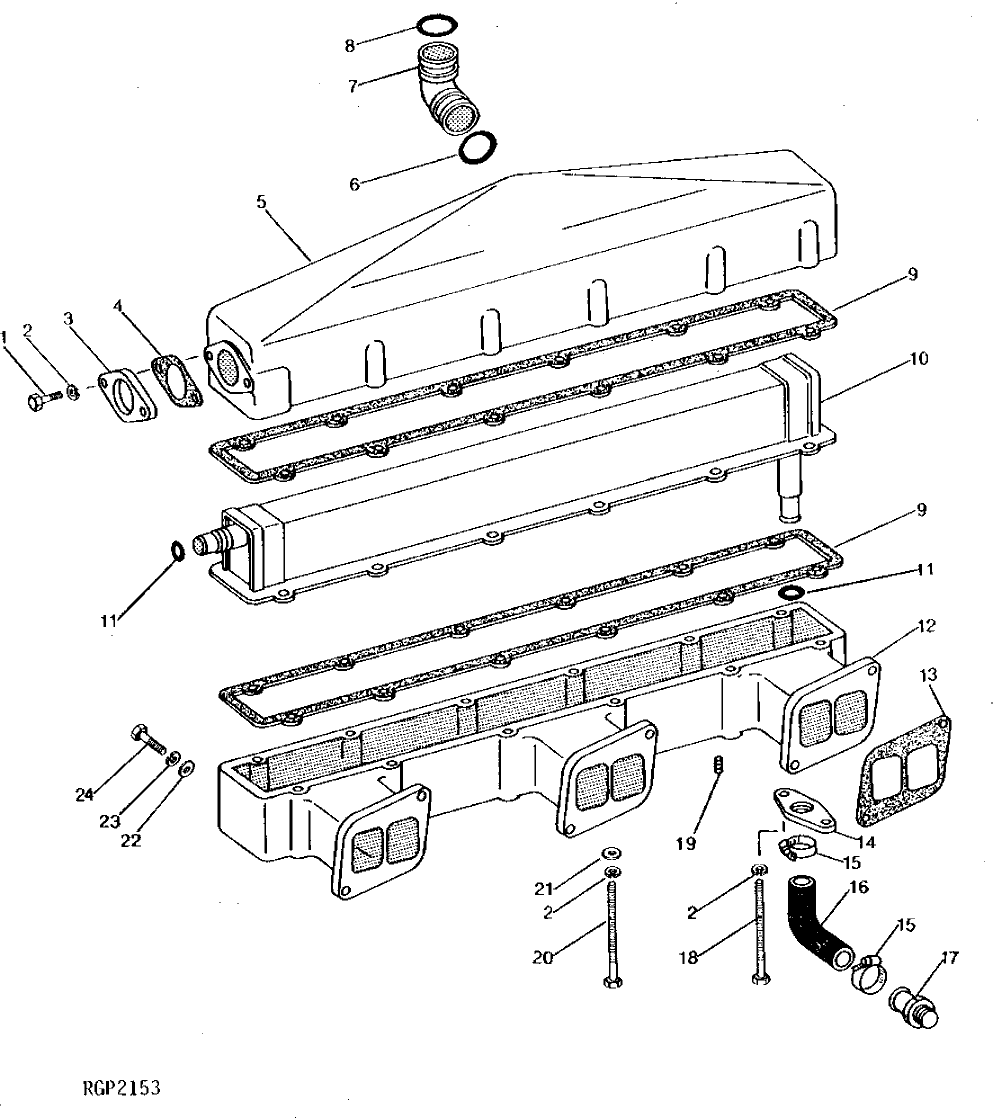

Запчасти John Deere 90 2 - AFTERCOOLER AND INTAKE MANIFOLD 414 - ENGINE 4

1

19H2661

CAP SCREW

5/16" X 1-3/8"

2шт.

2

12H303

LOCK WASHER

5/16"

12шт.

24H1136

WASHER

11/32" X 11/16" X 0.065", (REAR ADAPTOR TO COVER)

2шт.

3

R47314

ADAPTER FITTING

(REAR)

1шт.

4

R97346

GASKET

(SUB FOR R47395)

1шт.

5

R69940

COVER

1шт.

6

R50405

O-RING

1шт.

7

R69941

COUPLING

(SUB FOR R91415) (SUB R94428)

1шт.

R94428

COUPLING

1шт.

8

R50406

O-RING

1шт.

9

R97347

GASKET

(SUB FOR R50399)

2шт.

10

AR70437

INTERCOOLER

(SUB RE40280)

1шт.

RE40280

INTERCOOLER

1шт.

11

R52811

O-RING

2шт.

12

R59747

INTAKE MANIFOLD

(SUB FOR R50396) (SUB R134432 AND (3) R130573) (AS SHOWN)

1шт.

R134432

INTAKE MANIFOLD

(NOT AS SHOWN)

1шт.

13

R50397

GASKET

(USE WITH R59747) (AS SHOWN)

3шт.

R130573

GASKET

(USE WITH R134432) (NOT AS SHOWN)

3шт.

14

R50400

ADAPTER FITTING

(BOTTOM)

1шт.

15

TY22467

CLAMP

(SUB FOR AR21839)

2шт.

16

R50402

RADIATOR HOSE

1шт.

17

R48362

ADAPTER FITTING

1шт.

18

19H2729

CAP SCREW

5/16" X 4-1/4"

2шт.

19

15H666

PIPE PLUG

3/8"

1шт.

20

19H2852

CAP SCREW

5/16" X 4"

10шт.

21

24H1136

WASHER

11/32" X 11/16" X 0.065"

10шт.

22

24M7096

WASHER

10.500 X 18 X 1.600 MM

6шт.

23

12H304

LOCK WASHER

3/8"

6шт.

24

19H1732

CAP SCREW

3/8" X 1-1/4"

6шт.
