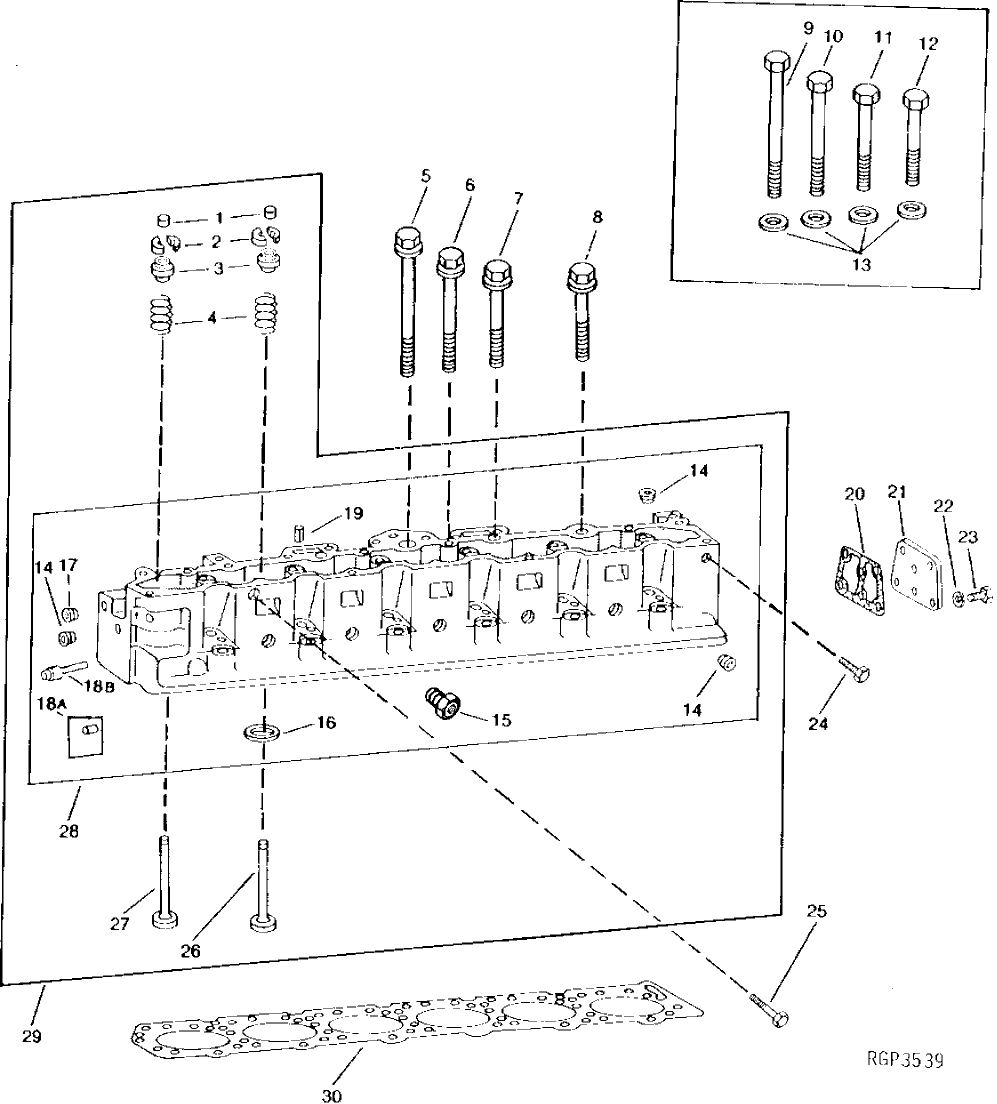

Запчасти John Deere 90 2 - CYLINDER HEAD AND VALVES 409 - ENGINE 4

1

T20129

CAP

12шт.

2

T20077

RETAINER

24шт.

3

RE11410

ROTATOR

(SUB FOR AR41006)

12шт.

4

R26125

SPRING

12шт.

5

R88045

CAP SCREW

(A) (9/16" X 7.4") (SUB FOR R62420)

7шт.

R121322

SCREW

(B) (MARKED "SPECIAL") (9/16" X 7.4")

7шт.

6

R88044

CAP SCREW

(A) (9/16" X 6.3") (SUB FOR R62419)

8шт.

R121321

SCREW

(B) (MARKED "SPECIAL") (9/16" X 6.3")

8шт.

7

R88043

CAP SCREW

(A) (9/16" X 5.3") (USE WITH R71688, R71685 OR R80481) (SUB FOR R62418)

5шт.

R88043

CAP SCREW

(A) (9/16" X 5.3") (USE WITH R87555, R87556 OR R87564) (SUB FOR R62418)

11шт.

R121320

CAP SCREW

(B) (MARKED "SPECIAL") (9/16" X 5.3")

11шт.

8

R88042

CAP SCREW

(A) (USE WITH R71688, R71685 OR R80481) (SUB FOR R62421)

6шт.

9

R62420

SCREW

(A) (9/16" X 7.4") (SUB R88045)

7шт.

10

R62419

SCREW

(A) (9/16" X 6.3") (SUB R88044)

8шт.

11

R62418

SCREW

(A) (9/16" X 5.3") (USE WITH R71688, R71685, R80481, R71732, R65693, R74352, R62907, R71689, R64530, R63198 OR R78505) (SUB R88043)

5шт.

R62418

SCREW

(A) (9/16" X 5.3") (USE WITH R87556, R87555 OR R87554) (SUB R88043)

11шт.

12

R62421

SCREW

(A) (9/16" X 3.3") (USE WITH R71688, R71685, R80481, R71732, R65693, R74352, R62907, R71689, R64530, R63198 OR R78505) (SUB R88042)

6шт.

13

R76126

WASHER

(A) 14.681 X 25.400 X 2.667 MM (37/64" X 1" X 0.105") (SUB FOR R42364) (USE WITH R62418, R62419, R62420 OR R62421 ONLY)

26шт.

14

15H690

PIPE PLUG

3/4", (SUB FOR AR72318)

11шт.

15

R76491

PIPE PLUG

(SUB FOR RE10132) (USE WITH R76384 OR R86696)

1шт.

16

R78702

VALVE SEAT INSERT

STD (SUB FOR R50356, APPL)

12шт.

R82508

VALVE SEAT INSERT

0.25 MM (.010") OS (SUB FOR R55061, APPL)

12шт.

17

RE57836

PIPE PLUG

1/2", (SUB FOR AR72319 OR 15H624)

6шт.

18A

F1743R

DOWEL PIN

1шт.

18B

AT107509

PLUG

1шт.

19

34H387

SPRING PIN

3/16" X 3/4"

1шт.

20

R43595

GASKET

1шт.

21

R51347

COVER

1шт.

22

12H331

LOCK WASHER

3/8"

6шт.

23

19H2284

CAP SCREW

3/8" X 7/8"

6шт.

24

19H1756

CAP SCREW

5/8" X 1-1/2", (SUB FOR R45692, APPL) (JD743, 762A, 743A, 690C, 693C, 762B)

2шт.

25

19H2367

CAP SCREW

5/8" X 3/4"

1шт.

26

R50357

EXHAUST VALVE

STD

6шт.

RG24025

KIT

(B) (CONTAINS (26) "SPECIAL" HEAD BOLTS)

1шт.

R55056

EXHAUST VALVE

0.08 MM (.003") OS

6шт.

R55058

EXHAUST VALVE

0.38 MM (.015") OS

6шт.

R55060

EXHAUST VALVE

0.76 MM (.030") OS

6шт.

27

R50358

INTAKE VALVE

STD

6шт.

R55055

INTAKE VALVE

0.08 MM (.003") OS

6шт.

R55057

INTAKE VALVE

0.38 MM (.015") OS

6шт.

R55059

INTAKE VALVE

0.76 MM (.030") OS

6шт.

28

AR103505

CYLINDER HEAD

(MARKED R61521, R76384 OR R86696) (SUB FOR AR81615)

1шт.

29

RE11470

CYLINDER HEAD

1шт.

30

RE47336

ENGINE CYLINDER HEAD GASKET

(SUB FOR R55182, RE34010 OR R80026)

1шт.

DOWEL PIN

(R20423 - NO LONGER USED)

NAшт.

RG24025

KIT

(CONTAINS (26) "SPECIAL" HEAD BOLTS)

1шт.
