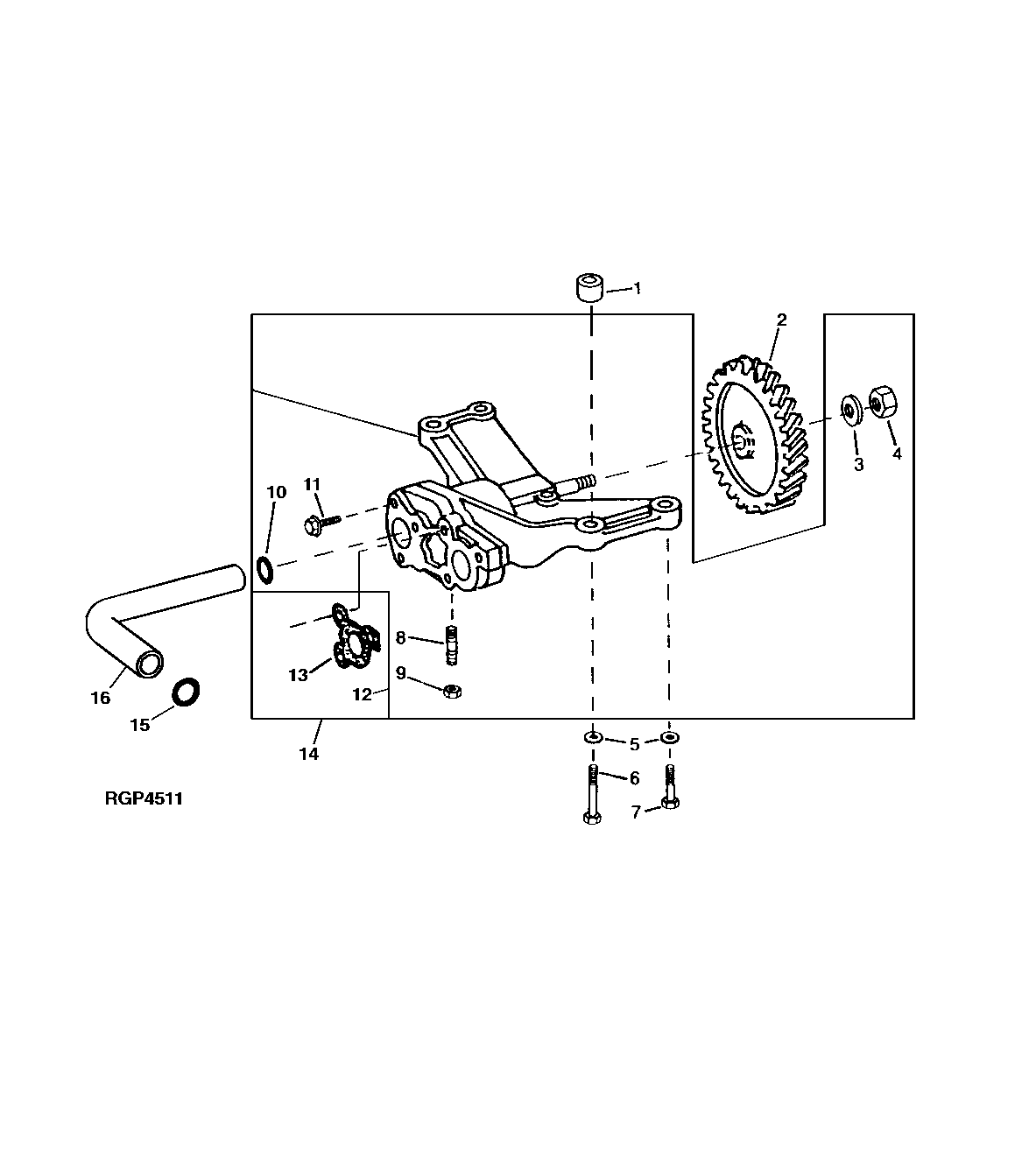

Запчасти John Deere 90 12 - REPLACEMENT OIL PUMP 407 - ENGINE 4

1

R500642

BUSHING

(SUB FOR R62930, THIS APPLICATION)

2шт.

2

R62938

GEAR

1шт.

3

T21242

WASHER

1шт.

4

14H826

NUT

1/2"

1шт.

5

R57696

WASHER

4шт.

6

19H2549

CAP SCREW

3/8" X 1-7/8"

2шт.

7

19H3219

CAP SCREW

3/8" X 1-3/8"

2шт.

8

22H1040

SET SCREW

5/16" X 1-1/4"

1шт.

9

14H785

NUT

5/16"

1шт.

10

R71732

O-RING

1шт.

11

R104628

SCREW

2шт.

R104628

SCREW

(INTAKE COVER TO HOUSING)

3шт.

12

RE44118

OIL PUMP

(A) (MARKED R62946) (SUB FOR AR99344 OR AR96193, APPL) (USED W/ RE60819 OR RE60546) (SUB RE60622)

1шт.

13

R100569

GASKET

1шт.

14

RE60622

OIL PUMP

(MARKED R124328)

1шт.

15

R71732

O-RING

1шт.

16

R62952

OIL TUBE

1шт.
