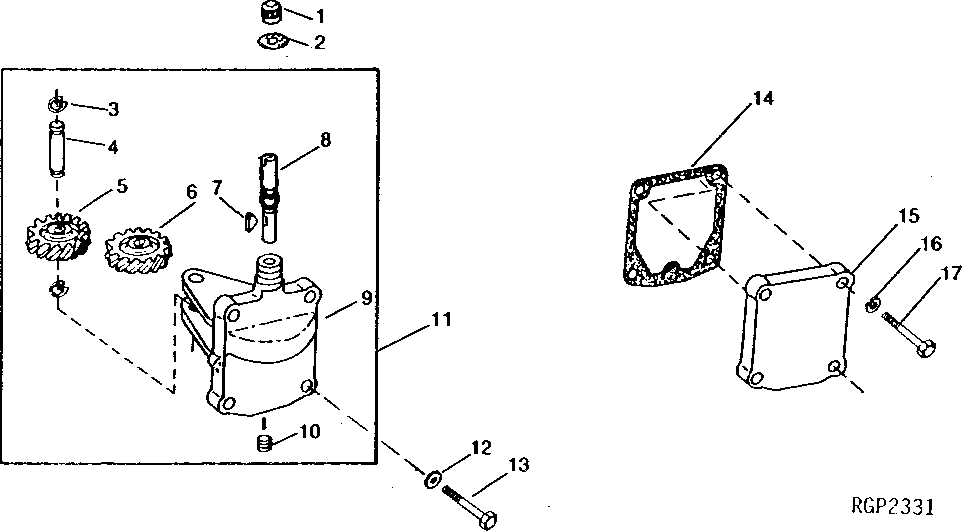

Запчасти John Deere 90 11 - TACHOMETER DRIVE 404 - ENGINE 4

1

B3362R

CAP

NAшт.

2

B3285R

WASHER

NAшт.

3

R72655

SNAP RING

(SUB FOR T12808)

NAшт.

4

R63287

GROOVE PIN

NAшт.

5

R89785

GEAR

(SUB FOR R63286)

NAшт.

6

R32426

GEAR

NAшт.

7

26H3

SHAFT KEY

3/32" X 3/8"

NAшт.

8

R26172

SHAFT

NAшт.

9

R63285

HOUSING

NAшт.

10

15H559

PIPE PLUG

1/4"

NAшт.

11

RE29234

HOUSING

(SUB FOR AR80682)

NAшт.

12

24M7096

WASHER

10.500 X 18 X 1.600 MM

NAшт.

13

19H1732

CAP SCREW

3/8" X 1-1/4"

NAшт.

14

R62410

GASKET

1шт.

15

R69135

COVER

1шт.

16

12H304

LOCK WASHER

3/8", (NO LONGER REQUIRED)

4шт.

17

19H1936

CAP SCREW

3/8" X 3/4"

4шт.
